Find Light Bars & Off-Road Lighting for your Ram 3500

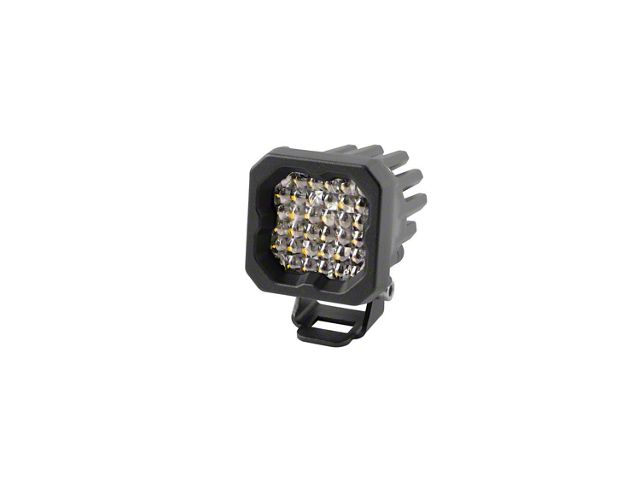

Diode Dynamics Stage Series C1R Standard LED Pod Light; White Flood (Universal; Some Adaptation May Be Required)
Item SHR23798
Our Price
$159.95
Military, Medical & First Responders
$8.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact, Single-LED Form Factor _x000D_
- Triple Function: High-Power White Main Beam, High-Power Red Main Beam, And Low-Power Red Accent Light _x000D_
- Pin-Fin Heatsink Design For Superior Thermal Dissipation _x000D_
- Integrated Deutsch-Style Connector _x000D_
- Designed, Torture-Tested, And Assembled In USA _x000D_
- Custom-Engineered TIR Optics For Efficient Light Direction _x000D_
- Flood Pattern Provides Uniform, Even Illumination With 50x50 Degree Spread _x000D_
- Standard Or Flush-Mount Configurations With GoPro-Style Compatibility _x000D_
- Interchangeable Lenses Available For Color And Beam Pattern Changes _x000D_
- 4-Pin 6-Inch Pigtail Wiring With Color-Coded Functions _x000D_
- Tested For Operation From -40°F To 185°F, Vibration, Moisture, And Corrosion Resistance _x000D_
- Snap-On Covers Offered For Protection And Cleanliness _x000D_
- Raw Lumens: 1450 lm _x000D_
- Color Temperature: 6000K _x000D_
- Power Consumption: 15 Watts _x000D_
- Operating Voltage Range: 9-16V _x000D_
- Polarity Specific Wiring _x000D_
- Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket _x000D_
- Passive Cooling Via Pin-Fin Heatsink _x000D_
- Compliance With SAE J575 Durability Test _x000D_
- IP69K Waterproof Rating _x000D_
- Unit Weight: 0.175 lb _x000D_
- Product Weight: 0.325 lb _x000D_
- Shipped Weight: 0.4 lb _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Square |
| Light Size | 3 to 3.75 Inch |
Description
Compact Versatile Lighting. The Diode Dynamics Stage Series C1R Standard LED Pod Light; White Flood delivers efficient, triple-function lighting in an ultra-compact package. Designed for use on various vehicles, it provides high-power white and red beams along with a low-power red accent light, offering options for reverse lighting, brake indication, and running light functions.
_x000D__x000D_Construction and Appearance. This LED pod is constructed with a durable polycarbonate lens and an aluminum casting housing, featuring a pin-fin heatsink for optimal thermal management. The integrated Deutsch-style connector ensures secure wiring, while the design is built to endure harsh environmental conditions with an IP69K waterproof rating and compliance with SAE J575 durability tests.
_x000D__x000D_Installation. Installation is straightforward and typically requires only basic tools, with no extensive drilling needed for most mounting options. Its compact size and multiple mounting brackets allow flexible placement on vehicles.
_x000D__x000D_Warranty. The product is backed by a limited lifetime warranty, ensuring long-term reliability and support.
_x000D__x000D_Application. Fits universally; some adaptation may be required for specific vehicle installations.
Diode Dynamics DD7423S
