Find Light Bars & Off-Road Lighting for your Ram 3500

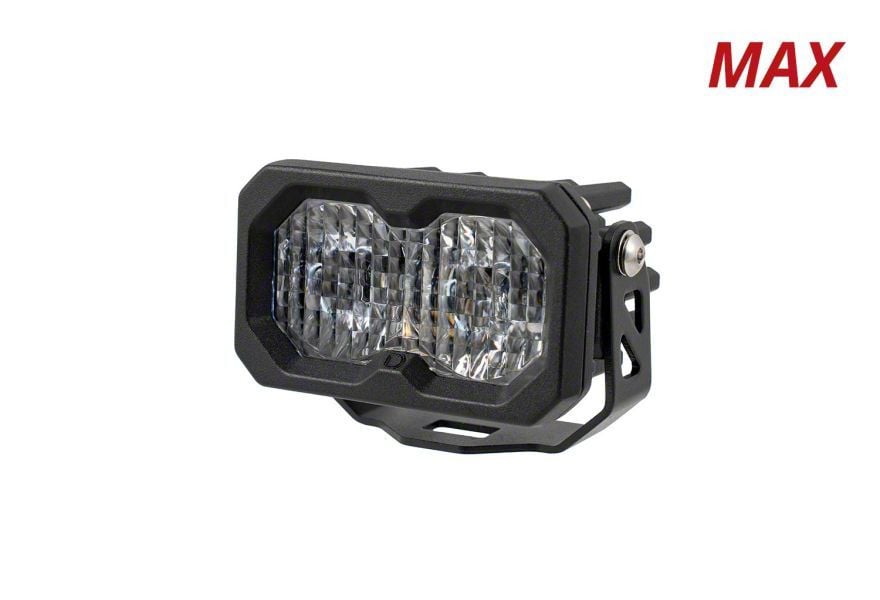

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Red Backlight; White Combo/Driving (Universal; Some Adaptation May Be Required)

Item SHR63347
Product Image
Our Price

$239.95

Military, Medical & First Responders $12.00 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Ultra-Compact Design For Tight Mounting Spots
        • _x000D_
      • Patented TIR Optics For Maximum Output
        • _x000D_
      • Up To 95% More Power Than C2 1.0
        • _x000D_
      • Available In Sport, Pro, And New 3900-Lumen Max Power Levels
        • _x000D_
      • Customizable Mounting To Dial In Your Setup
        • _x000D_
      • Link Multiple Pods With CrossLink Technology
        • _x000D_
      • Limited Lifetime Warranty
        • _x000D_
      • Made In USA With Global Materials
        • _x000D_
      • Peak Beam Intensity Ranges From 750 Cd To 175,000 Cd Depending On Optic And Power Level
        • _x000D_
      • Raw Lumens Up To 3,960 Lm
        • _x000D_
      • Output Color Is 6000K White
        • _x000D_
      • Power Consumption Is 30 Watts For Main Beam And 0.38 Watts For Backlight
        • _x000D_
      • Operating Voltage From 9-30V
        • _x000D_
      • Operating Temperature From -40C To 85C (-40F To 185F)
        • _x000D_
      • LED Emitter Osram Boost HX
        • _x000D_
      • Connector Deutsch DT Input
        • _x000D_
      • Passive Cooling With Pin-Fin Heatsink
        • _x000D_
      • IP69K Waterproof Rating For High Pressure And Intrusion Protection
        • _x000D_
      • Product Dimensions Are 2 X 3.3 X 2.4 Inches
        • _x000D_
      • Unit Weight Is 0.55 Lb; Product Weight Is 1.4 Lb
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      Advanced LED Lighting. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Red Backlight; White Combo/Driving delivers powerful, focused illumination for tight mounting locations on vehicles. Designed to enhance visibility and safety in various driving and off-road conditions, it provides high-performance light output with a sleek, compact profile.

      _x000D__x000D_

      Construction and Appearance. This LED pod features a durable powder-coated aluminum housing with a polycarbonate lens and rubber gasket for weather resistance. It employs a copper-core circuit board bonded directly to Osram HX Boost LEDs to optimize thermal management, finished in a sleek black texture to complement automotive styling.

      _x000D__x000D_

      Installation. Installation generally requires basic tools and can be completed in 30 to 60 minutes. The pod mounts with adjustable brackets permitting height and angle customization without the necessity for drilling in many applications.

      _x000D__x000D_

      Warranty. The product includes a limited lifetime warranty ensuring coverage against manufacturing defects and performance issues.

      _x000D__x000D_

      Application. Fits universal applications, although some adaptation may be required based on specific vehicle mounting configurations.

      Diode Dynamics DD8113S

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
