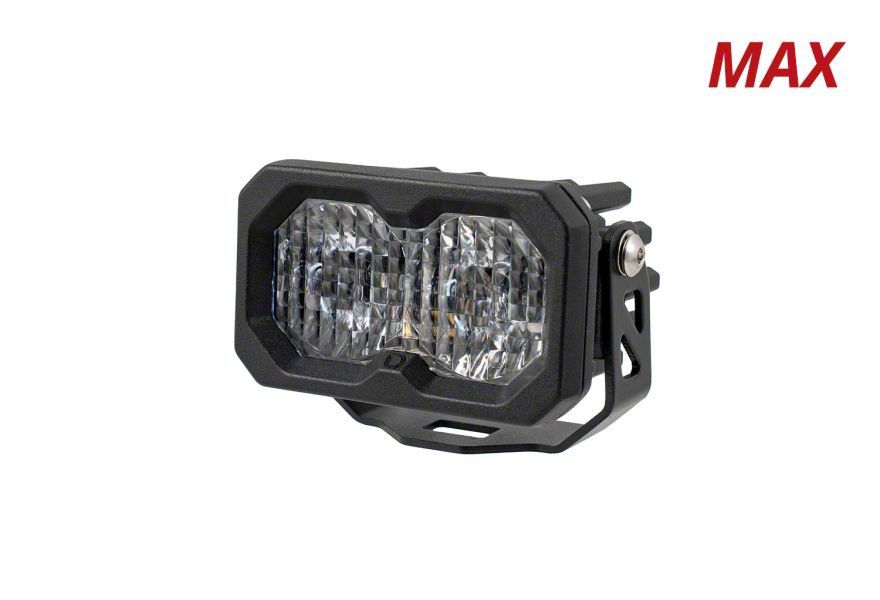

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; White SAE Driving (Universal; Some Adaptation May Be Required)

Item SHR63389
Our Price

$239.95

Military, Medical & First Responders $12.00 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Ultra-Compact Design for Tight Mounting Spots
      • _x000D_
      • Patented TIR Optics for Maximum Output
      • _x000D_
      • Up to 95% More Power than C2 1.0
      • _x000D_
      • Available in Sport, Pro, and 3900-Lumen Max Power Levels
      • _x000D_
      • Customizable Mounting to Dial in Your Setup
      • _x000D_
      • Link Multiple Pods with CrossLink Technology
      • _x000D_
      • Limited Lifetime Warranty
      • _x000D_
      • Made in USA with Global Materials
      • _x000D_
      • Backlight Functionality with Distinctive Red or Amber Options
      • _x000D_
      • Three Adjustable Mounting Points for Height and Angle
      • _x000D_
      • Swappable Optics and Colors Using the Same High-Output Cool White LED Chips
      • _x000D_
      • Snap-On Lens Covers for Protection and Customization
      • _x000D_
      • Strong Thermal Management with Copper-Core Circuit Board and Powdercoated Aluminum Housing
      • _x000D_
      • High-Intensity Automotive-Grade LED Emitters
      • _x000D_
      • Compliant with SAE J575 Durability Test and IP69K Waterproof Rating
      • _x000D_
      • Operating Voltage Range of 9-30V
      • _x000D_
      • Operating Temperature Range from -40°C to 85°C (-40°F to 185°F)
      • _x000D_
      • Dimensions: 2 x 3.3 x 2.4 Inches; Weight: 0.55 Pounds
      • _x000D_
      • Universal Fitment; Some Adaptation May Be Required
      • _x000D_

      Description

      HIGH-PERFORMANCE LED POD. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight and White SAE Driving is engineered to deliver intense, focused automotive lighting in a compact form factor. It offers powerful illumination for driving, off-road, or utility applications where high visibility and precise beam control are critical. The backlight feature provides distinct style and enhanced safety by fully illuminating the optic with amber or red accents.

      _x000D__x000D_

      CONSTRUCTION AND APPEARANCE. This LED pod is built with a rugged aluminum housing finished with a durable powdercoat for improved heat dissipation. The polycarbonate lens incorporates patented TIR optics for accurate light output with minimal glare. Internally, a copper-core circuit board is bonded to Osram Boost HX LED chips to optimize thermal management and maximize performance. Rubber gaskets ensure waterproof sealing with an IP69K rating.

      _x000D__x000D_

      INSTALLATION. Installation is straightforward using the supplied mounting brackets that provide adjustable height and angle settings. Basic hand tools are sufficient, and no drilling is typically required, allowing for quick and flexible setup to suit a variety of mounting locations.

      _x000D__x000D_

      WARRANTY. This product is supported by a limited lifetime warranty, ensuring reliable long-term performance and customer support.

      _x000D__x000D_

      APPLICATION. Designed for universal fitment, this LED pod can be adapted to fit numerous vehicles and mounting situations. Some adaptation or modification may be needed depending on the specific application or mounting constraints.
