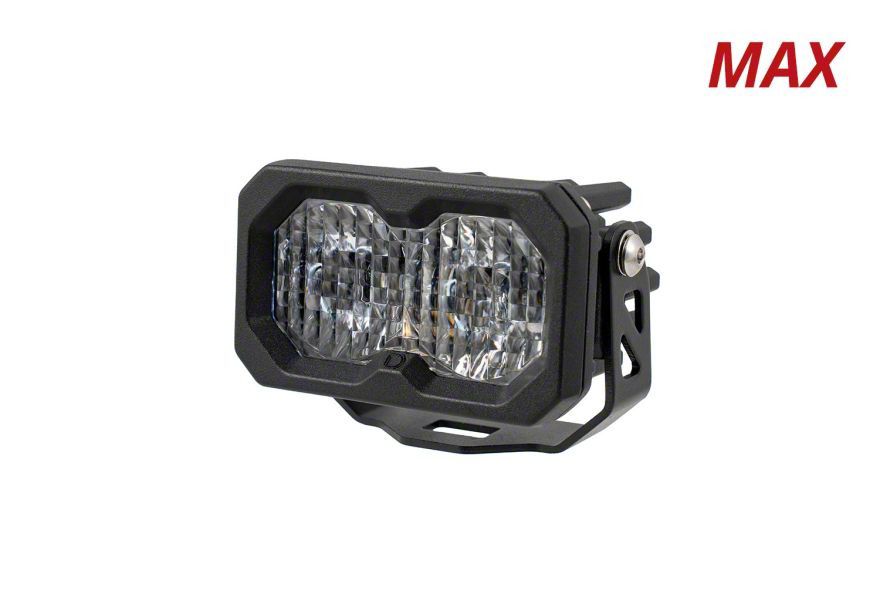

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; White Flood (Universal; Some Adaptation May Be Required)

Item SHR63351
Product Image
Our Price

$239.95

Military, Medical & First Responders $12.00 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

      • Ultra-Compact Design For Tight Mounting Spots
      • Patented Total Internal Reflection Optics For Maximum Output
      • Up To Ninety-Five Percent More Power Than Previous Version
      • Available In Sport, Pro, And Max Power Levels
      • Customizable Mounting For Precise Setup
      • Allows Linking Multiple Pods With CrossLink Technology
      • Limited Lifetime Warranty Included
      • Made In USA With Global Materials
      • Provides Distinctive Backlight Feature With Choice Of Red Or Amber
      • Red Backlight Enhances Rear Visibility; Amber Suitable For Forward Marking
      • Options Of Multiple Beam Patterns Including Spot, Flood, Driving, And Fog/Wide
      • High-Intensity Automotive-Grade Osram Boost HX LED Emitters
      • Advanced Copper-Core Circuit Board For Improved Thermal Efficiency
      • Powder-Coated Aluminum Housing For Enhanced Heat Dissipation
      • SAE Driving Pattern Compliant With SAE J581 High Beam Standard
      • SAE Fog/Wide Pattern Compliant With SAE J583 Foglamp Standard
      • Switchable Lenses For Different Lighting Applications
      • CrossLink Mounting System Allows Custom Lightbar Configurations
      • Tight 2 Inch Footprint Suitable For Roof Racks, Roll Bars, Bumpers, And A-Pillars
      • Passive Cooling Via Pin-Fin Heatsink
      • Waterproof And Durable With IP69K And SAE J575 Ratings
      • Connects With Deutsch DT Input Connector
      • Voltage Range 9 To 30 Volts
      • Operates In Temperatures From -40° To 85° Celsius
      • Compact Dimensions Approximately 2 X 3.3 X 2.4 Inches
      • Weight Approximately 0.55 Pounds Per Unit
      • Fits Universal; Some Adaptation May Be Required

      Description

      High Performance Lighting. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight and White Flood is an ultra-compact, high-intensity lighting pod designed to provide superior illumination in tight mounting spaces. It delivers a powerful 3900 raw lumen output with versatile beam patterns, making it ideal for both on-road and off-road automotive applications.

      Construction and Appearance. This LED pod features a sturdy powder-coated aluminum housing paired with a thermally efficient copper-core circuit board for effective heat dissipation. The durable polycarbonate lens and rubber gasket ensure waterproof protection, while the amber backlight fully illuminates the optic, creating a distinctive and modern aesthetic.

      Installation. Installation typically takes 30 to 60 minutes using only a basic toolset. The mounting bracket allows for precise angle and height adjustments, and drilling is generally not required unless customizing the mounting location.

      Warranty. This product comes with a limited lifetime warranty to guarantee long-term reliability and performance.

      Application. Designed for universal fit; some adaptation may be necessary for specific vehicle installations.

      Diode Dynamics DD8115S
