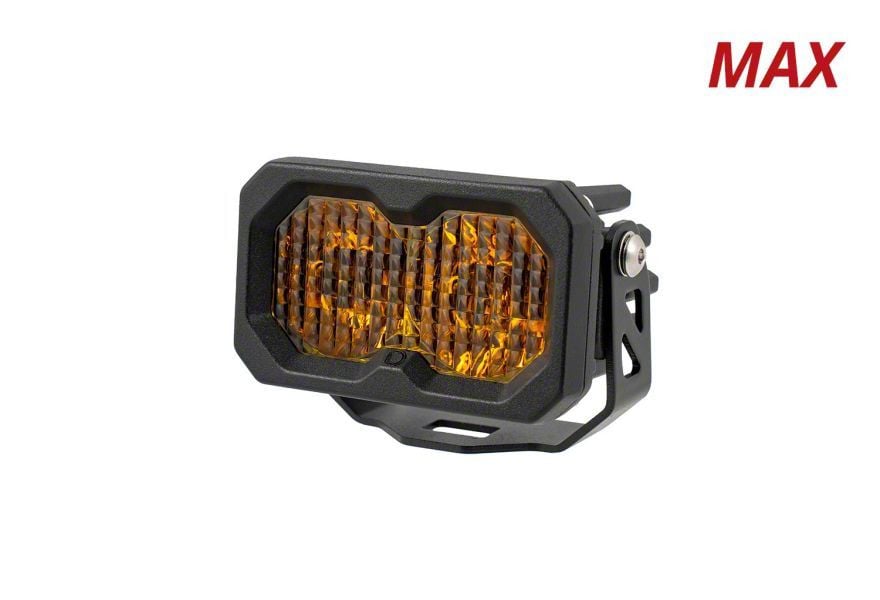

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; Yellow SAE Fog/Wide (Universal; Some Adaptation May Be Required)
Item SHR63387
Our Price
$239.95
Military, Medical & First Responders
$12.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design for Tight Mounting Spots _x000D_
- Patented TIR Optics for Maximum Output _x000D_
- Up to 95% More Power Than C2 1.0 _x000D_
- Available in Sport, Pro, and New 3900-Lumen Max Power Levels _x000D_
- Customizable Mounting to Dial In Your Setup _x000D_
- Link Multiple Pods with Crosslink Technology _x000D_
- Limited Lifetime Warranty _x000D_
- Made in USA with Global Materials _x000D_
- Raw Lumens: 3,960 Lm _x000D_
- Color Temp (CCT): 3000K _x000D_
- Power (Watts): Main Beam: 30, Backlight: 0.38 _x000D_
- Operating Voltage: 9-30V _x000D_
- Current (Amps @ 12.8V): Main Beam: 2.3, Backlight: 0.03 _x000D_
- Polarity: Polarity Specific _x000D_
- Operating Temperature: -40°C to 85°C (-40°F to 185°F) _x000D_
- LED Emitter: Osram Boost HX _x000D_
- Connector(s): Deutsch DT Input _x000D_
- Driver Features: Constant Current _x000D_
- Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket _x000D_
- Cooling: Passive, Pin-Fin Heatsink _x000D_
- Compliance Ratings: SAE J575 Durability Test _x000D_
- Intrusion Ratings: IP69K Waterproof, High Pressure _x000D_
- Product Dimensions (In): 2 x 3.3 x 2.4 _x000D_
- Unit Weight (Lb): 0.55 _x000D_
- Product Weight (Lb): 1.4 _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 3 to 3.75 Inch |
Description
Compact High-Powered Lighting. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight and Yellow SAE Fog/Wide offers intense illumination in a compact 2-inch form factor ideal for tight mounting spots. This lighting pod delivers exceptional fog and wide-area light distribution, enhancing visibility and safety for off-road and on-road applications.
_x000D__x000D_Construction and Appearance. This LED pod features a durable aluminum housing with a powder-coated finish and uses a polycarbonate lens for clarity and impact resistance. The optics employ patented Total Internal Reflection (TIR) technology combined with Osram Boost HX LEDs, providing efficient and focused output. Additionally, an amber backlight illuminates the optic for a distinctive, modern appearance that blends OEM styling with enhanced visibility.
_x000D__x000D_Installation. Installation requires basic tools and typically takes 30 to 60 minutes. The mounting system allows for modular height and angle adjustments to ensure precise placement without significant modification or drilling in most installations.
_x000D__x000D_Warranty. This product includes a limited lifetime warranty ensuring long-term reliability and support.
_x000D__x000D_Application. Designed for universal fitment, this LED pod may require some adaptation depending on the specific mounting location and vehicle setup.
