Find Light Bars & Off-Road Lighting for your Ram 3500

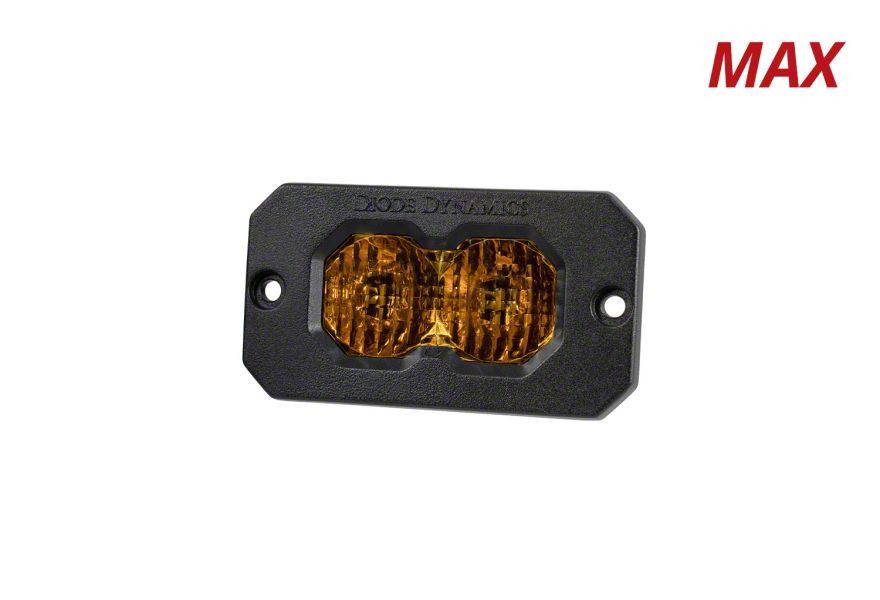

Diode Dynamics Stage Series C2 2.0 Max Flush Mount LED Pod Light with Amber Backlight; Yellow Combo/Driving (Universal; Some Adaptation May Be Required)
Item SHR63383
Our Price
$239.95
Military, Medical & First Responders
$12.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design for Tight Mounting Spots _x000D_
- Patented TIR Optics for Maximum Output and Reduced Glare _x000D_
- Up to 95% More Power Than C2 1.0 _x000D_
- Available in Sport, Pro, and New 3900-Lumen Max Power Levels _x000D_
- Limited Lifetime Warranty _x000D_
- Made in USA with Global Materials _x000D_
- Raw Lumens: 3,960 Lm _x000D_
- Color Temp (CCT): 3000K _x000D_
- Power (Watts): Main Beam 30, Backlight 0.38 _x000D_
- Operating Voltage: 9-30V _x000D_
- Current (Amps @ 13.2V): Main Beam 2.3, Backlight 0.03 _x000D_
- Polarity: Polarity Specific _x000D_
- Operating Temperature: -40°C to 85°C (-40°F to 185°F) _x000D_
- LED Emitter: Osram Boost HX _x000D_
- Connector(s): Deutsch DT Input _x000D_
- Driver Features: Constant Current _x000D_
- Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket _x000D_
- Cooling: Passive, Pin-Fin Heatsink _x000D_
- Compliance Ratings: SAE J575 Durability Test _x000D_
- Intrusion Ratings: IP69K Waterproof, High Pressure _x000D_
- Product Dimensions (Inches): 2.5 x 4.5 x 2.4 _x000D_
- Unit Weight (Lb): 0.55 _x000D_
- Product Weight (Lb): 1.4 _x000D_
- Universal Fit; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 4 to 4.75 Inch |
Description
Enhanced Lighting Performance. The Diode Dynamics Stage Series C2 2.0 Max Flush Mount LED Pod Light with Amber Backlight; Yellow Combo/Driving delivers exceptional illumination for automotive lighting needs. Designed for tight mounting locations, it features patented TIR optics for highly efficient light direction, resulting in up to 95% more output compared to previous models, significantly enhancing visibility and safety.
_x000D__x000D_Construction and Appearance. This LED pod is built with a rugged aluminum cast housing finished with a durable powder coat that maximizes heat dissipation and resists corrosion. The lens is made from impact-resistant polycarbonate, and a rubber gasket ensures a reliable seal providing IP69K waterproofing and protection against high-pressure water intrusion.
_x000D__x000D_Installation. The installation process is straightforward and typically requires only basic tools. The included mounting bracket allows secure flush mounting on any flat surface for a clean, low-profile appearance, with no complex modifications necessary.
_x000D__x000D_Warranty. This product is backed by a limited lifetime warranty, demonstrating confidence in its durability and long-term performance.
_x000D__x000D_Application. Designed for universal fitment with some adaptation, this LED pod is suitable for a wide variety of automotive lighting applications where a compact yet powerful light source is desired.
Diode Dynamics DD8131S
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Questions & Answers
No questions about this product yet.
Ask the First Question
