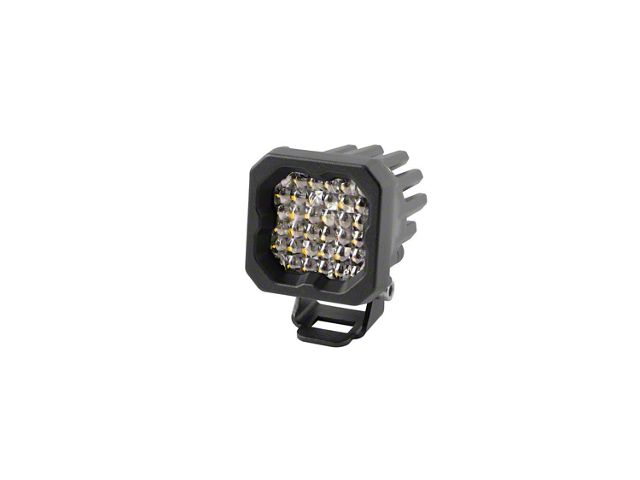

Diode Dynamics Stage Series C1R Standard LED Pod Light; White Flood (Universal; Some Adaptation May Be Required)

Item SSD24852
Product Image
32 Reviews of Diode Dynamics
Our Price

$159.95

Military, Medical & First Responders $8.00 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Ultra-Compact, Single-LED Form Factor
        • _x000D_
      • Triple Function: High-Power White Main Beam, High-Power Red Main Beam, and Low-Power Red Accent Light
        • _x000D_
      • Pin-Fin Heatsink Design for Superior Thermal Dissipation
        • _x000D_
      • Integrated Deutsch-Style Connector with 4-Pin 6-Inch Pigtail with Bare Leads
        • _x000D_
      • Designed, Torture-Tested, and Assembled in USA
        • _x000D_
      • Custom-Engineered TIR Optics Combined with a Single High-Power LED Chip to Provide Three Lighting Functions
        • _x000D_
      • Compact Size Allows Mounting Virtually Anywhere on Car, Truck, Motorcycle, or UTV
        • _x000D_
      • High-Power White Main Beam, High-Power Red Main Beam, and Low-Power Red Accent Light Can Be Activated Independently
        • _x000D_
      • Custom-Molded TIR Optic Serves as Both the Optic and Main Lens for Greater Efficiency and Light Output (Patent Pending)
        • _x000D_
      • Flood Pattern Designed to Provide Uniform, Even Illumination with a True Optically Designed 50°x50° Spread
        • _x000D_
      • Compatible with Standard, Flush-Mount, or GoPro-Style Mounting Points with Adapters
        • _x000D_
      • Wire Color Coding: Yellow Powers High-Power Red, Red Powers White Main Beam, Blue Powers Low-Power Red, and Black Is Ground
        • _x000D_
      • Tested for Long-Term Operation from -40°F to 185°F Including Vibration, Moisture Intrusion, and Corrosion
        • _x000D_
      • Snap-On Covers Available for Protection Against Dirt and Road Debris
        • _x000D_
      • Raw Lumens: 1450 Lm
        • _x000D_
      • Color Temperature: 6000K
        • _x000D_
      • Power: 15 Watts
        • _x000D_
      • Operating Voltage: 9-16V
        • _x000D_
      • Polarity Specific
        • _x000D_
      • Operating Temperature: -40°C to 85°C (-40°F to 185°F)
        • _x000D_
      • Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
        • _x000D_
      • Cooling: Passive, Pin-Fin Heatsink
        • _x000D_
      • Compliance Ratings: SAE J575 Durability Test
        • _x000D_
      • Intrusion Ratings: IP69K Waterproof, High Pressure
        • _x000D_
      • Weight: 0.4 lbs
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      Advanced LED Lighting. The Diode Dynamics Stage Series C1R Standard LED Pod Light White Flood delivers versatile, high-performance auxiliary lighting designed for various vehicles including cars, trucks, motorcycles, and UTVs. Equipped with a single high-power LED and innovative custom-engineered TIR optics, this pod provides three independent lighting functions, making it ideal for backup, brake, and running lights where space is limited.

      _x000D_

      Construction and Appearance. This LED pod features a durable polycarbonate lens combined with an aluminum casting and rubber gasket for environmental sealing. The pin-fin heatsink design enhances thermal management, while the custom-molded TIR optic serves as both the optic and main lens, maximizing light output and efficiency. Designed, torture-tested, and assembled in the USA, it offers a premium, rugged finish suitable for demanding conditions.

      _x000D_

      Installation. Installing the light pod requires basic tools and typically takes 30 to 60 minutes. Its compact size and included mounting bracket allow for flexible placement with minimal modifications or drilling in many cases.

      _x000D_

      Warranty. This product is backed by a limited lifetime warranty, providing assurance of quality and durability.

      _x000D_

      Application. Fits universal; some adaptation may be required.
