Find Light Bars & Off-Road Lighting for your F-350

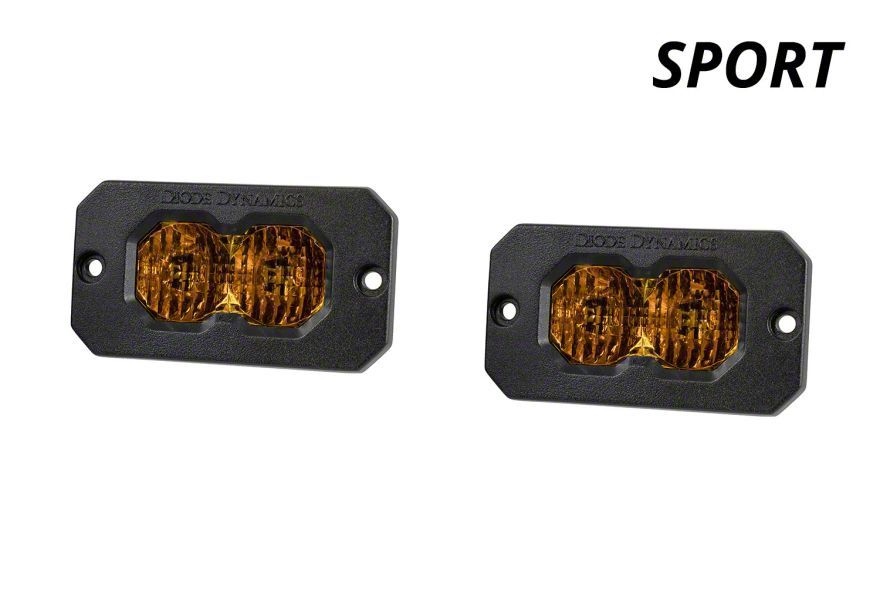

Diode Dynamics Stage Series C2 2.0 Sport Flush Mount LED Pod Lights with Amber Backlight; Yellow Combo/Driving (Universal; Some Adaptation May Be Required)

Item SSD65724
Our Price

$219.95

Military, Medical & First Responders $11.00 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Ultra-Compact Design For Tight Mounting Spots
      • _x000D_
      • Patented TIR Optics For Maximum Output
      • _x000D_
      • Up To 95% More Power Than C2 1.0
      • _x000D_
      • Available In Sport, Pro, And New 3900-Lumen Max Power Levels
      • _x000D_
      • Limited Lifetime Warranty
      • _x000D_
      • Made In USA With Global Materials
      • _x000D_
      • Includes Two Stage Series C2 2.0 LED Pods
      • _x000D_
      • Includes Two Deutsch-Style Wire Pigtails
      • _x000D_
      • Includes Two Mounting Brackets And Hardware
      • _x000D_
      • Raw Output Ranges From 1,190 To 3,960 Lumens
      • _x000D_
      • Peak Beam Intensity Up To 16,500 Candela
      • _x000D_
      • Illuminance Up To 165 Lux At 10 Meters
      • _x000D_
      • Color Temperature Of 3000K Yellow
      • _x000D_
      • Power Consumption Main Beam 15 Watts, Backlight 0.38 Watts
      • _x000D_
      • Operating Voltage Between 9 And 30 Volts
      • _x000D_
      • Current Draw At 13.2V: Main Beam 1.17 Amps, Backlight 0.03 Amps
      • _x000D_
      • Polarity Specific Wiring
      • _x000D_
      • Operating Temperatures From -40°C To 85°C (-40°F To 185°F)
      • _x000D_
      • Lumileds Automotive Grade LED Emitters
      • _x000D_
      • Deutsch DT Input Connectors
      • _x000D_
      • Constant Current Driver For Stable Performance
      • _x000D_
      • Polycarbonate Lens, Aluminum Casting, And Rubber Gasket Materials
      • _x000D_
      • Passive Cooling With Pin-Fin Heatsink
      • _x000D_
      • Meets SAE J575 Durability Standards
      • _x000D_
      • Rated IP69K Waterproof For High-Pressure And Dust Protection
      • _x000D_
      • Product Dimensions 2.5 x 4.5 x 2.4 Inches
      • _x000D_
      • Unit Weight 0.55 Pounds, Product Weight 1.4 Pounds
      • _x000D_
      • Universal Fit; Some Adaptation May Be Required
      • _x000D_

      Description

      Advanced LED Lighting. The Diode Dynamics Stage Series C2 2.0 Sport Flush Mount LED Pod Lights with Amber Backlight and Yellow Combo/Driving deliver powerful, focused illumination in a compact, flush-mount design. Ideal for enhancing visibility on bumpers, cargo areas, trailers, or roof racks, these pods provide superior light output with minimal size, making them perfect for tight mounting locations. Their patented optics ensure efficient light projection with reduced glare for optimal real-world performance.

      _x000D__x000D_

      Construction and Appearance. Constructed with a powder-coated aluminum housing and a polycarbonate lens, these LED pods feature a rugged, corrosion-resistant design engineered to withstand extreme environments. High-quality automotive-grade LED emitters are mounted on a copper-core circuit board to improve thermal management, while a rubber gasket enhances waterproof protection. The finish is engineered for durability and a sleek, modern appearance, with amber backlighting providing a distinct and attractive accent.

      _x000D__x000D_

      Installation. Installation requires a basic toolset and typically takes between 30 to 60 minutes. The flush mount kit allows for a low-profile fitment on flat surfaces, and minor adaptation may be required depending on your mounting location, but no specialized tools or extensive modifications are typically necessary.

      _x000D__x000D_

      Warranty. These LED pods come with a limited lifetime warranty, ensuring long-term reliability and customer confidence.

      _x000D__x000D_

      Application. Designed for universal fitment with some adaptation possibly necessary to accommodate specific mounting surfaces or vehicle configurations.

      Diode Dynamics DD8123P

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Questions & Answers

      No questions about this product yet. Ask the First Question
