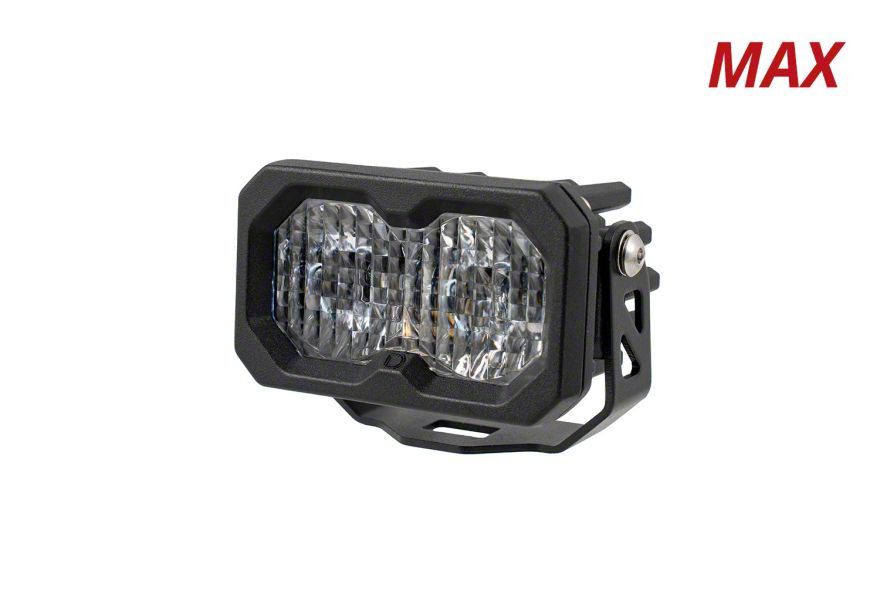

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Red Backlight; White Flood (Universal; Some Adaptation May Be Required)
Item SSD65711
Our Price
$239.95
Military, Medical & First Responders
$12.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design For Tight Mounting Spots _x000D_
- Patented TIR Optics For Maximum Output _x000D_
- Up To 95% More Power Than C2 1.0 _x000D_
- Available In Sport, Pro, And New 3900-Lumen Max Power Levels _x000D_
- Customizable Mounting To Dial In Your Setup _x000D_
- Link Multiple Pods With CrossLink Technology _x000D_
- Limited Lifetime Warranty _x000D_
- Made In USA With Global Materials _x000D_
- Peak Beam Intensity Of 1,700 Candela Flood Max Variant _x000D_
- Color Temperature Of 6000K White _x000D_
- Power Consumption Of 30 Watts Main Beam, 0.38 Watts Backlight _x000D_
- Operating Voltage From 9 To 30 Volts _x000D_
- Current Draw Of 2.3 Amps At 12.8 Volts For Main Beam _x000D_
- Osram Boost HX LED Emitter _x000D_
- Deutsch DT Input Connector _x000D_
- Constant Current Driver Features _x000D_
- Materials Include Polycarbonate Lens, Aluminum Casting, Rubber Gasket _x000D_
- Passive Cooling With Pin-Fin Heatsink _x000D_
- IP69K Waterproof, High Pressure Rated _x000D_
- Dimensions Of 2 X 3.3 X 2.4 Inches _x000D_
- Weight Of 0.55 Pounds Per Unit _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 3 to 3.75 Inch |
Description
Compact High-Performance. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Red Backlight; White Flood is engineered to deliver superior illumination in a compact 2-inch package. This versatile pod light is perfect for mounting in tight spaces such as roof racks, bumpers, roll bars, or A-pillars, providing a powerful flood beam for broad and even illumination in diverse driving conditions.
_x000D__x000D_Construction and Appearance. Built with a durable aluminum casting and finished with a powder-coated texture for enhanced heat dissipation and corrosion resistance, the unit features a polycarbonate lens for durability and clarity. The red backlight enhances the optic, creating a modern and distinctive look.
_x000D__x000D_Installation. Installation requires basic tools and generally takes between 30 to 60 minutes. The mounting system includes adjustable brackets that allow precise aiming without the need for drilling in most applications.
_x000D__x000D_Warranty. This product comes with a limited lifetime warranty, ensuring long-term reliability and performance.
_x000D__x000D_Application. Designed for universal fitment, some adaptation may be required depending on mounting location and vehicle specifics.
Diode Dynamics DD8116S
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Questions & Answers
No questions about this product yet.
Ask the First Question
