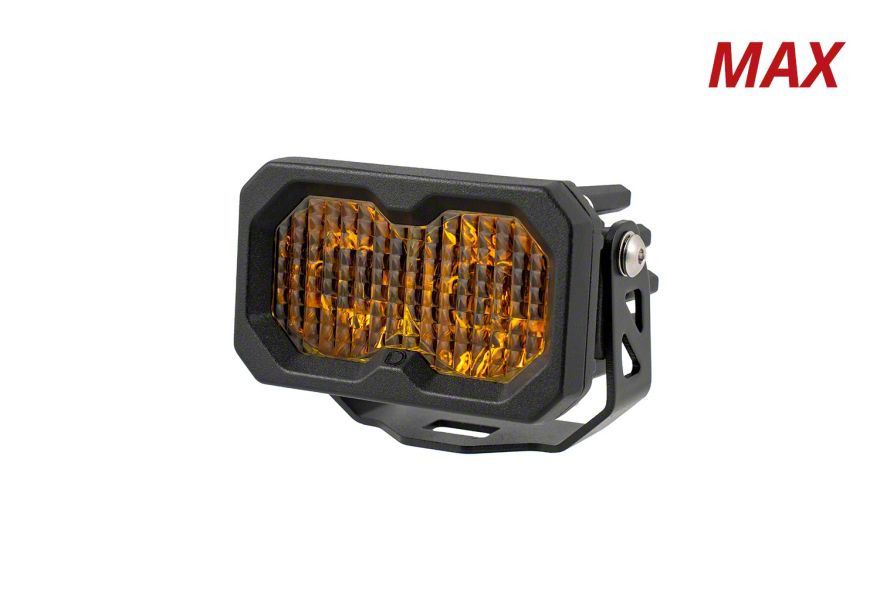

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; Yellow Spot (Universal; Some Adaptation May Be Required)
Item SSD65717
Our Price
$239.95
Military, Medical & First Responders
$12.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design For Tight Mounting Spots _x000D_
- Patented TIR Optics For Maximum Output _x000D_
- Up To 95% More Power Than C2 1.0 _x000D_
- Available In Sport, Pro, And New 3900-Lumen Max Power Levels _x000D_
- Customizable Mounting To Dial In Your Setup _x000D_
- Link Multiple Pods With CrossLink Technology _x000D_
- Limited Lifetime Warranty _x000D_
- Made In USA With Global Materials _x000D_
- Raw Lumens: 3,960 Lm _x000D_
- Color Temperature (CCT): 3000K _x000D_
- Power (Watts): Main Beam: 30, Backlight: 0.38 _x000D_
- Operating Voltage: 9-30V _x000D_
- Current (Amps @ 12.8V): Main Beam: 2.3, Backlight: 0.03 _x000D_
- Polarity Specific _x000D_
- Operating Temperature: -40°C To 85°C (-40°F To 185°F) _x000D_
- LED Emitter: Osram Boost HX _x000D_
- Connector(s): Deutsch DT Input _x000D_
- Driver Features: Constant Current _x000D_
- Materials: Polycarbonate Lens, Powder-Coated Aluminum Housing, Rubber Gasket _x000D_
- Cooling: Passive, Pin-Fin Heatsink _x000D_
- Compliance Ratings: SAE J575 Durability Test _x000D_
- Intrusion Ratings: IP69K Waterproof, High Pressure Wash _x000D_
- Product Dimensions (Inches): 2 x 3.3 x 2.4 _x000D_
- Unit Weight (Lb): 0.55 _x000D_
- Product Weight (Lb): 1.4 _x000D_
- Universal Fitment; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 3 to 3.75 Inch |
Description
HIGH-PERFORMANCE LED LIGHTING. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; Yellow Spot delivers powerful, focused illumination from a compact two-inch pod, ideal for tight mounting locations such as roof racks, bumpers, and A-pillars. It enhances visibility with a distinct amber backlight accent for added style and safety, making it an essential upgrade for off-road and on-road lighting applications.
_x000D__x000D_CONSTRUCTION AND APPEARANCE. This LED pod features a durable powder-coated aluminum housing designed for superior heat dissipation, paired with a polycarbonate lens and robust rubber gasket to ensure protection against moisture and debris. The passive pin-fin heatsink increases thermal efficiency while the compact design provides a rugged yet sleek finish to any vehicle.
_x000D__x000D_INSTALLATION. Installation requires basic hand tools and generally takes 30-60 minutes, with no major modifications or drilling needed for most mounting setups. The customizable bracket allows for precise angle and height adjustments to tailor the light output to your specific needs.
_x000D__x000D_WARRANTY. This product is backed by a limited lifetime warranty, reflecting confidence in its quality and durability.
_x000D__x000D_APPLICATION. Designed for universal fitment, this LED pod can be adapted to a wide range of vehicles and mounting configurations, providing flexible lighting solutions to suit various automotive needs.
Diode Dynamics DD8119S
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
