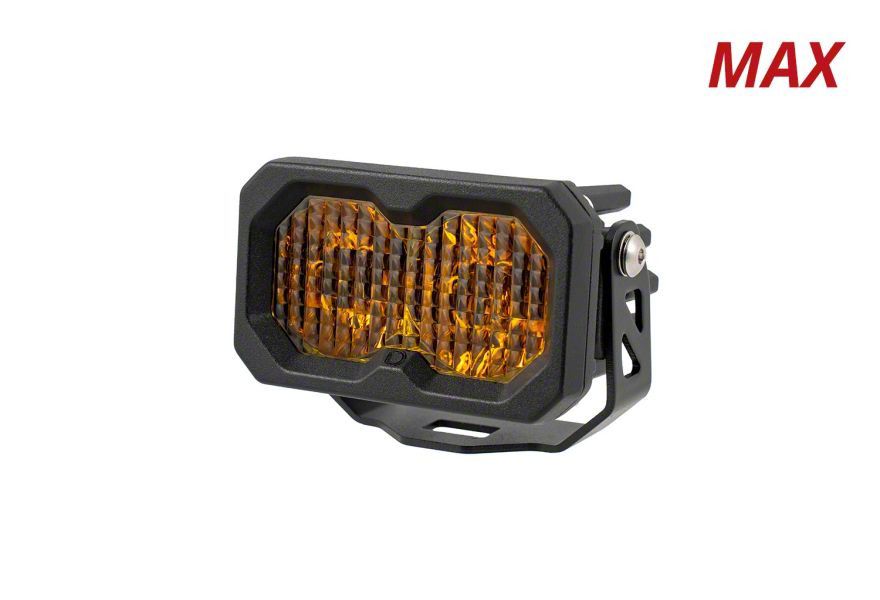

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; Yellow SAE Fog/Wide (Universal; Some Adaptation May Be Required)
Item SSD65745
Our Price
$239.95
Military, Medical & First Responders
$12.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design for Tight Mounting Spots _x000D_
- Patented TIR Optics for Maximum Output _x000D_
- Up to 95% More Power Than C2 1.0 _x000D_
- Available in Sport, Pro, and New 3900-Lumen Max Power Levels _x000D_
- Customizable Mounting to Dial in Your Setup _x000D_
- Link Multiple Pods with CrossLink Technology _x000D_
- Limited Lifetime Warranty _x000D_
- Made in USA with Global Materials _x000D_
- Raw Lumens: 3,960 Lm _x000D_
- Color Temperature (CCT): 3000K _x000D_
- Power (Watts): Main Beam: 30, Backlight: 0.38 _x000D_
- Operating Voltage: 9-30V _x000D_
- Current (Amps @ 12.8V): Main Beam: 2.3, Backlight: 0.03 _x000D_
- Polarity Specific _x000D_
- Operating Temperature: -40°C to 85°C (-40°F to 185°F) _x000D_
- LED Emitter: Osram Boost HX _x000D_
- Connector(s): Deutsch DT Input _x000D_
- Driver Features: Constant Current _x000D_
- Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket _x000D_
- Cooling: Passive, Pin-Fin Heatsink _x000D_
- Compliance Ratings: SAE J575 Durability Test _x000D_
- Intrusion Ratings: IP69K Waterproof, High Pressure _x000D_
- Product Dimensions (Inches): 2 x 3.3 x 2.4 _x000D_
- Unit Weight (Pounds): 0.55 _x000D_
- Product Weight (Pounds): 1.4 _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 3 to 3.75 Inch |
Description
High-Performance LED Lighting. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight and Yellow SAE Fog/Wide beam delivers exceptional illumination with advanced optics and impressive raw lumen output. Designed for precise light dispersion, it enhances visibility in foggy or wide-area conditions, making it an essential tool for both on- and off-road driving scenarios.
_x000D__x000D_Construction and Appearance. This LED pod features a powder-coated aluminum housing and a polycarbonate lens, ensuring durability and resistance to corrosion and impacts. The design incorporates a copper-core circuit board for superior thermal management and includes a distinctive amber backlight that accentuates the optics while matching OEM marker colors.
_x000D__x000D_Installation. Installation requires basic tools and typically takes 30 to 60 minutes. The mounting system provides customizable options without extensive drilling, allowing flexible and secure placement in tight spaces.
_x000D__x000D_Warranty. This product includes a limited lifetime warranty covering defects in materials and workmanship under normal use.
_x000D__x000D_Application. Fits universal applications; some adaptation may be necessary to accommodate specific vehicle mounting points or configurations.
