Diablosport Trinity 2 Platinum Tuner (13-14 3.6L RAM 1500)

Item R110519-36
Verify parts fit and get product recommendations.
Ram 1500 Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Our Price

$714.95 (each)

FREE Shipping Market Price $822.99 You Save 13% ($108.04) Up to 10% off for Military & First Responders! See Details

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features

      • Improves Horsepower, Torque and Overall Performance
      • Platinum Version - Supports Custom Tuning
      • Holds Up to 5 Custom Tunes - Available Separately
      • Pre-Loaded with Pre-Configured DiabloSport Tunes
      • High-Resolution Capacitive Touch Screen Display
      • On Screen Gauges, Data Logging and Monitoring
      • Performance Testing
      • Reads/Clears DTC Trouble Codes
      • No CARB EO Number
      • Updatable via WiFi, Mac, Windows or Linux
      • Fits 2013-2014 3.6L RAM 1500 Models

      Description

      Increase Power and Performance. Further enhance the performance of your 2013-2014 3.6L V6 RAM 1500 with a Diablosport Trinity 2 Platinum Tuner. The Trinity 2 Platinum Tuner supports third party custom tune files and also comes preloaded with Diablosport's very own pre-configured tune files. When your RAM 1500 rolled off the assembly line, RAM programmed it to cater to the needs of the daily driver, not the performance enthusiast who adds aftermarket bolt-on modifications in the search of more power. So, if your RAM is bone stock, or if you have added a cold air intake, throttle body or exhaust mods, you should invest in a Diablosport Trinity 2 Platinum Tuner to see the full power potential your RAM can make.

      User Adjustable. DiabloSport designed its Tuner to be user adjustable. This means you can make further changes to the tune files to suit your particular performance needs. Please note that not all adjustments listed below are available on all vehicles.
      • Calibrate Speedometer for Gear Ratio
      • Calibrate Speedo for Tire Size
      • Cooling Fan Control
      • Disable ESP
      • Throttle Booster
      • Fuel Rich/Lean Adjustment
      • Spark Timing Advance/Retard
      • Idle RPM
      • Top Speed Limiter
      • Rev Limiter
      • Shift Points/Firmness
      • Disable Active Fuel Management

      Performance Testing. Another really cool feature of the Trinity 2 Tuner is that it allows you to measure your 0-60 time, 0-100 time, 1⁄8 mile elapsed time, and 1⁄4 mile elapsed time, all with just a push of a button. By keeping track of your 0-60 and 1/4 mile times you can see the difference your latest go fast mods have made.

      Built-in WiFi. The Diablosport Trinity 2 Tuner is WiFi-capable meaning you will no longer have to plug it into your Mac, Windows or Linux computer to receive the latest Diablosport firmware updates, but that is still an option. Once setup with your Wi-Fi password, the Trinity 2 will download the latest firmware updates via the internet.

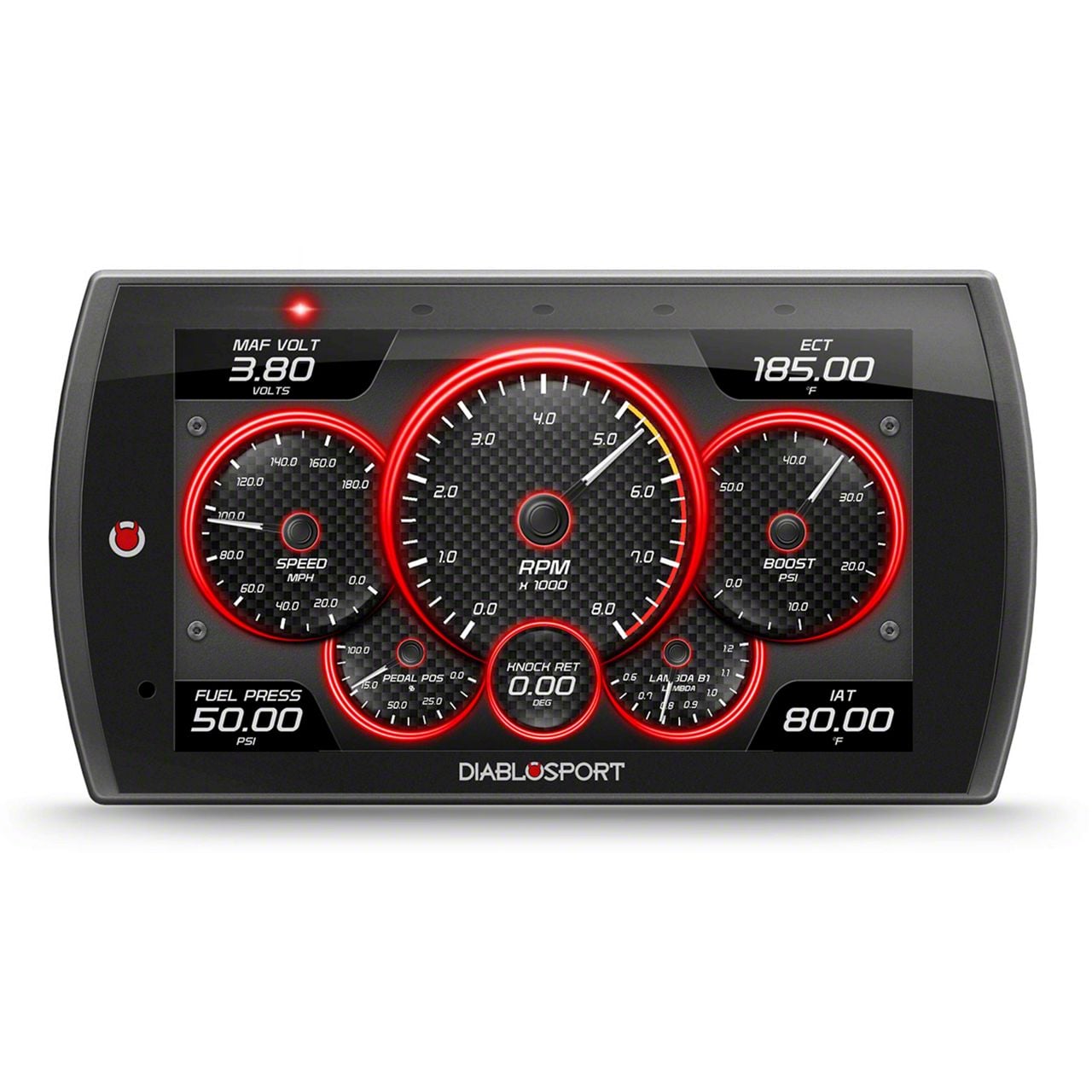

      Data Logging and Monitoring. With a full color, high-resolution touch screen display, the Diablosport Trinity 2 Tuner makes it easy to read the Built-In Data Logging and/or the Real Time Data, so you can view popular sensor data such as EGT, Air/Fuel Ratio or any other 0-5 Volt source.

      Diagnostics Tool. The Trinity 2 Tuner can also be used as a diagnostic code reader. Save yourself hundreds of dollars each year by reading and clearing your own Diagnostic Trouble Codes (DTCs) rather than paying a dealer to do the same. It's as easy as a few simple steps.

      Easy to Load; Easy to Restore. When you load your DiabloSport tune on your RAM, the tuner automatically stores your vehicle's factory settings. To return to the original factory settings, just plug the tuner back in, select the option to restore the factory settings, and you're done. This is ideal for visiting dealerships for warranty work.

      Application. This Diablosport Trinity 2 (T2 EX) Platinum Tuner is specifically designed for 2013-2014 RAM 1500 models equipped with the naturally aspirated 3.6L V6 engine. This Tuner supports custom tune files which are available separately.

      Shop All Truck Parts And Accessories

      Shop All Truck Tuners

      Fitment:

      Details

      Diablosport 9345-D

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      What's in the Box

      • (1) Trinity 2 (EX 2) Tuner
      • (1) OBDII to HDMI Cable
      • (1) USB to Mini-USB Cable
      • Windshield Suction Mount
      • Quick Start Guide
