Installation Time
(approx) 5 Hours
Difficulty Level:
Light to Moderate mechanical skill required.
FREE 1 to 3-Day Delivery on Orders $119+ Details
Talk to a Sierra 1500 Sales Tech
1-888-706-1096
M-F 8:30A-11P, Sat-Sun 8:30A-9P
Belltech Lowering Kit with Street Performance Shocks; 3 to 4-Inch Front / 5 to 6-Inch Rear (07-13 2WD Sierra 1500 Extended Cab, Crew Cab)
Item S512927
Sierra 1500 Sales Techs:
Connect Now
M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features
- Suspension Lowering Kit
- Front Drop: 3 to 4-inch; Rear Drop: 5 to 6-inch
- Corrects Factory Rake for a Level Stance
- Lowers Center of Gravity for Improved Handling
- Front Lowering Spindles with Coil Springs
- Rear Axle Flip Kit
- Alignment Kit
- Street Performance Shocks/Struts Included
- Straight Forward Bolt-on Installation
- Requires 17-inch Minimum Wheel Size
- Designed for use with Cast Steel OEM Upper Control Arms
- Fits 2007-2013 2WD GMC Sierra 1500 Extended Cab, Crew Cab Models
Description
Lowered Stance. Add a commanding, lowered street stance to your 2007-2013 2WD Extended Cab or Crew Cab GMC Sierra by installing a Belltech Lowering Kit that includes Street Performance Shocks. By dropping the front by 3 to 4-inches and the rear by 5 to 6-inches, this Kit will lower your Sierra's center of gravity for sportier handling performance. This Belltech Kit features 2-inch drop spindles with pro coil springs, rear axle flip kit, as well as an alignment kit. What’s more, the included Street Performance Shocks/Struts provide incredible dampening capacity for spirited driving.
Street Performance Shocks/Struts. Belltech Street Performance Shocks/Struts were designed to greatly improve the handling performance of your ride. Using a gas pressurized twin-tube design, these Street Performance Shocks/Struts feature an 18mm hardened chrome piston rod with independent 35mm rebound and compression valves to provide heightened control. A larger, 50mm diameter housing allows for increased fluid capacity for cooler operation. The combination of progressive rate open cell foam bumpstops, Teflon guide bushings, triple lip NBR seals and reinforced OEM quality bushings help to balance between ride comfort and driving performance.
Drop Spindles. This Belltech Lowering Kit includes a set of Drop Spindles that reuse your factory ball joints and Tie Rod ends to maintain factory geometry, alignment and factory ride quality. Each Spindle is CNC machined from high strength ductile iron castings that provide the structural integrity to meet or exceed factory specifications. The Spindles are then completed in a powder coated finish for long lasting corrosion resistance.
Pro Coil Springs. The included linear Coil Springs (also known as standard rate springs) are engineered with a constant spring rate that remains the same as the spring compresses allowing for optimum traction and a more predictable handling. These Coil Springs are manufactured to exact specifications from cold wound chromium alloy steel, and are then shot peened and powder coated in a silver finish for long lasting corrosion resistance.
Flip Kit. Belltech Rear Axle Flip Kits are designed to relocate or “Flip" the rear axle of your truck from beneath the leaf spring to above, providing a dramatic amount of drop. Each Belltech rear axle Flip Kit is manufactured with high quality steel and features a durable powder coated finish. Grade 8 hardware and installation instructions are included.
Alignment Kit. When lowering your vehicle, driveline angles change, that is why Belltech has included an Alignment Kit with this Lowering Kit to correct camber and caster. This Belltech Alignment Kit includes (4) offset upper control arm bushings. Adjustment range: Camber +/- 2 Caster +/- 2.
Bolt-on Installation. Belltech engineered their Lowering Kit to be installed with no modifications needed, making it a bolt-on kit. However, it should be noted that professional installation is recommended. With all the necessary hardware included, this Kit can be installed in about 5 hours time. Please note that an alignment is highly recommended after installation.
Application. This Belltech Lowering Kit with Street Performance Shocks; 3 to 4-Inch Front / 5 to 6-Inch Rear is designed to fit 2007-2013 2WD Sierra 1500 Extended Cab or Crew Cab models equipped with Cast Steel OEM Upper Control Arms. Requires 17-inch minimum wheel size.
Street Performance Shocks/Struts. Belltech Street Performance Shocks/Struts were designed to greatly improve the handling performance of your ride. Using a gas pressurized twin-tube design, these Street Performance Shocks/Struts feature an 18mm hardened chrome piston rod with independent 35mm rebound and compression valves to provide heightened control. A larger, 50mm diameter housing allows for increased fluid capacity for cooler operation. The combination of progressive rate open cell foam bumpstops, Teflon guide bushings, triple lip NBR seals and reinforced OEM quality bushings help to balance between ride comfort and driving performance.
Drop Spindles. This Belltech Lowering Kit includes a set of Drop Spindles that reuse your factory ball joints and Tie Rod ends to maintain factory geometry, alignment and factory ride quality. Each Spindle is CNC machined from high strength ductile iron castings that provide the structural integrity to meet or exceed factory specifications. The Spindles are then completed in a powder coated finish for long lasting corrosion resistance.
Pro Coil Springs. The included linear Coil Springs (also known as standard rate springs) are engineered with a constant spring rate that remains the same as the spring compresses allowing for optimum traction and a more predictable handling. These Coil Springs are manufactured to exact specifications from cold wound chromium alloy steel, and are then shot peened and powder coated in a silver finish for long lasting corrosion resistance.
Flip Kit. Belltech Rear Axle Flip Kits are designed to relocate or “Flip" the rear axle of your truck from beneath the leaf spring to above, providing a dramatic amount of drop. Each Belltech rear axle Flip Kit is manufactured with high quality steel and features a durable powder coated finish. Grade 8 hardware and installation instructions are included.
Alignment Kit. When lowering your vehicle, driveline angles change, that is why Belltech has included an Alignment Kit with this Lowering Kit to correct camber and caster. This Belltech Alignment Kit includes (4) offset upper control arm bushings. Adjustment range: Camber +/- 2 Caster +/- 2.
Bolt-on Installation. Belltech engineered their Lowering Kit to be installed with no modifications needed, making it a bolt-on kit. However, it should be noted that professional installation is recommended. With all the necessary hardware included, this Kit can be installed in about 5 hours time. Please note that an alignment is highly recommended after installation.
Application. This Belltech Lowering Kit with Street Performance Shocks; 3 to 4-Inch Front / 5 to 6-Inch Rear is designed to fit 2007-2013 2WD Sierra 1500 Extended Cab or Crew Cab models equipped with Cast Steel OEM Upper Control Arms. Requires 17-inch minimum wheel size.
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

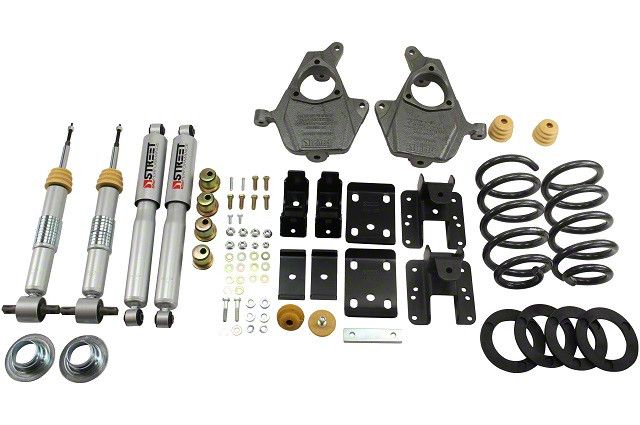

What's in the Box
- (2) Front 2-inch Lowering Spindles
- (2) Front Coil Springs
- (1) Rear Axle Flip Kit
- (1) Alignment Kit
