Find Transmission & Transfer Case for your Ram 3500

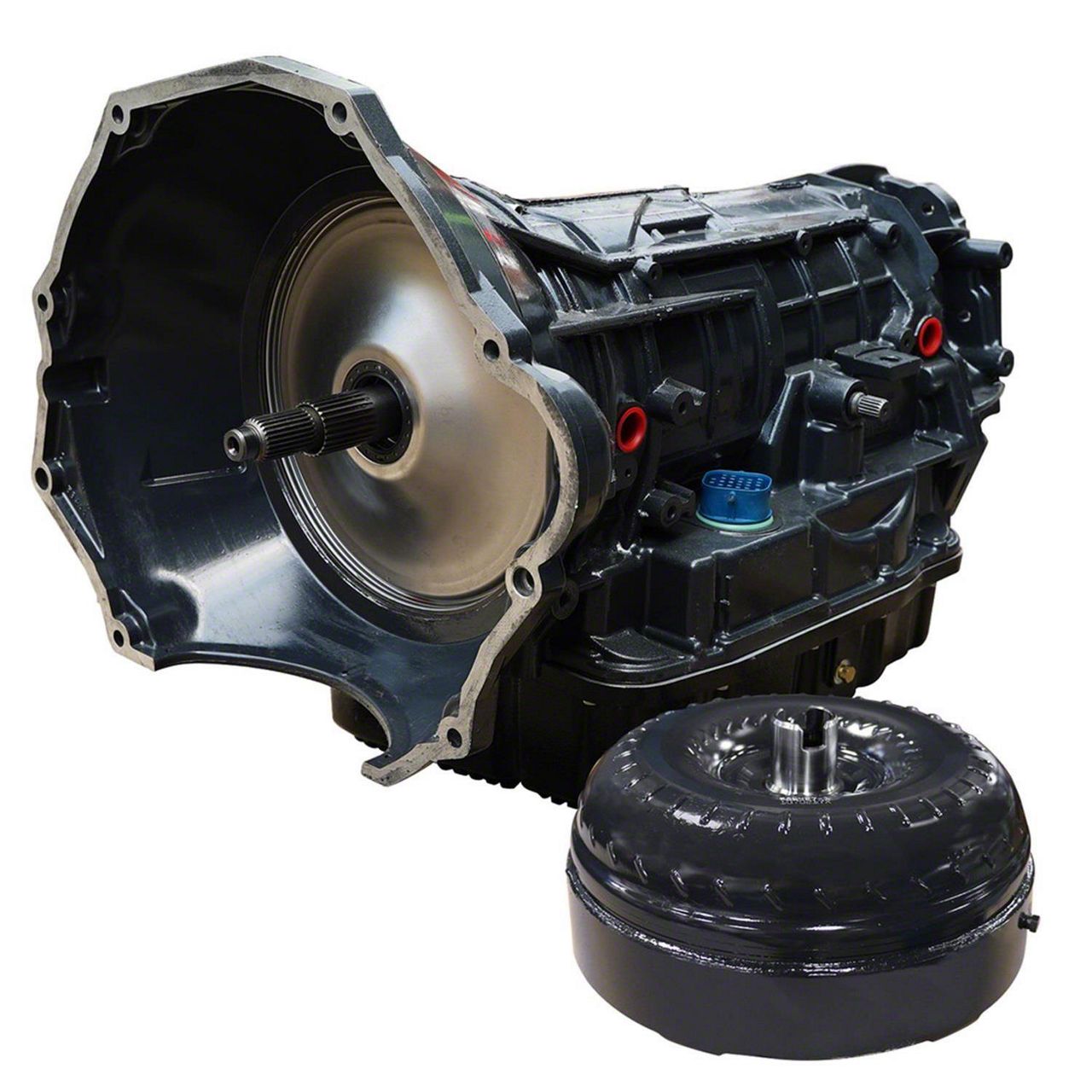

BD Power 68RFE Transmission and Converter Package with Proforce 3D Converter; $2800 Core Charge Included (19-23 4WD 6.7L RAM 3500 w/ 68RFE Transmission)Find parts that fit my vehicle

Item SHR25111
Product Image
5 Reviews of BD Power
Our Price

$10,124.95 kit

Military, Medical & First Responders $506.25 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

        _x000D_
      • Hard Anodized Valve Body And New Solenoid Pack Installed In Every Unit
        • _x000D_
      • Custom Bonded Gasket Valve Body Separator Plate Increases Line Pressure While Stopping Internal Cross Leaks
        • _x000D_
      • Heavy Duty Cam & Roller Design Low Reverse One Way Clutch
        • _x000D_
      • New 4C Billet Spring Retainer
        • _x000D_
      • Steel Girdle Added To 2C Piston To Allow For More Clutches And Broader Apply Area
        • _x000D_
      • Durable QT100 Pressure Plates Allow For Increased Clutch Counts And Reduce Deflection And Distortion Within The Clutch Drum
        • _x000D_
      • Over Drive Clutches Increased 33% & 2C Clutches Increased 33%
        • _x000D_
      • Custom Big Stack Overdrive Shaft
        • _x000D_
      • Reinforced Accumulator Plate
        • _x000D_
      • Deep Sump Oil Pan Adds Extra Fluid And Cooling Capacity While Reducing Case Flex
        • _x000D_
      • Performance Transmission Featuring Billet Input Shaft To Take The Snap From Rapid Throttle And High Horsepower
        • _x000D_
      • Special Tuning Required For 2019-Up Applications For Increased Line Pressure; Line Pressure Controller Not Included
        • _x000D_
      • Proforce 3D Torque Converter With Triple Disc And Enhanced Stall For Street/Towing Applications
        • _x000D_
      • Heavy Duty Springs Absorb Shock Of Engagement
        • _x000D_
      • Stamp Forged One-Piece Cover Eliminates Warpage From Clutch Heat
        • _x000D_
      • Taller Cover Allowing More Frequent Rebuilds
        • _x000D_
      • Self-Centering Trapezoid Teeth Design Increases Contact, Decreases Wear And Chatter
        • _x000D_
      • Thrust Bearings Instead Of Plastic Thrust Washers
        • _x000D_
      • Riveted Piston Ensures Alignment & Eliminates Vibration Or Embrittlement From Welding
        • _x000D_
      • Cast Stator Maximizes Torque
        • _x000D_
      • New Sprag Components For Long Term Durability
        • _x000D_
      • Furnaced Brazed Turbine Fins For Improved Fluid Coupling Efficiency
        • _x000D_
      • Reduced Overall Weight By 12 Pounds Compared To Competitors
        • _x000D_
      • Fits 19-23 4WD 6.7L RAM 3500 w/ 68RFE Transmission
        • _x000D_

      Description

      Heavy Duty Transmission Package. The BD Power 68RFE Transmission and Converter Package with Proforce 3D Converter; $2800 Core Charge Included combines a fully upgraded 68RFE transmission and a high-performance torque converter to deliver superior reliability and power transfer for diesel trucks. Designed for both towing and street use, this package enhances transmission durability, increases clutch capacity, and improves shift quality under high horsepower and rapid throttle conditions.

      _x000D__x000D_

      Construction and Appearance. The transmission features hard anodized valve bodies, new solenoid packs, a steel girdle, and custom bonded gasket separator plates to optimize pressure and reduce leaks. It includes durable QT100 pressure plates, a reinforced accumulator plate, and a deep sump oil pan for extra fluid capacity and cooling, all finished in a professional heavy-duty appearance. The torque converter incorporates a triple-disc design, stamp-forged one-piece cover to resist warpage, and precision-machined components with self-centering trapezoid teeth for enhanced durability and reduced wear.

      _x000D__x000D_

      Installation. Installation requires approximately nine hours and involves a direct replacement of the stock transmission and torque converter. No additional drilling or modifications are typically necessary, though special tuning is required for 2019 and newer applications to increase line pressure.

      _x000D__x000D_

      Warranty. This package includes a 36-month or 150,000-mile parts warranty and a 12-month or 24,000-mile labor warranty, covering all components under normal use excluding race abuse.

      _x000D__x000D_

      Application. Specifically designed to fit 2019-2023 4WD 6.7L RAM 3500 trucks equipped with the 68RFE transmission. Special tuning is required for these 2019 and newer models to accommodate increased line pressure demands.

      BD Power 1064294SM

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 2 Hours

      Difficulty Level:

      Light to Moderate mechanical skill required.

      Installation Guides

      What's in the Box

      • (1) Transmission and Converter Package
      • ProForce 3D Converter
      4.7

      Reviews of BD Power Drivetrain Products (5)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Ram 3500

      • 6.7L I6 - 19, 20, 21, 22, 23, 24
