Find Transmission & Transfer Case for your Ram 3500

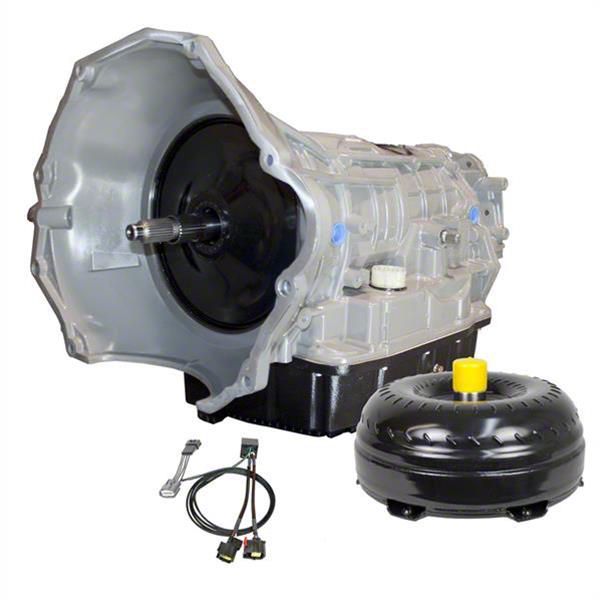

BD Power 68RFE Transmission and Converter Package with Billet Input Shaft and Proforce 3D Converter; $2800 Core Charge Included (07.5-18 4WD 6.7L RAM 3500 w/ 68RFE Transmission)Find parts that fit my vehicle

Item SHR25101
Product Image
5 Reviews of BD Power
Our Price

$11,094.95 kit

Military, Medical & First Responders $554.75 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

        _x000D_
      • Hard Anodized Valve Body And New Solenoid Pack Installed In Every Unit
        • _x000D_
      • Custom Bonded Gasket Valve Body Separator Plate Increases Line Pressure While Stopping Internal Cross Leaks
        • _x000D_
      • Heavy Duty Cam & Roller Design Low Reverse One Way Clutch
        • _x000D_
      • New 4C Billet Spring Retainer
        • _x000D_
      • Steel Girdle Added To 2C Piston To Allow For More Clutches And Broader Apply Area
        • _x000D_
      • BD Durable QT100 Pressure Plates Allow For Increased Clutch Counts And Reduce Deflection And Distortion Within The Clutch Drum
        • _x000D_
      • Over Drive Clutches 33% Increase & 2C Clutches 33% Increase
        • _x000D_
      • Custom Big Stack Overdrive Shaft
        • _x000D_
      • BD Reinforced Accumulator Plate
        • _x000D_
      • TCC Limit Valve Machined And Sleeved To Address High Wear Area Within Pump
        • _x000D_
      • BD Deep Sump Oil Pan Adds Extra Fluid And Cooling Capacity While Reducing Case Flex
        • _x000D_
      • BD ProTech68 Pressure Control Module Ramps Up Line Pressure To 250 Psi Using MAP Sensor To Input Load And Adjust Pressure Required
        • _x000D_
      • Performance Transmission With Added Billet Input Shaft To Take "Snap" From Rapid Throttle And High Horsepower
        • _x000D_
      • Triple Disc ProForce 3D Torque Converter
        • _x000D_
      • Enhanced Stall - Street/Towing Applications
        • _x000D_
      • Heavy Duty Springs Absorb Shock Of Engagement
        • _x000D_
      • Stamp Forged One-Piece Cover
        • _x000D_
      • Eliminates Warpage From Clutch Heat
        • _x000D_
      • Taller Cover Can Be Rebuilt More Often
        • _x000D_
      • Self-Centering Trapezoid Teeth Design Increases Contact, Decreases Wear And Chatter
        • _x000D_
      • Thrust Bearings Instead Of Plastic Thrust Washers
        • _x000D_
      • Riveted Piston Ensures Alignment & Eliminates Vibration Or Embrittlement From Welding
        • _x000D_
      • Cast Stator Design Maximizes Torque
        • _x000D_
      • New Sprag Components Ensure Long-Term Durability
        • _x000D_
      • Furnaced Brazed Turbine Fins For Improved Fluid Coupling Efficiency
        • _x000D_
      • Reduced Overall Weight By 12lbs Compared To Competitors
        • _x000D_
      • Fits 07.5-18 4WD 6.7L RAM 3500 w/ 68RFE Transmission
        • _x000D_

      Description

      High-Performance Transmission Package. The BD Power Transmission & Converter Package is engineered to provide a matched, dyno-tested solution for enhanced performance and reliability in heavy-duty diesel applications. It delivers robust power handling capabilities suited for demanding street, towing, or track use, ensuring your vehicle effectively withstands high horsepower and torque loads.

      _x000D__x000D_

      Construction and Appearance. This transmission features a hard anodized valve body with a custom bonded gasket separator plate, steel girdle reinforcements, and BD durable QT100 pressure plates designed to improve clutch durability and performance. It incorporates a billet input shaft to endure rapid throttle snaps. The torque converter includes a triple-disc construction with a forged one-piece cover, equipped with high-quality thrust bearings and advanced sprag components, finished for durability and heat resistance.

      _x000D__x000D_

      Installation. Installation is moderately involved, requiring approximately 9 hours to complete. No drilling or extensive modifications are necessary, making it a direct replacement for the specified equipment.

      _x000D__x000D_

      Warranty. This package is backed by a 36-month/150,000-mile parts warranty and a 12-month/24,000-mile labor warranty, providing peace of mind regarding durability and quality.

      _x000D__x000D_

      Application. Specifically engineered to fit the 07.5-18 4WD 6.7L RAM 3500 equipped with the 68RFE transmission, ensuring precise compatibility and optimal function.

      BD Power 1064264BM

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) a Day

      Difficulty Level:

      Mechanical expertise or professional installation required.

      Installation Guides

      What's in the Box

      • (1) Transmission And Converter Package
      4.7

      Reviews of BD Power Drivetrain Products (5)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Ram 3500

      • 6.7L I6 - 07, 08, 09, 10, 11, 12, 13, 14, 15, 16, 17, 18
