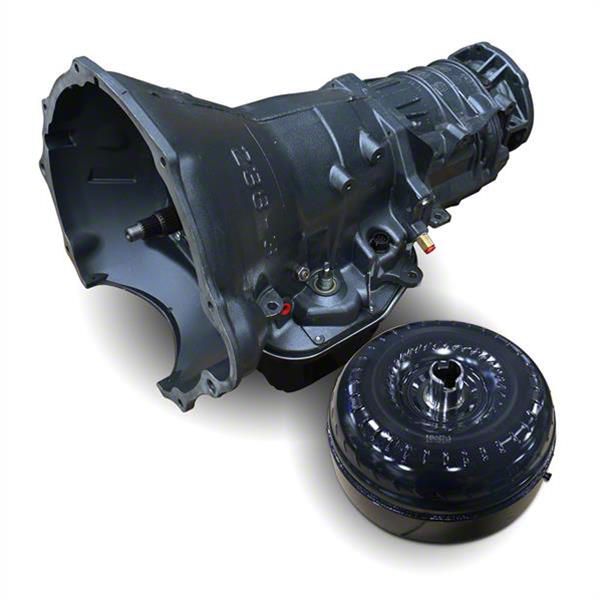

BD Power 48RE Transmission and Converter Package with Stage 4 Stock Shaft and ProForce Converter; $2500 Core Charge Included (05-07 4WD 5.9L RAM 3500)Find parts that fit my vehicle

Item SHR25094
Product Image
Sale
5 Reviews of BD Power
On Sale

-10% $7,105.46 Was $7,894.95

Military, Medical & First Responders $269.75 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A

      Features

        _x000D_
      • Upgraded Valvebody
        • _x000D_
      • Upgraded Governor Solenoid
        • _x000D_
      • Upgraded Governor Pressure Transducer with Twice The Burst Pressure of Stock
        • _x000D_
      • Increased Line Pressure to 190-200 psi
        • _x000D_
      • No Shuttle Shifting Problems
        • _x000D_
      • Modified Manual Valve for Lubrication in All Positions
        • _x000D_
      • Stock Thrust Bushings Replaced with Roller Torrington Bearings
        • _x000D_
      • Clutch Count Direct 6
        • _x000D_
      • Clutch Count Forward 5
        • _x000D_
      • Clutch Count Overdrive 6
        • _x000D_
      • Clutch Count Overdrive Direct 10
        • _x000D_
      • High Temp Energy Raybestos Band
        • _x000D_
      • Available with Billet Input Shaft
        • _x000D_
      • Billet Big Fine Spline Input Shaft
        • _x000D_
      • Drilled Intermediate Shaft for Increased Lubrication
        • _x000D_
      • Rigid Aluminum Heavy Duty Transmission Pan
        • _x000D_
      • Pan Adds 2 Quart Extra Oil Capacity
        • _x000D_
      • Pan Heat-Dissipating Fins Keep Temperature Down
        • _x000D_
      • Magnetic Drain Plug
        • _x000D_
      • Increases the Durability of Your Drivetrain
        • _x000D_
      • Auxiliary Full Flow Filter Kit for Extra Protection
        • _x000D_
      • Cooler Line Case Saver Included with Every Transmission
        • _x000D_
      • Every Transmission Is Tested on a Dyno
        • _x000D_
      • Not Warranted for Race or Sled Pull Use
        • _x000D_
      • ProForce 3D Torque Converter Triple Disc
        • _x000D_
      • HD Springs Absorb Shock of Engagement
        • _x000D_
      • Stamp Forged One-Piece Cover
        • _x000D_
      • Eliminates Warpage from Clutch Heat
        • _x000D_
      • Taller Cover Allows More Frequent Rebuilds
        • _x000D_
      • Self-Centering Trapezoid Teeth Design Increases Contact, Decreases Wear and Chatter
        • _x000D_
      • Thrust Bearings Used Instead of Plastic Thrust Washers
        • _x000D_
      • Riveted Piston Ensures Alignment and Eliminates Vibration or Embrittlement from Welding
        • _x000D_
      • Cast Stator Design Maximizes Torque
        • _x000D_
      • New Sprag Components Ensure Long-Term Durability
        • _x000D_
      • Furnace Brazed Turbine Fins for Improved Fluid Coupling Efficiency
        • _x000D_
      • Reduced Overall Weight by 12 lbs Compared to Competitors
        • _x000D_
      • ProForce Torque Converter with Enhanced Stall for Street Towing Applications
        • _x000D_
      • Torque Multiplying Cast Aluminum Stators
        • _x000D_
      • Lower RPM Response Than Stock Converter
        • _x000D_
      • More Efficient Operation
        • _x000D_
      • Generates Less Heat and Improves Fuel Economy
        • _x000D_
      • Stamp-Forged Steel Front Cover
        • _x000D_
      • Furnace-Brazed Fins
        • _x000D_
      • Fits 2005-2007 4WD 5.9L RAM 3500
        • _x000D_

      Description

      Premium Transmission Package. The BD Power 48RE Transmission and Converter Package with Stage 4 Stock Shaft and ProForce Converter, including a $2500 core charge, combines a high-performance transmission with a matched torque converter for enhanced durability and towing capacity. Designed for both street and heavy-duty towing applications, this package improves drivetrain reliability and smoothness under extreme load conditions, ensuring dependable operation.

      _x000D__x000D_

      Construction and Appearance. This transmission features upgraded components such as a valvebody, governor solenoid, and a high-pressure governor transducer offering twice the burst pressure of stock parts. It includes a heavy-duty rigid aluminum transmission pan with increased oil capacity and heat-dissipating fins, finished with a durable metallic texture. The ProForce torque converter is a triple disc design with a stamp-forged cover that prevents warpage and is engineered with tighter tolerances for enhanced longevity.

      _x000D__x000D_

      Installation. Installing this transmission requires moderate mechanical skill with an estimated completion time of approximately 7 hours and 30 minutes, which includes sensor swaps and cooler flushing. No drilling or major modifications are necessary for proper fitment.

      _x000D__x000D_

      Warranty. This transmission package includes a 36-month/150,000-mile parts warranty and a 12-month/24,000-mile labor warranty for peace of mind.

      _x000D__x000D_

      Application. Designed specifically for the 2005 to 2007 4WD 5.9L RAM 3500, this package ensures direct fitment and compatibility without requiring modifications.

      BD Power 1064234SS

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      4.7

      Reviews of BD Power Drivetrain Products (5)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Ram 3500

      • 5.9L I6 - 05, 06, 07
