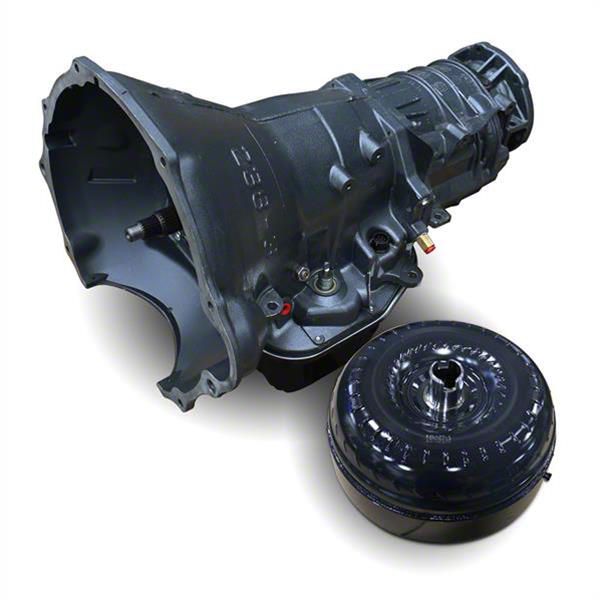

BD Power 48RE Transmission and Converter Package with Stage 5 Billet Input Shaft and ProForce 3D Converter; $2500 Core Charge Included (03-04 4WD 5.9L RAM 3500)Find parts that fit my vehicle
Item SHR25077
Our Price
$9,054.95
Military, Medical & First Responders
$452.75 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- Upgraded Valvebody _x000D_
- Upgraded Governor Solenoid _x000D_
- Upgraded Governor Pressure Transducer With Twice The Burst Pressure Of Stock _x000D_
- Increased Line Pressure To 190-200psi _x000D_
- No Shuttle Shifting Problems _x000D_
- Modified Manual Valve For Lube In All Positions _x000D_
- Stock Thrust Bushings Replaced With Roller Torrington Bearings _x000D_
- Direct Clutch Count Of Six _x000D_
- Forward Clutch Count Of Five _x000D_
- Overdrive Clutch Count Of Six _x000D_
- Overdrive Direct Clutch Count Of Ten _x000D_
- High Temp/Energy Raybestos Band _x000D_
- Billet Band Lever _x000D_
- Billet Band Strut _x000D_
- Billet Input Shaft To Withstand Snap From Rapid Throttle And High Horsepower _x000D_
- Billet Large Fine Spline Input Shaft _x000D_
- Drilled Intermediate Shaft For Increased Lubrication _x000D_
- Rigid Aluminum Heavy Duty Transmission Pan Adding Two Quart Extra Oil Capacity _x000D_
- Pan With Heat-Dissipating Fins To Keep Temperature Down _x000D_
- Magnetic Drain Plug _x000D_
- Auxiliary Full Flow Filter Kit For Extra Protection _x000D_
- Cooler Line Case Saver Included _x000D_
- Each Transmission Tested On Dyno _x000D_
- Triple Disc Torque Converter _x000D_
- Enhanced Stall For Street And Towing Applications _x000D_
- Heavy Duty Springs To Absorb Shock Of Engagement _x000D_
- Stamp Forged One-Piece Cover To Eliminate Warpage From Clutch Heat _x000D_
- Taller Cover Allowing More Frequent Rebuilds _x000D_
- Self-Centering Trapezoid Teeth Design To Increase Contact And Reduce Wear And Chatter _x000D_
- Thrust Bearings Instead Of Plastic Thrust Washers _x000D_
- Riveted Piston Ensuring Alignment And Eliminating Vibration Or Embrittlement From Welding _x000D_
- Cast Stator Design Maximizes Torque _x000D_
- New Sprag Components For Long-Term Durability _x000D_
- Furnaced Brazed Turbine Fins For Improved Fluid Coupling Efficiency _x000D_
- Reduced Weight By 12 Pounds Compared To Competitors _x000D_
- Fits 2003-2004 4WD 5.9L RAM 3500 _x000D_
Description
Advanced Transmission System. The BD Power 48RE Transmission and Converter Package with Stage 5 Billet Input Shaft and ProForce 3D Converter; $2500 Core Charge Included is a high-performance matched transmission and torque converter set engineered for reliability and durability in demanding conditions. It delivers enhanced power handling, smoother shifting, and increased drivetrain longevity for street, towing, and light track use. This unit ensures optimized performance in tough diesel applications.
_x000D__x000D_Construction and Appearance. Built with premium materials, including a billet large fine spline input shaft and heavy-duty rigid aluminum pan, this package features multiple billet components and upgraded internal parts designed to handle increased pressure and stress. The transmission pan includes heat-dissipating fins and a magnetic drain plug, while the torque converter utilizes a stamp forged one-piece cover and cast stator design. The finish is functional with durable metals optimized for heat resistance and wear reduction.
_x000D__x000D_Installation. Installation requires moderate mechanical skill with an estimated time of around eight hours. No drilling or major modifications are necessary to fit this direct replacement transmission and converter package, ensuring a straightforward swap.
_x000D__x000D_Warranty. The transmission parts are covered for 36 months or 150,000 miles, with labor warranted for 12 months or 24,000 miles.
_x000D__x000D_Application. This package fits the 2003-2004 4WD 5.9L RAM 3500 and is designed specifically for this model. It is not intended for race or sled pull use.
BD Power 1064194BM
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
4.7
Reviews of BD Power Drivetrain Products (5)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Ram 3500
- 5.9L I6 - 03, 04
