BD Power Xtrude Transmission Cooler with Fan and 3/8-Inch Lines (99-03 F-350 Super Duty)Find parts that fit my vehicle

Item SSD50914
Product Image
1 Reviews
Our Price

$735.95

Military, Medical & First Responders $36.80 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Reviews, Q&A

      Features

      • Please Note. Core and Refund Processed by BD Power - https://cores.bddiesel.com
      • 22% more cooling over other designs
      • Thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan
      • 33,930 BTU/HR and in excess of 30,000 GVW!
      • Kits complete with all fittings, clamps, hoses and hardware
      • Build-It-Yourself galvanized bracket kit for quick and easy installation - no wasting time fabricating brackets out of scrap metal

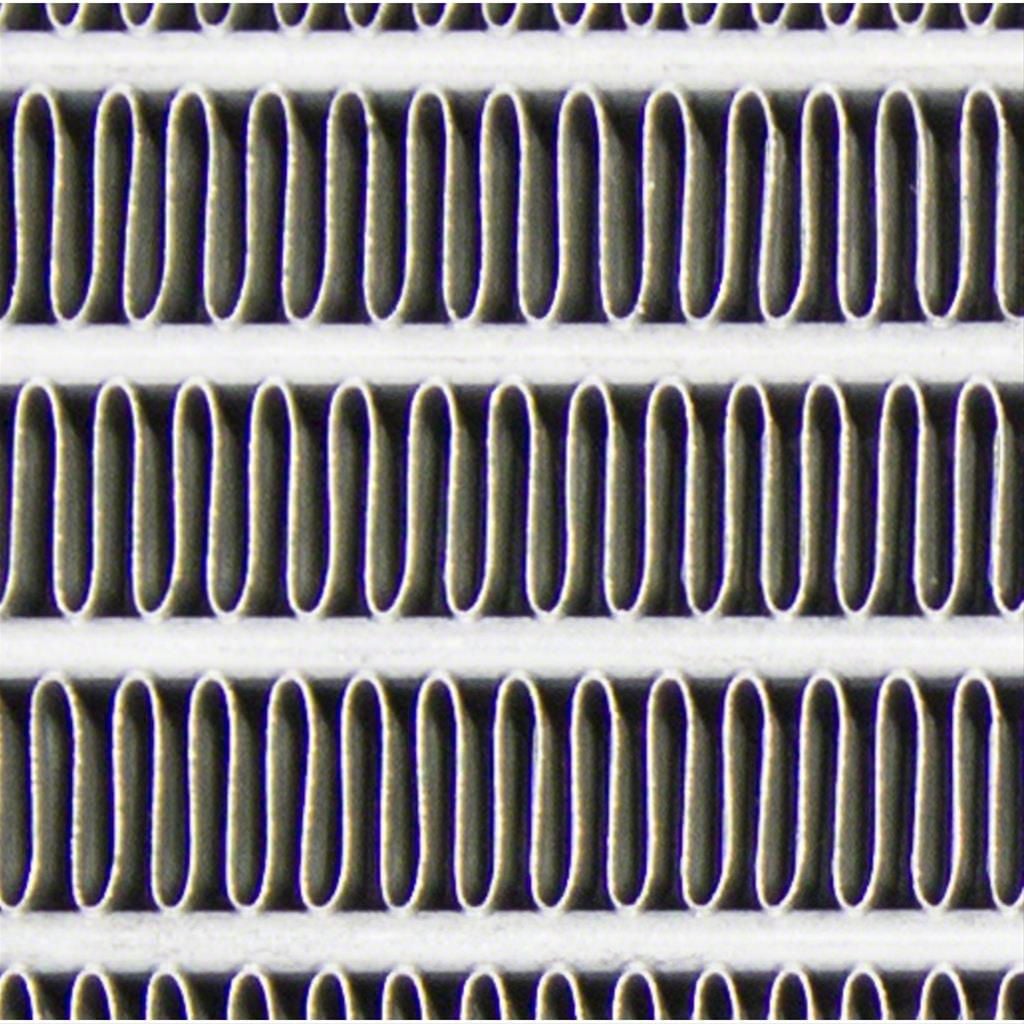

      • 200 Micro Extruded passages
      • The pre-wired loomed harness with fuse and relay comes with plug-in connectors
      • Chevy 1999-2000 4L80E - 3/8-inch Cooler Lines
      • Ford 1999-2003 4R100 - 3/8-inch Cooler Lines
      • Large surface area to transfer heat for external air flow cooling
      • Turbulent oil flow design promotes a more complete cooling
      • Large 5/8-inch ports prevents inlet/outlet restriction
      • Furnace brazed rails have been tested to 300psi of pressure

      Description

      Coolers, providing 22% more cooling over other designs. The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling. Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control. This combination gives BD's Xtruded Transmission Oil Cooler a rating of 33,930 BTU/HR and in excess of 30,000 GVW! Xtruded Transmission Oil Cooler packages come complete with all fittings, clamps, hoses, hardware and a Build-It-Yourself galvanized bracket kit for quicker and cleaner installation - no wasting time fabricating brackets out of scrap metal. The pre-wired loomed harness with fuse and relay comes with OEM style sealed connectors to resist elements and give factory-like install look.

      Please Note. Core and Refund Processed by BD Power - https://cores.bddiesel.com

      BD Power 1030606-3/8
