Installation Time
(approx) 6 Hours
Difficulty Level:
Mechanical expertise or professional installation required.
FREE 1 to 3-Day Delivery on Orders $149+ Details

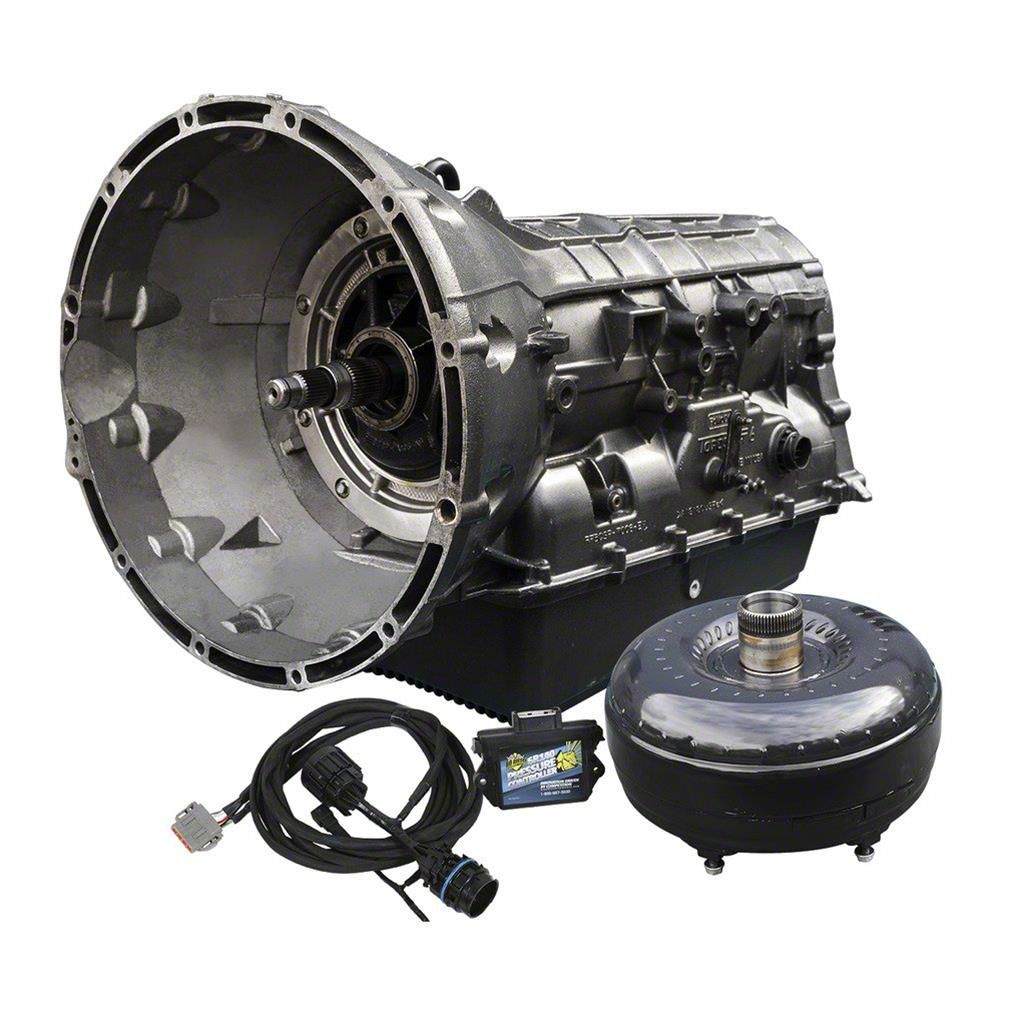

BD Power 6R140 Transmission and Converter Package; $2000 Core Charge Included (11-16 4WD 6.7L Powerstroke F-350 Super Duty)Find parts that fit my vehicle
Item SSD26065
Our Price
$8,594.95 kit
Military, Medical & First Responders
$429.75 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- Towmaster Ford 6R140 Transmission and Converter Package for 6.7L Power Stroke Engines
- Compatible with 2011 to 2016 Model Years
- Suitable for Both 2WD and 4WD Applications
- Forward Clutch Count Increased by 20 Percent to 6 Clutches
- Direct Clutch Count Increased by 20 Percent to 6 Clutches
- Intermediate Clutch Count Increased by 60 Percent to 8 Clutches
- Overdrive Clutch Count Increased by 14 Percent to 8 Clutches
- Low Reverse Clutch Count Is 5
- Includes Brand New Valve Body
- Electronic Line Pressure Controller Capable of 300 PSI Line Pressure
- Pressure Controller Provides 76 Percent More Clutch Holding Power
- Active Only When Boost Exceeds 15 PSI to Prevent Parasitic Load and Excess Heat
- Torque Converter Features Dual Surface Clutch Assembly
- Machined Steel Reaction Ring Replaces Flexible Factory Stamping
- Furnace-Brazed Pump and Turbine Fins for Enhanced Durability
- Fully Remanufactured Transmission and Converter Package
- Requires Ford Scanner for TCM Update and Relearn
- Installation Requires Transfer of Yoke Adapter and Rear Mount Bracket for 2WD Models
- Early 2011 Models Require 6-Bolt Flexplate
- Warranty Covers 36 Months or 150,000 Miles for Parts
- Warranty Covers 12 Months or 24,000 Miles for Labor
- Does Not Cover Race Abuse
- Product Is Emissions Legal Across All 50 States
- Fits 2011-2016 4WD 6.7L Powerstroke F-350 Super Duty
Description
Superior Transmission Package. The BD Power 6R140 Transmission and Converter Package is designed as a matched set, meticulously dyno tested to guarantee maximum performance and reliability. This package is ideal for heavy-duty towing, street driving, or track use, providing stronger clutches and a newly designed valve body to efficiently handle increased power and torque demands.
Construction and Appearance. The transmission features a significantly higher number of clutch plates than stock, incorporating custom patented pressure plates that maintain strength while increasing clutch count. The torque converter includes a dual surface clutch assembly, furnace-brazed pump and turbine fins, and a machined steel reaction ring replacing the flexible factory component. The unit is fully remanufactured with an emphasis on durability and long service life.
Installation. Installation complexity is moderate and requires approximately 12 hours to complete. It necessitates the use of a Ford scanner to update and relearn the transmission control module (TCM) for the new solenoid code, ensuring proper operation without drilling or major modifications. Additionally, 2WD models require the transfer of the yoke adapter and rear mount bracket. Early 2011 vehicles will require a 6-bolt flexplate during installation.
Warranty. This package includes a 36-month/150,000-mile warranty on parts and a 12-month/24,000-mile warranty on labor, excluding coverage for race abuse.
Application. Specifically designed to fit 2011 through 2016 4WD 6.7L Powerstroke F-350 Super Duty models. The product remains emissions legal across all 50 states.
BD Power 1064504SS
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Transmission and Converter Package
4.7
Reviews of BD Power Drivetrain Products (3)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My F-350
- 6.7L V8 Power-Stroke - 11, 12, 13, 14, 15, 16
