(approx) 1 Hour
Simple installation for anyone.
$499.99 (each)FREE Shipping

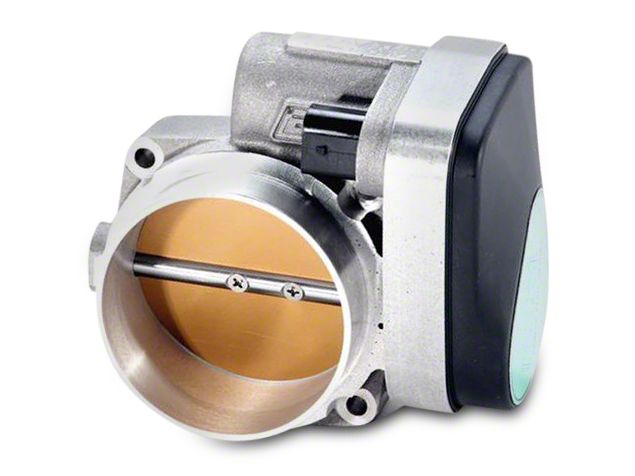

Hey guys, it's Joe from AmericanTrucks. And today we're gonna be taking a closer look at the BBK 90-millimeter Throttle Body fitting all '13 to '18 5.7-liter RAM 1500s. Now this guy right here is gonna be a great mod for your truck if you're looking to get a lot more throttle response and a little bit of horsepower at the same time with a great supporting mod. So, what do we have going on here with the BBK 90-mil? Well, this is made out of CNC machine 356 aluminum. It's got the same OEM electronics and the good part about that is you don't need a tune to run this thing. It plugs right in and you get to see all the benefits of a throttle body such as, again, that throttle response and a small amount of horsepower without having to re-tune your truck. Now, the good part about this is if you did wanna re-tune your truck, you would see even more gains from something like this. Now, other than that, we're gonna get this throttle body next to the factory one side by side in just a second here as soon as we show you how to uninstall this one and the differences between the two are gonna be few and far between. They're really strikingly similar. They got that same electronics box on the side over here, CNC construction, made out of aluminum. This does have a little bit of a nicer machined surface. You have the BBK logo right up front here. So that's all a nice touch but other than that, they're gonna be pretty much the same exact thing except for one big difference here and that is gonna be the diameter of the throttle body itself. Now we did our measurements here. We worked out some of the calculations. Area of a circle is pretty simple, right. And this 90-millimeter throttle body, it's gonna be about 25% bigger if you're measuring that area of this circle here and what that's gonna net for you is just more airflow through this thing. More cubic feet per minute is gonna be able to go through this throttle body and basically, engines in any car are just big air pumps. The more O2 we could supply into our engine, the more fuel we're gonna be able to burn and that is what's gonna net you that horsepower. Another great benefit about the BBK 90-millimeter here is that it's CARB certified. So if you live in a state that is a little bit more restrictive on modification for your vehicle, this is gonna pass inspection without question every single time. Now I mentioned earlier, this is gonna be a great supporting mod and what I meant by that is this is going to be one of the things that is going to come later in the modification lifestyle in your truck, right. To get the most out of this thing, you should probably have a high-performance intake manifold, at least a cold air intake and you're gonna see even more gains, more throttle response, more horsepower. Now, that's not to say this is a bad place to start. However, I would recommend this only if you do have future modifications planned for your 5.7 Hemi. But other than that, this is a really nice piece here. Coming in at around the $500 mark, you really are getting your money's worth. You get a very nice OEM-built quality throttle body. You get that larger diameter which, again, is gonna allow you to push some more air through into your engine which is gonna net you some horsepower, throttle response. Definitely well worth the money here. Even comes with a limited lifetime warranty from BBK. Now the install for this is going to be extremely easy. Definitely looking at a one out of three wrenches here. No modifications or cutting required to get this installed on your intake manifold. Just takes a basic socket set, an extension and a ratchet to get this done. At most, I would allot an hour to do this whole thing from start to finish. So, without any further ado, let me show you exactly what tools you'll need and how it's done. Tools required for this install are going to include a ratchet, small extension, eight-millimeter socket. And this intake tube is going to be pretty tight. This is a big throttle body, right. So if you plan on using your factory intake, it's gonna be a tight squeeze and I used this trim panel removal tool right here to, sort of, pry the intake tube around the throttle body and also, this awl with a hook at the end was pretty helpful as well. So the first step to our install here, obviously, we have to open up the hood and there's a couple of wiring harnesses we need to unplug, one on the intake tube and one on our stock throttle body. So this one has a tab on the bottom of it to release it and we can just put that aside. This one over here on the throttle body, you have to pull out this red release. [inaudible 00:04:19] push down on that one as well and that should pull away as well. So next, we're going to take our eight-millimeter socket. I have a small extension here on the ratchet. We're just gonna loosen up this hose clamp around our intake tube and then we're gonna pull that away and put it to the side. So now to get that intake tube out of the way, we're just gonna come over here and remove the top half of the airbox. That's got four clips on it, one on the front right there, two on the sides and there's one in the back. We're just gonna unclip all those and then this hose right here needs to come off as well. That should just pull straight off and then you should be able to lift this up and out of the way. Now we're gonna remove this big plastic engine cover that just pulls right up at the front. It should unclip. Just gotta remove this hose here then we can pull this right off of the truck. Now once you have that aside, you should finally have a clear shot at the stock throttle body here. It's held on with four eight-millimeter bolts. We're just gonna remove those and these are only threaded in the plastic so if you're using a power tool, go very gently. I would highly recommend using hand tools for this step because if you strip those plastic threads out, you're gonna be replacing your intake manifold. So with this last bolt our throttle body should be free. You can pull that up and right off of the truck. So now that we have our factory throttle body off of our truck, I figured now would be the perfect time to stop down, put it next to our new BBK throttle body and point out some of the key differences here which, on the surface level, do seem to be few and far between. These things both have extremely similar build quality. That aluminum OE factory grade stuff is really nice. The BBK over on this side, though, does have some nice machined surfaces unlike the factory one, and up top here, we do have a BBK logo where on the factory throttle body there is just nothing up there. As far as the electronics go, again, the BBK plugs right in and they even look really similar on the sides here as far as the motors and the electronics go. Now, the key difference is going to come in the size of these two circles right here and it might not be as obvious because we're working with the area of these two circles. Now we know our BBK is 90 millimeters across. That's in diameter. I measured our factory one, we're looking at around 80 millimeters. Doing a quick calculation on the area of those two circles, our new BBK unit is approximately 25% bigger than our factory unit over here and that's just going to allow you to push more air. You should feel some more throttle response and we all know engines are just big air pumps, right. So the more air you can get through it, the more power you're going to be making. So, this BBK is going to be a huge upgrade. It might not be overtly obvious but believe me, we've done the calculations. This circle on this BBK throttle body is approximately 25% bigger than that stock throttle body. So what we're gonna do next is head back to our truck. We're gonna take this BBK throttle body, put it down onto our intake manifold and tighten it up with those eight-millimeter bolts from earlier. Now, again, these are only going into plastic threads here. So we're just gonna get that tight so the gasket on the intake manifold can seal and just like tightening down a tire, we're just gonna jump over straight across and we're gonna tighten this down in an X pattern. Now we can come over to this one that I dropped in earlier. Give that a little bit of pressure. Finally this corner all the way up here. So that's pretty much the throttle body installed. For the rest of our install here, we're just gonna be rebuilding up our engine bay. We're gonna start with this cover which goes straight back and then pushes down. Wanna make sure you get that hose seated as well and that locks into place like so. Now we're just gonna rebuild the rest of our engine bay here. We're gonna start with the top half of the airbox. That's just gonna click on like so. You wanna make sure this seals with teeth on the inside edge of the airbox and then we could reinstall these clips. Two on the side, one on the back and this one which fell off is going on the front right here. Then we can reinstall this breather hose right to that fitting on the side of the box. And then we can come over to our intake tube here and force that down over our throttle body and this is going to put up a fight here because this throttle body is so much bigger than our factory one. So we're just gonna work at this for a little bit and once you get it around, we're gonna tighten that hose clamp down with an eight-millimeter socket. Now I'm just gonna hold this down and tighten the clamp with an eight-millimeter socket. So to wrap up this install, we're just going to plug in our electronics and that'll be it. Now that is gonna do do it, guys, for my review and install of the BBK 90-millimeter Throttle Body fitting all '13 to '18 5.7 RAM 1500s. Thank you guys for watching. As always, make sure you subscribe for more videos like this one and keep it right here at AmericanTrucks for all things RAM.
Subscribe to our YouTube Channel
Features, Description, Reviews, Q&A, Specs & Installation
Achieve Performance Gains. If you're not satisfied with the stock throttle body on your 2013-2018 5.7L Dodge RAM, install a BBK 90mm Throttle Body and achieve increased performance. This throttle body also increases horsepower and airflow for better throttle response. Free your truck from the restrictive stock throttle body with a BBK 90mm throttle body that features an 90mm bore design.
No Tune Required. These Power Plus Series Throttle Bodies are designed to work with a factory tune in most cases. Depending on ECM sensitivity on your model and other modifications, a tune is sometimes recommended. While it's not normally required, a tune will not only allow the vehicle to work with certain aftermarket add ons but will also improve overall performance of your entire array of upgrades to work together as a whole and can normally update such items as the factory torque limit functions.
Durable Construction. This BBK 90mm Throttle Body is manufactured from high-grade 356 aluminum that will ensure a precision fit with OEM quality. Factory OEM electronic throttle controls like die stamped throttle linkages, o-ringed throttle shafts, and double sealed bearings will work to bring you optimal performance and satisfaction.
Easy Bolt-on Installation. BBK manufactures its throttle body products as a simplied bolt-on upgrade. Because installation occurs in the stock location, no additional modifications are required. Installation is simple and can be completed in about 1 hour.
One Year Limited Warranty. BBK offers a warranty against material or craftsmanship defects for a one year period from the actual date of purchase.
CARB Certified. This BK 90mm Throttle Body is covered by the new CARB EO# D-245-21. This means it is 50-state smog legal.
Application. This BBK 90mm Throttle Body is designed to fit 2013-2018 5.7L Dodge RAM trucks.
Fitment: 2013 2014 2015 2016 2017 2018 Details
CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
June 02, 2019
I installed this throttle body along with a KandN. I has to stretch the KandN to fit but after it gave my truck significant power boosts. It also now makes a nice deep growl when I really get on the pedal.Helpful (9)
March 25, 2019
BBK 90mm Throttle Body
Wish this came with some instructions. Stock intake tube will not fit over this throttle. I bought a aftermarket K and N intake and installed together. I can definitely feel a increase in power. Did through a throttle body code a bunch of times so I took it off and reinstalled. Seems to be working great now.Helpful (10)
February 20, 2019
2014 Ram 5.7 DO NOT BUY
Try not to be to long winded. I bought and installed this product. does not fit with stock intake pipe nor the aftermarket intake pipe. Also once installed even after following direction and "re learning" throttle multiple times. Still throws codes and truck goes into limp mode. After much research (unfortunately after purchasing) I am returning this product. So stock throttle body is an 80mm with only 82mm opening on the manifold. This 90mm is just plain out to big to run proper unless you are going all out and adding superchargers and what not. Do yourself a favor and stick with and 85 or 87. The 87 works very good and actually has a funnel shape that forces air in quicker and no codes thrown or "re learning process". You will thank me later.Helpful (18)
January 18, 2019
Did not work on my truck.
I have a 2015 Dodge Ram Express and the intake hose connection DOES NOT FIT on this throttle body. It's not even close. I tried a little grease and even tried heating up the hose. Nothing worked. The throttle body is too big to connect the factory intake hose. I didn't want to "butcher" my intake hose to make it work. I was really looking forward to this throttle body to help the throttle lag during acceleration. Takes three weeks to get the refund.Helpful (16)
May 11, 2018
The throttle body that I bought works great the 90 mm it took me 15 minutes to put it in the response to the pedal is great I recommend it to anyone.Helpful (48)
how much more horsepower brings the 90mm throttle flap? What else will be better? Are there any negative?
This will gain anywhere from 10-15 HP.
is this throttle body a smooth bore or does it taper
This is a smooth bore.
I have the K N Blackhawk intake, will it fit over this 90mm throttle body?
The K&N Blackhawk Cold Air Intake will work with the BBK 90mm Throttle Body. Stretching of the coupler or a step up coupler may be necessary for proper installation.
This being a 90mm, what is OEM Part size? Thanks.
The OEM throttle body is 80mm.
Does this come with a gasket? Do I need a gasket? If I do need a gasket, will a OEM gasket work?
The BBK 90mm Throttle Body will reuse the OEM rubber gasket, as well as the OEM bolts.
This will fit all 2018 RAM 5.7L models.
BBK manufactures its throttle body products as a simplied bolt-on upgrade. Because installation occurs in the stock location, no additional modifications are required. Installation is simple and can be completed in about 1 hour.
Technically, products themselves aren't affecting the tuner. You are either adjusting manually if it is a preloaded tuner, or requesting for your custom tuner to create a tune adjustment for you to upgrade your truck with.
(approx) 1 Hour
Simple installation for anyone.
What's in the Box
