Barricade 12,000 lb. Winch

Market Price $475.99 You Save 16% ($76.00)
Our Price


FREE Shipping

  • Item S502195
In Stock Ships same business day.
Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    Features & Details

    • 12,000 lb. (5443 Kgs.) Single-Line Pulling Rating
    • 6.6 HP 12-Volt Series Wound Electric Motor
    • 3 Stage Planetary Gear with 187.2:1 Gear Ratio
    • 94 Feet of 21/64-Inch Steel Winch Rope with Replaceable Hook
    • Wired Remote Switch with 12 Foot Lead
    • Durable Black Powder Coat Finish
    • Hook and Roller Fairlead are Included
    • Overall Dimensions: 21.1" × 6.3" × 8.6"
    • Mounting Bolt Pattern: 254mm X 114.3mm
    • Weight - 58 lbs.
    • Fits All 2007-2019 GMC Sierra 1500 Models
    12,000 lb of Recovery Power. If you consider yourself an off-roader, you know the importance of having a reliable recovery system, even on the easiest of trails. It is just for this reason that you should outfit your Sierra with a 12,000 lb Heavy Duty Winch from Barricade Off-Road. This Barricade Winch, which boasts a 6.6 horsepower motor, will be able to pull you or your friends out of the messiest of situations both on and off the trail.

    Heavy Duty 12,000 LB Winch. This Barricade Off-Road Winch is driven by a powerful 6.6 HP series-wound 12-volt electric motor and features a rugged 3-stage planetary gear box with a 187.2:1 gear ratio to provide 12,000 lbs of pulling power. Matched with a sliding ring gear clutch and a two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig.

    Additional Features. This Barricade Off-Road 12,000 lb Winch features a 4-way aluminum roller fairlead that helps reduce wear and tear on the 94 feet of 21/64" steel cable, as well as keeping it from binding. This Barricade Winch also includes a wired remote control with a 12 foot lead, allowing you to safely stand clear when in operation.

    Simple, Bolt-on Installation. Barricade engineered their winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. With overall dimensions of 21.1" × 6.3" × 8.6" and a mounting bolt pattern of 254mm X 114.3mm, there should be no drilling required for most applications. All necessary mounting hardware is included, making this an easy straight forward installation. This Barricade Off-Road 12,000lb Winch is designed for use on all 2007-2019 GMC Sierra 1500 models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.

    Line Pull Speeds
    • 0 lbs. - 33.3 ft./min
    • 4000 lbs. - 16.8 ft./min
    • 6000 lbs. - 12.8 ft./min
    • 8000 lbs. - 10.1 ft./min
    • 10000 lbs. - 8.8 ft./min
    • 12000 lbs. - 7.6 ft./min

    Barricade Off-Road

    Fitment: 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 Details

    MPN# S502195

    CA Residents: WARNING: Cancer and Reproductive Harm -

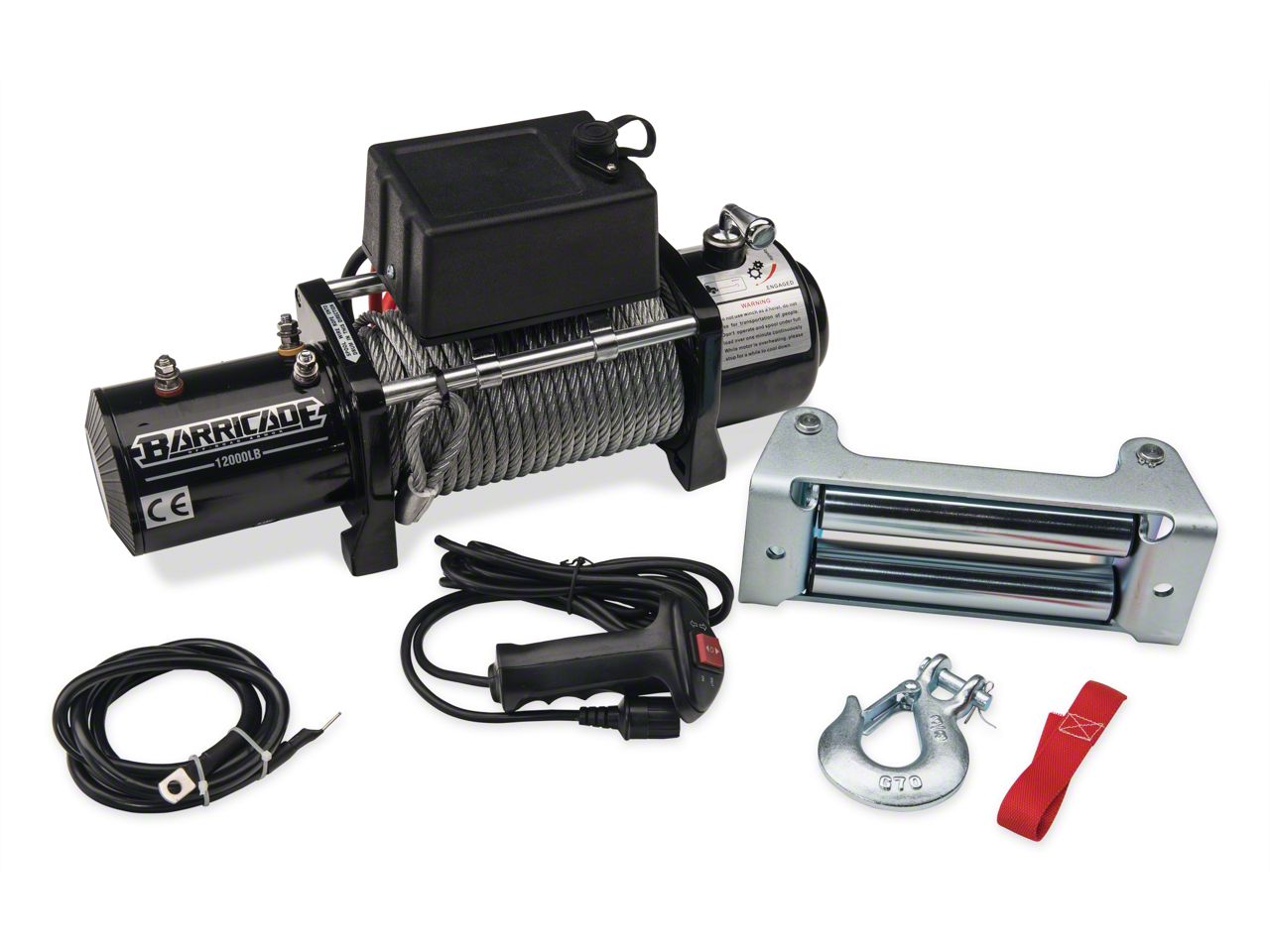

    What's in the Box
    • 12000 lb. Winch
    • Steel Winch Cable
    • Roller Fairlead
    • Remote Control Lead
    • Solenoid
    • Wiring Harness
    • Cable Hook
    • Red Line Flag
    • Hardware
    Installation Info
    Tech Specs
    • Manufacturer: Barricade Off-Road
    • Line Capacity: 12000lb
    • Motor Specs: 6.6 HP, 12-Volt Series Wound
    • Line Type: Steel (94ft)
    • Gear System: 187.2:1, Planetary
    • Warranty: Limited Lifetime Warranty
