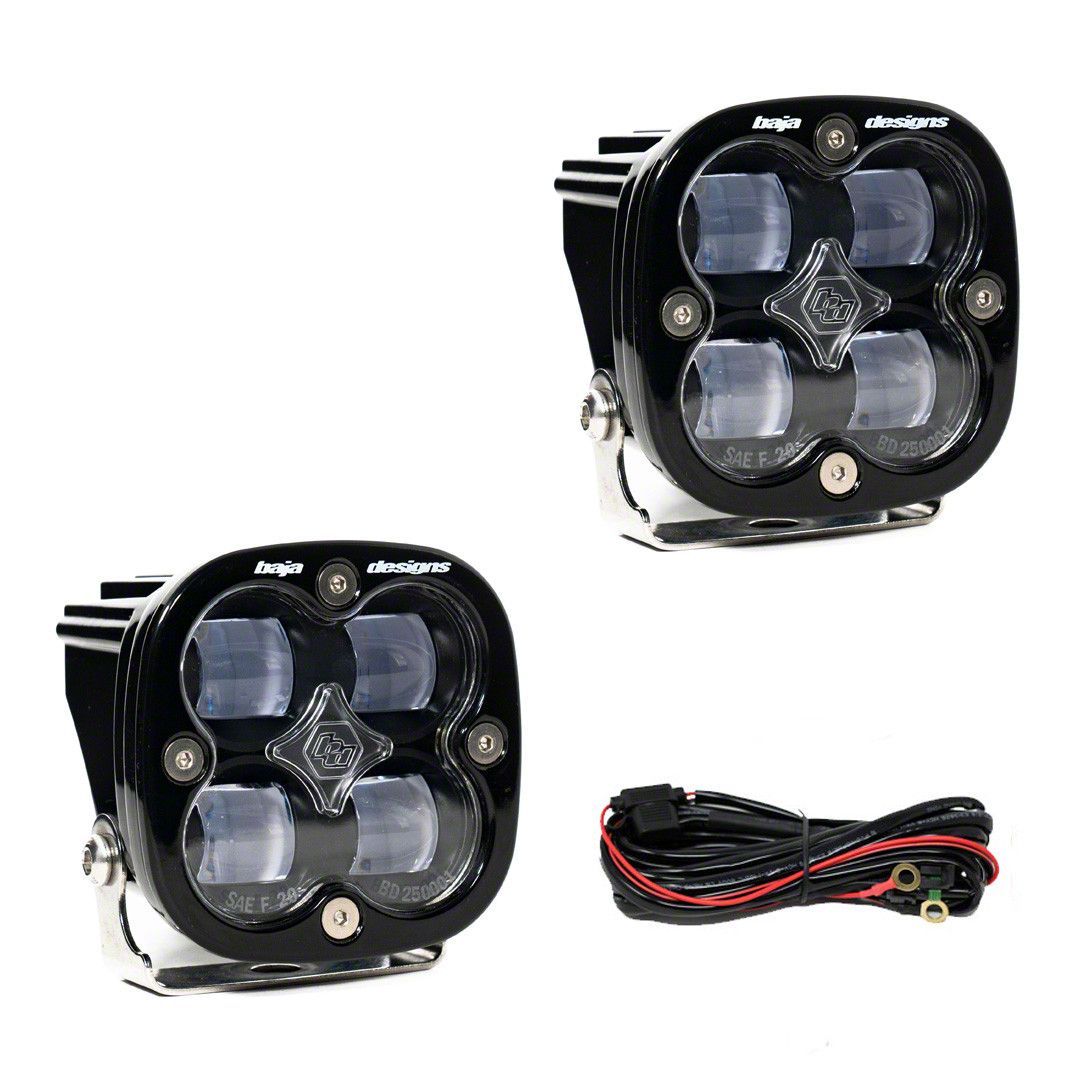

Baja Designs Squadron SAE LED Auxiliary Light Pods; Clear (Universal; Some Adaptation May Be Required)

Item S556788
Our Price

$349.95 set

Military, Medical & First Responders $17.50 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Next Generation Squadron SAE Perfect Road-Legal Auxiliary Fog Light
      • _x000D_
      • Engineered With All-New Aspheric Projector Optics
      • _x000D_
      • Advanced LED Technology Provides 56% Performance Increase In Luminous Flux Over Previous Generation
      • _x000D_
      • Delivers 2,420 Lumens Per Light With Output Reaching Up To 15,800 Candela At Just 29 Watts
      • _x000D_
      • Illuminates Zone 1 With Controlled Sharp Cutoff For Driving Through Dust, Fog, And Inclement Weather
      • _x000D_
      • Meets Current SAE J583 Fog Lamp Requirements
      • _x000D_
      • Fully Compliant With On-Road Regulations
      • _x000D_
      • Limited Lifetime Warranty And 30-Day Satisfaction Guarantee
      • _x000D_
      • Waterproof, Rain Proof, Submersible Design
      • _x000D_
      • 100 Percent LED Driven CopperDrive Technology
      • _x000D_
      • 5000K Daylight Color Temperature For Less Driver Fatigue And Natural Color
      • _x000D_
      • Dimensions 3.07 Inch Length x 3.07 Inch Height x 2.77 Inch Depth
      • _x000D_
      • Weight 0.75 Pounds
      • _x000D_
      • Amperage 2.1 Amps
      • _x000D_
      • Average Rated Life 49,930 Hours
      • _x000D_
      • Bezel Material Powder Coated Cast Aluminum
      • _x000D_
      • Housing Material Hard Anodized And Powder Coated Cast Aluminum
      • _x000D_
      • Lens Material Hardcoated Polycarbonate
      • _x000D_
      • Light Source Cree LED With Forward Projecting Technology
      • _x000D_
      • Lighting Quantity 2 Lights Per Pair
      • _x000D_
      • Lighting Modes Beam
      • _x000D_
      • Mounting Hardware Stainless Steel Included
      • _x000D_
      • Built-In Overvoltage Protection
      • _x000D_
      • Wiring Harness Included
      • _x000D_
      • Exceeds MIL-STD810G Durability Standards
      • _x000D_
      • IP69K Waterproof And Pressure Washable
      • _x000D_
      • IK10 Impact Resistance Mechanical Testing Compliant
      • _x000D_
      • Street Legal, Not DOT Approved
      • _x000D_
      • Fits Universal; Some Adaptation May Be Required
      • _x000D_

      Description

      Advanced Auxiliary Lighting. The Baja Designs Squadron SAE LED Auxiliary Light Pods clear provide powerful, road-legal fog lighting designed to enhance visibility in challenging conditions such as fog, dust, and inclement weather. These pods offer a controlled sharp cutoff beam pattern that improves safety by illuminating Zone 1 for safer driving on-road or off-road. Their high lumen output and longevity make them a reliable choice for auxiliary lighting applications.

      Construction and Appearance. Constructed from hard anodized and powder coated cast aluminum for superior durability and corrosion resistance, these light pods feature a clear hardcoated polycarbonate lens. The bezel is powder coated cast aluminum with a black housing that combines rugged protection with a refined look, suitable for demanding environments.

      Installation. Installation is straightforward with included stainless steel mounting hardware and wiring harness. Typically, no drilling is required, making mounting hassle-free for most universal applications, although some adaptation may be necessary depending on vehicle specifics.

      Warranty. These light pods come with a limited lifetime warranty ensuring quality and long-term product protection.

      Application. Designed to fit universally with some adaptation required based on specific vehicle configurations. They are compliant with SAE J583 standards and street-legal, suitable for a wide range of vehicles and lighting needs.

      Baja Designs 257801

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 2 Hours

      Difficulty Level:

      Simple installation for anyone.

      Installation Guides

      What's in the Box

      • (2) LED Light Pods
      • (1) Wiring Harness
      • Mounting Brackets
      • Hardware
      • Instruction Manual
