Find Light Bars & Off-Road Lighting for your Sierra 1500

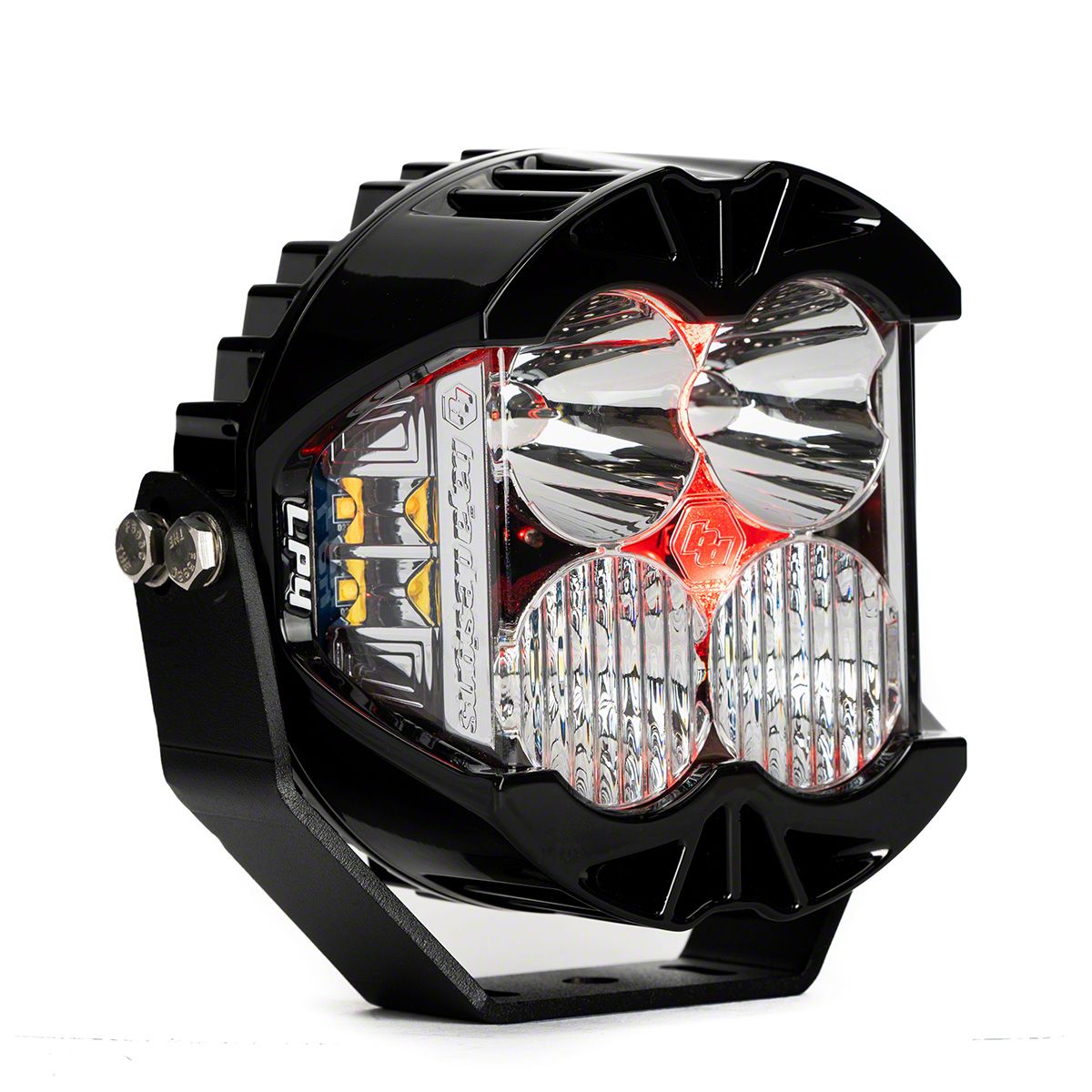

Baja Designs LP4 Pro LED Auxiliary Light Pod with Red Backlight; Driving/Combo Beam; Clear (Universal; Some Adaptation May Be Required)
Item S556741
Our Price
$437.95
Military, Medical & First Responders
$21.90 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Lens Color Clear _x000D_
- Lens Material Hardcoated Polycarbonate _x000D_
- Light Quantity 1 _x000D_
- Lighting Modes Beam/Day-Time Running Backlighting _x000D_
- Lighting Quantity 4 _x000D_
- Lighting Technology LED _x000D_
- Lighting Type Forward Projecting _x000D_
- Mounting Hardware Included Yes _x000D_
- Mounting Hardware Material Stainless Steel _x000D_
- Overvoltage Protection Built-In _x000D_
- Product Type LP4 Pro LED Light Pod _x000D_
- Secondary Amperage Rating 1.000 Ampere _x000D_
- Secondary Brightness 1972 Lumens _x000D_
- Secondary Light Quantity 4 LEDs _x000D_
- Secondary Lighting Technology LED _x000D_
- Secondary Lighting Type Integrated Peripheral Technology IPT _x000D_
- Secondary Wattage 15 Watts _x000D_
- Terminal Connector DT06-4S Deutsch _x000D_
- Terminal Type Mating Connector _x000D_
- Universal Or Specific Universal _x000D_
- Wattage 75.900 Watts _x000D_
- Wiring Harness Included No _x000D_
- Amperage Rating 5.500 Ampere _x000D_
- Average Rated Life 49,930 Hours _x000D_
- Backlight Amperage Rating 0.350 Ampere _x000D_
- Backlight Wattage 4.830 Watts _x000D_
- Beam Pattern Spot _x000D_
- Bezel Material Powder Coat Cast Aluminum _x000D_
- Brightness 8857 Lumens _x000D_
- Description Spot Clear _x000D_
- Housing Color Black _x000D_
- Housing Material Powder Coat Cast Aluminum _x000D_
- Standards Compliance Durability Exceeds MIL-STD810G Mil-Spec Testing _x000D_
- Standards Compliance Impact Resistance IK10 Compliant Mechanical Impact Testing _x000D_
- Standards Compliance Water Resistance IP69K Waterproof Up To 9ft & Pressure Washable _x000D_
- Depth 3.200 Inch _x000D_
- Height 5.100 Inch _x000D_
- Length 5.100 Inch _x000D_
- Weight 2.800 Pounds _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Baja Designs |
| Bulb Type | LED |
| Light Shape | Square |
| Light Size | 3 to 3.75 Inch |
Description
High Performance Lighting. The Baja Designs LP4 Pro LED Auxiliary Light Pod with Red Backlight; Driving/Combo Beam; Clear offers exceptional illumination with a powerful 8,857 raw lumen output. Designed for a wide 200-degree spread, it lights up front and peripheral zones for enhanced visibility in off-road or auxiliary driving applications. This compact light pod is ideal for enthusiasts seeking advanced, multi-functional lighting.
_x000D_Construction and Appearance. Constructed with powder-coated cast aluminum housing and a hard-coated polycarbonate lens, this light pod combines durability with a sleek black finish. Stainless steel mounting hardware provides corrosion resistance and longevity, while the integrated peripheral technology and distinct bezel shape deliver a modern, high-tech look.
_x000D_Installation. Installation requires basic mounting with included stainless steel hardware and does not typically require drilling. Wiring harness is sold separately, allowing for flexible integration into existing vehicle lighting systems.
_x000D_Warranty. Includes a limited lifetime warranty ensuring reliability and customer satisfaction.
_x000D_Application. Fits universal; some adaptation may be required.
Baja Designs 290014
