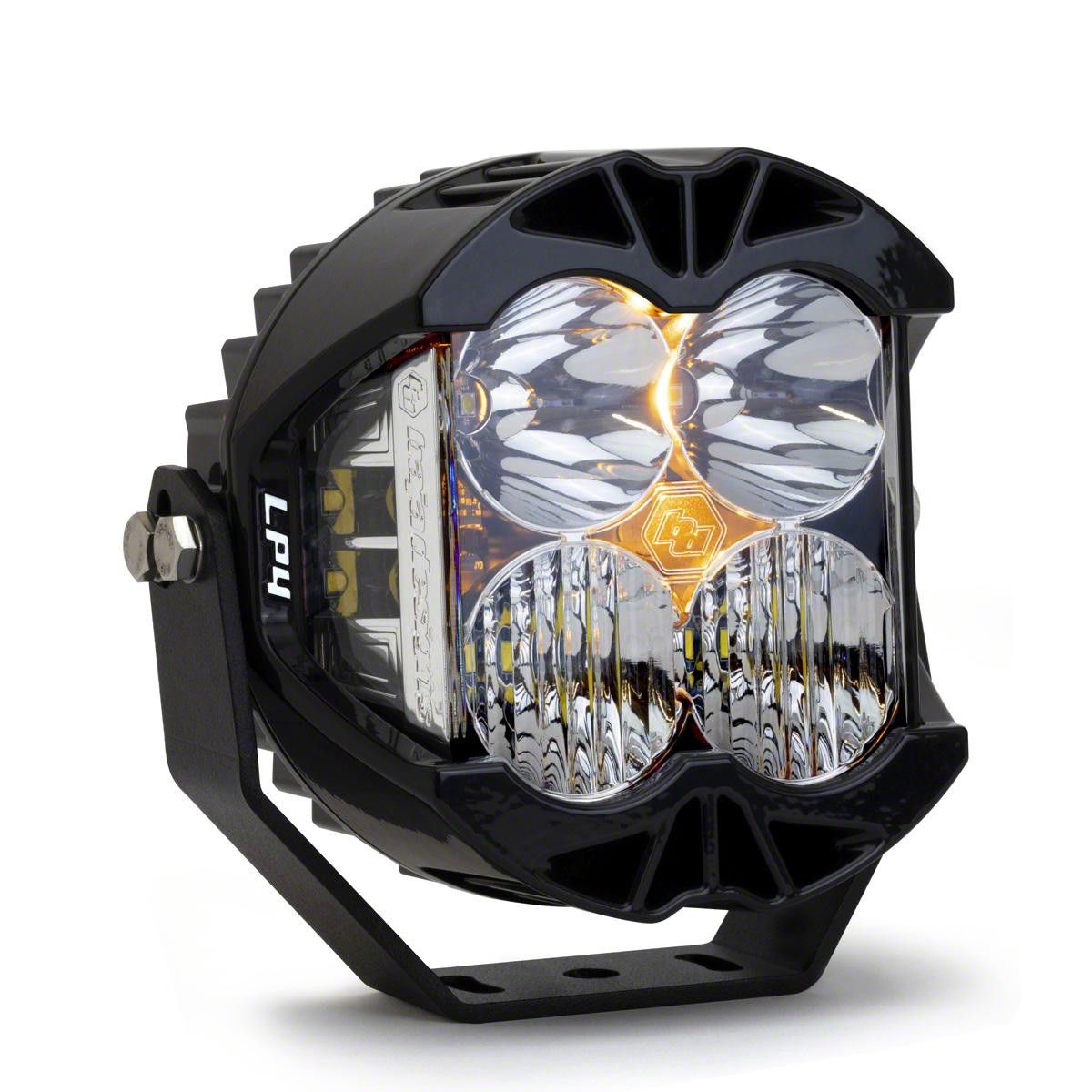

Baja Designs LP4 Pro LED Auxiliary Light Pod with Amber Backlight; Driving/Combo Beam; Clear (Universal; Some Adaptation May Be Required)

Item S556737
Our Price

$481.75 each

Military, Medical & First Responders $24.09 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Mounting Hardware Material Stainless Steel
      • _x000D_
      • Overvoltage Protection Built-In
      • _x000D_
      • Product Type LP4 Pro LED Light Pod
      • _x000D_
      • Secondary Amperage Rating 1.000
      • _x000D_
      • Secondary Brightness 1972 Lumens
      • _x000D_
      • Secondary Light Quantity 4 LEDs
      • _x000D_
      • Secondary Lighting Technology LED
      • _x000D_
      • Secondary Lighting Type Integrated Peripheral Technology IPT
      • _x000D_
      • Secondary Wattage 15 Watts
      • _x000D_
      • Terminal Connector DT06-4S Deutsch
      • _x000D_
      • Terminal Type Mating Connector
      • _x000D_
      • Universal Or Specific Universal
      • _x000D_
      • Wattage 75.900 Watts
      • _x000D_
      • Wiring Harness Included No
      • _x000D_
      • Amperage Rating 5.500
      • _x000D_
      • Average Rated Life 49,930 Hours
      • _x000D_
      • Backlight Amperage Rating 0.350
      • _x000D_
      • Backlight Wattage 4.830 Watts
      • _x000D_
      • Beam Pattern Driving/Combo
      • _x000D_
      • Bezel Material Powder Coat Cast Aluminum
      • _x000D_
      • Brightness 8857 Lumens
      • _x000D_
      • Description Driving/Combo; Clear
      • _x000D_
      • Housing Color Black
      • _x000D_
      • Housing Material Powder Coat Cast Aluminum
      • _x000D_
      • Lens Color Clear
      • _x000D_
      • Lens Material Hardcoated Polycarbonate
      • _x000D_
      • Light Quantity 1
      • _x000D_
      • Lighting Modes Beam and Daytime Running Backlighting
      • _x000D_
      • Lighting Quantity 4
      • _x000D_
      • Lighting Technology LED
      • _x000D_
      • Lighting Type Forward Projecting
      • _x000D_
      • Mounting Hardware Included Yes
      • _x000D_
      • Standards Compliance Exceeds MIL-STD-810G Mil-Spec Testing
      • _x000D_
      • Impact Resistance IK10 Compliant Mechanical Impact Testing
      • _x000D_
      • Water Resistance IP69K Waterproof up to 9ft and Pressure Washable
      • _x000D_
      • Depth 3.200 Inches
      • _x000D_
      • Height 5.100 Inches
      • _x000D_
      • Length 5.100 Inches
      • _x000D_
      • Weight 2.800 Pounds
      • _x000D_
      • Fits Jeep 2020-2025 Gladiator; 2018-2025 Wrangler JL with OE Steel Bumper
      • _x000D_

      Description

      Advanced LED Lighting. The Baja Designs LP4 Pro LED Auxiliary Light Pod with Amber Backlight and Driving/Combo Beam in clear lens is engineered to deliver powerful forward and peripheral illumination, significantly enhancing visibility in off-road and nighttime conditions. This lighting solution integrates seamlessly with factory upfitter systems and popular switch control units to simplify installation and operation. Its high lumen output and broad beam pattern make it an essential upgrade for improved driving safety and performance.

      _x000D__x000D_

      Construction and Appearance. Crafted from powder-coated cast aluminum, the light pod offers durable protection against environmental damage while maintaining a sleek black finish. The lens is made from hardcoated polycarbonate to resist scratches and impacts. Stainless steel mounting hardware and built-in overvoltage protection contribute to a robust and long-lasting assembly suitable for rigorous off-road use.

      _x000D__x000D_

      Installation. Installation is straightforward with included mounting hardware and Deutsch mating connectors. Designed for specific factory bumper compatibility, no additional modifications or drilling are typically necessary when mounting on the OE steel bumper of compatible Jeep models.

      _x000D__x000D_

      Warranty. This product is backed by a limited lifetime warranty, ensuring purchase protection and quality assurance for the user.

      _x000D__x000D_

      Application. Fits Jeep Gladiator models from 2020 to 2025 and Jeep Wrangler JL models from 2018 to 2025 equipped with original equipment steel bumpers. Compatibility outside these parameters requires verification.

      Baja Designs 290003

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 1 Hour

      Difficulty Level:

      Simple installation for anyone.

      Installation Guides

      What's in the Box

      • (1) Light and bracket
      • (1) Hardware pack including 1/4”-20 bolts and 3/8” hardware
      • (1) Center 3/8" bolt
      • (2) Longer 1/4”-20 bolts
      • Washers associated with the bolts
      • O-ring
      • (6) Bolts for LP9 bezel installation
      • (4) Bolts for LP6 & LP4 bezel installation
      • Bezel
      • 64-0172, LP9 Pro Wire Harness (includes switch, relay PN: 4RD 933 332-18, connectors, and wire)
