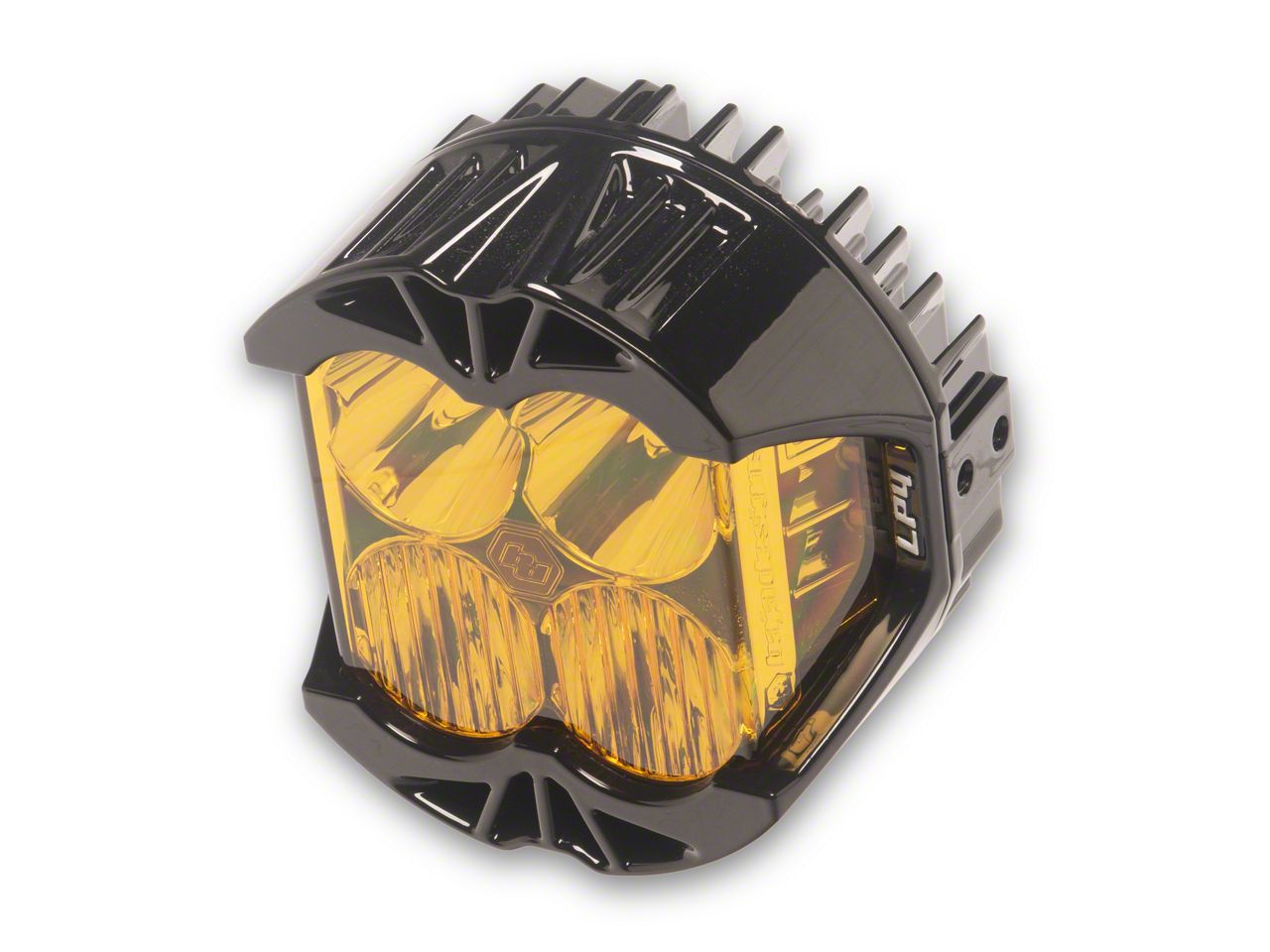

Baja Designs LP4 Pro LED Auxiliary Light Pod with Amber Backlight; Driving/Combo Beam; Amber (Universal; Some Adaptation May Be Required)

Item SSD33064
Our Price

$437.95 each

Military, Medical & First Responders $21.90 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Lens Color Clear
      • _x000D_
      • Lens Material Hardcoated Polycarbonate
      • _x000D_
      • Light Quantity 1
      • _x000D_
      • Lighting Modes Beam/Day-Time Running Backlighting
      • _x000D_
      • Lighting Quantity 4
      • _x000D_
      • Lighting Technology LED
      • _x000D_
      • Lighting Type Forward Projecting
      • _x000D_
      • Mounting Hardware Included Yes
      • _x000D_
      • Mounting Hardware Material Stainless Steel
      • _x000D_
      • Overvoltage Protection Built-In
      • _x000D_
      • Product Type LP4 Pro LED Light Pod
      • _x000D_
      • Secondary Amperage Rating 1.000 A
      • _x000D_
      • Secondary Brightness 1972 Lumens
      • _x000D_
      • Secondary Light Quantity 4 LEDs
      • _x000D_
      • Secondary Lighting Technology LED
      • _x000D_
      • Secondary Lighting Type Integrated Peripheral Technology (IPT)
      • _x000D_
      • Secondary Wattage 15 W
      • _x000D_
      • Terminal Connector DT06-4S Deutsch
      • _x000D_
      • Terminal Type Mating Connector
      • _x000D_
      • Universal Or Specific Universal
      • _x000D_
      • Wattage 75.900 W
      • _x000D_
      • Wiring Harness Included No
      • _x000D_
      • Amperage Rating 5.500 A
      • _x000D_
      • Average Rated Life 49,930 Hr.
      • _x000D_
      • Backlight Amperage Rating 0.350 A
      • _x000D_
      • Backlight Wattage 4.830 W
      • _x000D_
      • Beam Pattern Driving/Combo
      • _x000D_
      • Bezel Material Powder Coat Cast Aluminum
      • _x000D_
      • Brightness 8857 Lumens
      • _x000D_
      • Description Driving/Combo; Amber
      • _x000D_
      • Housing Color Black
      • _x000D_
      • Housing Material Powder Coat Cast Aluminum
      • _x000D_
      • Fits Universal; Some Adaptation May Be Required
      • _x000D_

      Description

      HIGH-PERFORMANCE OFF-ROAD LIGHTING. The Baja Designs LP4 Pro LED Auxiliary Light Pod with Amber Backlight and Driving/Combo Beam delivers intense forward and peripheral illumination designed for off-road and auxiliary lighting applications. Its combination of powerful output and innovative beam pattern enhances visibility, improving safety and performance during night driving or challenging conditions.

      _x000D__x000D_

      CONSTRUCTION AND APPEARANCE. This light pod features a durable powder-coated cast aluminum housing paired with a hardcoated polycarbonate lens that provides robust protection against impacts and environmental elements. The sleek black finish combined with the amber lens and backlight gives it a distinctive and functional appearance suitable for rugged use.

      _x000D__x000D_

      INSTALLATION. Installation of this LED light pod is straightforward with included stainless steel mounting hardware requiring no additional drilling. It is designed for easy mounting using the provided components and is compatible with a Deutsch connector terminal for secure wiring.

      _x000D__x000D_

      WARRANTY. This product includes a lifetime limited warranty to protect against defects in materials and workmanship.

      _x000D__x000D_

      APPLICATION. Fits universally with some adaptation; suitable for a wide range of vehicles and mounting locations, allowing flexible use for various lighting needs.

      Baja Designs 290013

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 1 Hour

      Difficulty Level:

      Light to Moderate mechanical skill required.

      Installation Guides

      What's in the Box

      • (1) Light and bracket
      • (1) 1/4”-20 hardware (two longer bolts, and remaining hardware for mounting)
      • (1) 3/8” hardware (center bolt)
      • (1) Washers
      • (1) O-ring
      • (6) Bolts for LP9 bezel
      • (4) Bolts for LP6 & LP4 bezel
      • (1) 4mm allen wrench (for lens swap)
      • (1) 64-0172 LP9 Pro Wire Harness (recommended)
      • (1) Relay PN: 4RD 933 332-18
