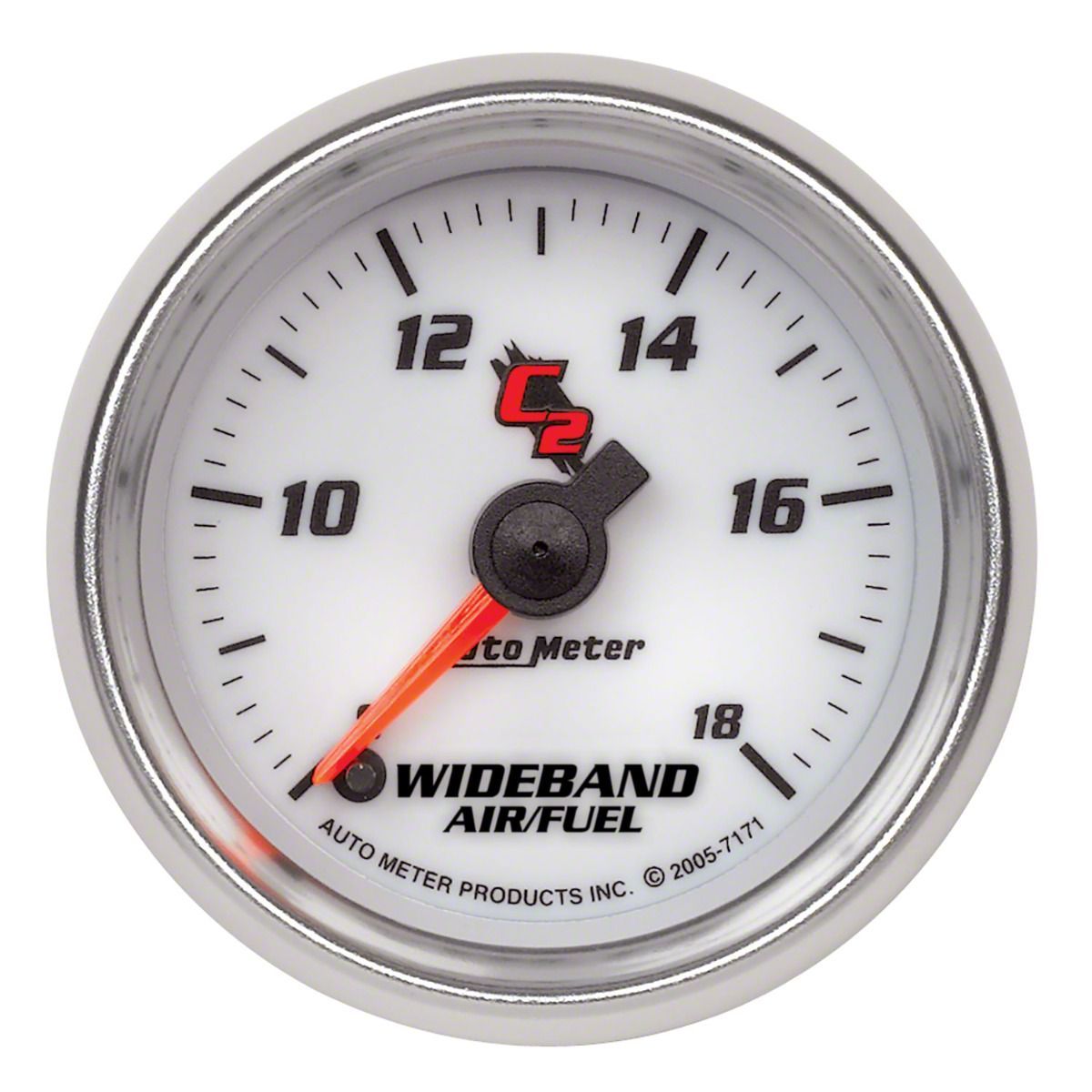

Auto Meter C2 Series 2-1/16-Inch Wideband Air/Fuel Ratio Gauge; 8:1-18:1 AFR (Universal; Some Adaptation May Be Required)
Item SHR50541
Product Information
Description, Q&A, Specs & Installation
Description
DESCRIPTION:
Mirroring the functions of AutoMeter’s Street Wideband, the Digital Stepper Motor Wideband provides the most important functions necessary to make sure you’re extracting the most power possible, safely. An analog needle display integrates seamlessly with other gauges and easily illustrates rate of change as well as the actual value. Our advanced auto calibration system automatically calibrates your gauge on every startup to assure you of the highest degree of accuracy over the entire lifespan of your sensor (no free air calibration is ever necessary). Designed for gasoline applications, this wideband gauge provides the same degree of accuracy and response as the Pro version, but at a reduced cost. Data logging output is included for one wire or two wire systems. Our specially designed O2 sensor and wiring harness are included for ease of installation.
Feature Points
Modern blue LED through-the-dial lighting provides clear visibility during nighttime use
Gauge kit includes custom tuned .1 AFR Resolution Bosch LSU4.2 Sensor, 8ft. wiring harness, 304 stainless steel weld-in bung, mounting hardware, and detailed instructions for installation
AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy which is further increased by utilizing a self calibration sequence during power up
Display range of 8:1 to 18:1
Suitable for use with gasoline powered engines
12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
Ships With
Includes Sending Unit: 2243
M18X1.5 Fitting and Plug
Wire Harness: 5298
2230
California Residents: Prop 65 WARNING
Mirroring the functions of AutoMeter’s Street Wideband, the Digital Stepper Motor Wideband provides the most important functions necessary to make sure you’re extracting the most power possible, safely. An analog needle display integrates seamlessly with other gauges and easily illustrates rate of change as well as the actual value. Our advanced auto calibration system automatically calibrates your gauge on every startup to assure you of the highest degree of accuracy over the entire lifespan of your sensor (no free air calibration is ever necessary). Designed for gasoline applications, this wideband gauge provides the same degree of accuracy and response as the Pro version, but at a reduced cost. Data logging output is included for one wire or two wire systems. Our specially designed O2 sensor and wiring harness are included for ease of installation.
Feature Points
Modern blue LED through-the-dial lighting provides clear visibility during nighttime use
Gauge kit includes custom tuned .1 AFR Resolution Bosch LSU4.2 Sensor, 8ft. wiring harness, 304 stainless steel weld-in bung, mounting hardware, and detailed instructions for installation
AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy which is further increased by utilizing a self calibration sequence during power up
Display range of 8:1 to 18:1
Suitable for use with gasoline powered engines
12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
Ships With
Includes Sending Unit: 2243
M18X1.5 Fitting and Plug
Wire Harness: 5298
2230
California Residents: Prop 65 WARNING
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Tech Specs
