Installation Time
(approx) 1 Hour
Difficulty Level:
Simple installation for anyone.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details
Find Storage & Consoles for your Ram 3500
ARB Outback Solutions Modular Roller Drawer; 53-Inch x 20-Inch x 5.50-Inch (Universal; Some Adaptation May Be Required)
Item SHR10773
Our Price
$969.00 each
Military, Medical & First Responders
$48.45 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Engineered for both on and off-road driving with anti-rattle design _x000D_
- Self-locking anti-roll back system locks into place at full extension, holding the drawer from rolling closed even on inclines _x000D_
- Modular units allow greater flexibility if needs change in the future _x000D_
- Class-leading deep drawers with internal heights up to 9.8 inches for greater packing potential _x000D_
- Key lockable, push-pull slam shut latches for ease of use and maximum security _x000D_
- Long-lasting, UV stable commercial carpet designed to complement modern vehicle interiors _x000D_
- Cross-folded floor ensures maximum support for items placed within each unit up to a maximum of 330 lbs per drawer, 600 lbs combined _x000D_
- Fully sealed, dust and water resistant bearings for superior longevity working in harsh environments _x000D_
- Integrated fridge slides on roller floor models provide a true flat mounting surface _x000D_
- Vehicle-specific side floor kit with easy latches completes installation and provides additional storage areas within the cabin or tray _x000D_
- Water resistant bonded marine plywood with steel reinforced guards for superior strength sourced from sustainable forests _x000D_
- Folded stainless steel bearing runners for ultra-smooth drawer and slide operation _x000D_
- Load rating 165 lb per drawer; roller floor 220 lb closed, 165 lb extended _x000D_
- Internal dimensions 50 in L x 16.5 in W x 9.8 in H _x000D_
- External dimensions 53.4 in L x 19.9 in W x 5.5 in H _x000D_
- Weight 72.8 lb _x000D_
- Material steel _x000D_
- Warranty 3 years _x000D_
- Fits universal; some adaptation may be required _x000D_
| Brand | ARB |
| Interior Storage Type | Roller Drawer |
Description

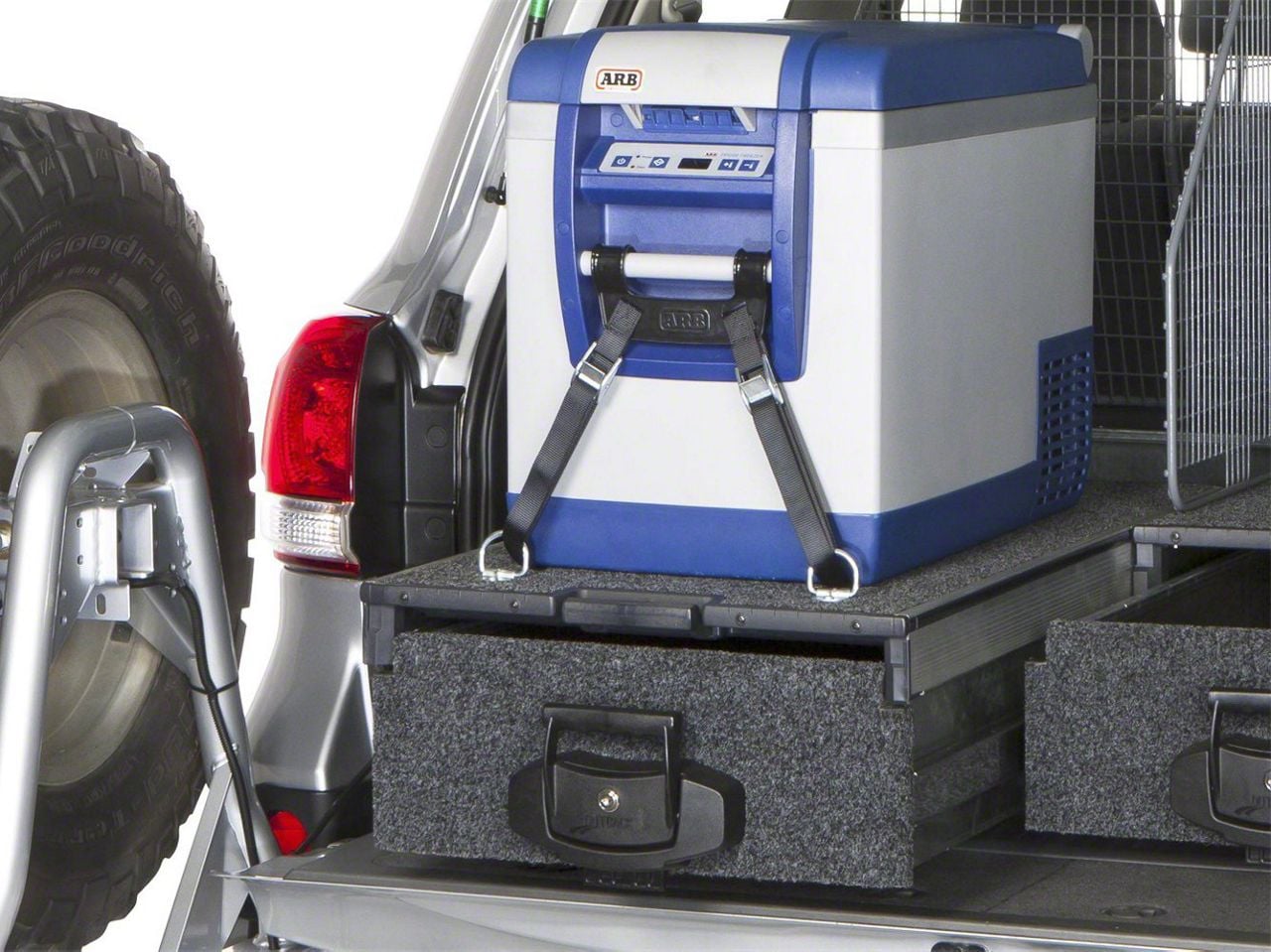

Modular Storage Solution. The ARB Outback Solutions Modular Roller Drawer, measuring 53 inches by 20 inches by 5.5 inches, offers versatile and secure storage designed for on- and off-road use. It features deep drawers with a slide-out tray for easy access, maximizing storage potential while maintaining convenience within vehicle cabins or trays.
_x000D__x000D_Construction and Appearance. Constructed from steel with bonded marine plywood and steel reinforced guards for added strength, the unit is equipped with folded stainless steel bearing runners for smooth drawer operation. The drawers are lined with UV stable commercial carpet that complements modern vehicle interiors, providing durability and a refined finish.
_x000D__x000D_Installation. Installation is straightforward with vehicle-specific side floor kits and easy latch mechanisms. Typically, no drilling is required, making setup efficient and user-friendly for most vehicles.
_x000D__x000D_Warranty. This product includes a 3-year warranty for peace of mind.
_x000D__x000D_Application. Designed to fit universally with some adaptation required to suit specific vehicle configurations.
ARB RF1355
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Modular Roller Drawer
- (1) Set of Brackets
- Installation Hardware
