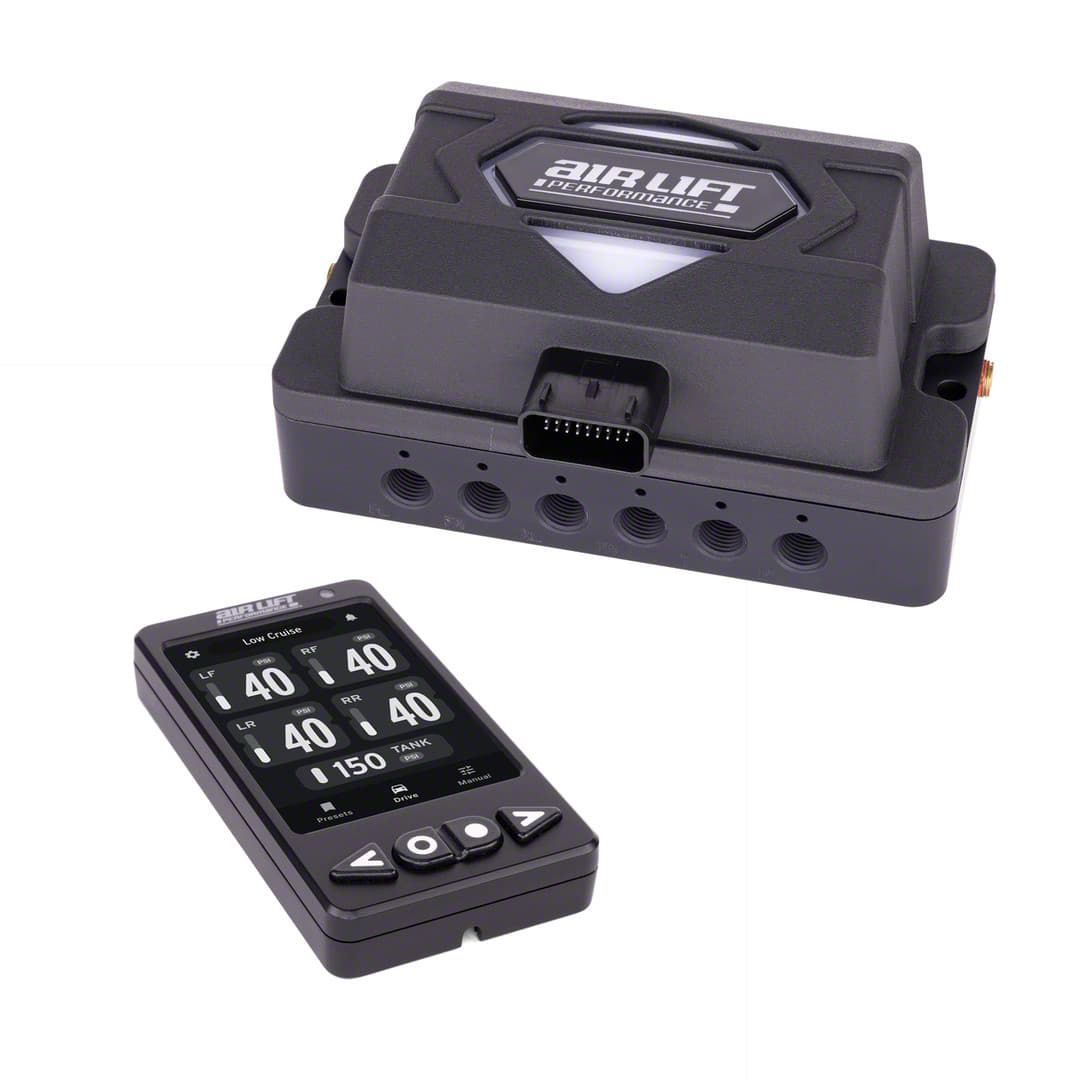

Air Lift Performance ALP4 Air Management System; 3/8-Inch (Universal; Some Adaptation May Be Required)

Item SHR60168
Product Image
Our Price

$1,916.99

Military, Medical & First Responders $95.85 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A

      Features

        _x000D_
      • Redefines air suspension control by combining cutting-edge hardware with smarter, seamless functionality
        • _x000D_
      • Compact all-in-one manifold houses ECU, solenoids, and pressure sensors for cleaner installs and fewer fail points
        • _x000D_
      • Crafted from anodized black billet aluminum for durability and a show-ready appearance
        • _x000D_
      • Full-color touchscreen controller with anodized aluminum frame and four tactile physical buttons
        • _x000D_
      • Mobile app integration allows use and fine-tuning from anywhere
        • _x000D_
      • Includes threaded port 1/4” FNPT manifold and full-color LCD controller
        • _x000D_
      • Includes main wiring harness, USB-A to USB-C cable, manifold mounting hardware, and electrical hardware
        • _x000D_
      • Includes six 1/4” MNPT x 3/8” PTC fittings and SMC water-trap with manual drain and mounting strap
        • _x000D_
      • Includes air line cutter and sixty feet of 3/8” DOT airline
        • _x000D_
      • Pressure-based air management system with built-in ECU solenoids and pressure sensors
        • _x000D_
      • Upgradeable to height-based air management system via height upgrade kit
        • _x000D_
      • Anodized black billet aluminum manifold block with LED-lit top cover and rotatable logo plate
        • _x000D_
      • Threaded 1/4” FNPT manifold ports compatible with included PTC fittings or any 1/4” male-threaded fittings
        • _x000D_
      • Five-inch full-color touchscreen controller with anodized aluminum case and auto-dimming ambient light sensor
        • _x000D_
      • Adjustable LED colors for manifold cover, controller backlight, and buttons
        • _x000D_
      • Plug-and-play harness needing only power, ground, and keyed ignition for easy installation
        • _x000D_
      • Free mobile app with improved connectivity and user-friendly interface for full system control
        • _x000D_
      • Built-in diagnostics with clear, easy-to-understand system messages
        • _x000D_
      • Compressor performance test and diagnostics to track compressor health
        • _x000D_
      • Adjustable pulse rate for fine-tuning system responsiveness
        • _x000D_
      • Valet mode with customizable lockout settings
        • _x000D_
      • Improved ride adjustment algorithms with learning and road filtering
        • _x000D_
      • Show mode allows full system use with vehicle off for one ignition cycle
        • _x000D_
      • Standby mode permits wireless connectivity with vehicle off, reducing power draw
        • _x000D_
      • Adjustable preset maintain sensitivity: high, medium, low
        • _x000D_
      • Slow lift/lower zone for smooth ground contact near minimum ride height
        • _x000D_
      • Seamless integration with available tank and compressor kits (tank and compressor not included)
        • _x000D_
      • Fits universal applications; some adaptation may be required
        • _x000D_

      Description

      Advanced Suspension Control. The Air Lift Performance ALP4 Air Management System; 3/8-Inch enables precise air suspension management by integrating the ECU, solenoids, and pressure sensors into one compact manifold. This system provides versatile control over air suspension settings, whether from the full-color touchscreen controller or via a mobile app, allowing enthusiasts to fine-tune ride height and performance easily.

      _x000D__x000D_

      Durability and Style. Constructed from anodized black billet aluminum, the manifold offers a sleek, robust finish designed for durability and aesthetic appeal. The controller features an anodized aluminum frame with a high-resolution color touchscreen and tactile buttons, ensuring both functionality and a premium look. LED lighting on both manifold and controller is fully adjustable to suit personal preferences.

      _x000D__x000D_

      Installation. The system is designed for straightforward installation with a plug-and-play wiring harness requiring only power, ground, and keyed ignition connections. The assembly is compatible as a drop-in upgrade for existing 3P/3H setups, promoting clean and efficient integration. No drilling is typically necessary.

      _x000D__x000D_

      Application. Fits universal applications with some adaptation required to accommodate specific vehicle configurations.

      Air Lift Performance 27485
