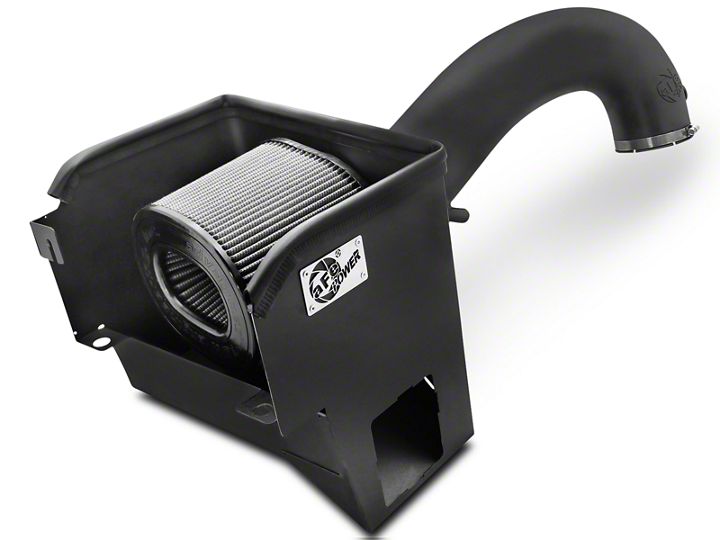

How to Install AFE Magnum FORCE Stage 2 Pro DRY S Cold Air Intake - Black on your Ram

• Please read the entire instruction manual before proceeding.
• Ensure all components listed are present.
• If you are missing any of the components, call customer support at 951-493-7100.
• Ensure you have all necessary tools before proceeding.
• Do not attempt to work on your vehicle when the engine is hot.
• Disconnect the negative battery terminal before proceeding.

Refer to Figure A for steps 1-3
Step 1: Disconnect temperature sensor harness 1 .
Step 2: Remove and save temperature sensor using a ¼ turn counter-clockwise twist. Do not damage.
Step 3: Loosen the inlet tube clamps and remove tube.

Refer to Figure B for steps 4-6
Step 4: Remove Engine cover.
Step 5: Remove vent tube from air box and engine vent 2 .
Step 6: Lift air box up and rotate towards the front for the scoop to clear the air condition lines 3 .

Refer to Figure C for steps 7-9
Step 7: Remove the oe air box scoop and transfer to the aFe filter housing 4 .
Step 8: Transfer 3 of the rubber mounting grommets as shown 5 .
Step 9: Add the supplied edge trim 6 and mount the filter adaptor 7 with the 5 screws provided.

Refer to Figure D for step 10
Step 10: Remove the 13mm head hex screw from the inner fender 8 .

Refer to Figure E for steps 11-12
Step 11: Lower the AFE filter housing into position with the scoop pointed downward and rotate to clear the air condition lines.
Step 12: Slip over the mounting pegs and reinstall the inner fender screw

Refer to Figure F for step 13
Step 13: Install the AFE filter and tighten 9 .

Refer to Figure G for step 14
Step 14: Install the provided sensor grommet into the AFE inlet tube and push in the sensor 10 .

Refer to Figure H for step 15
Step 15: Install the provided 5/8 x 2 1/4 hose 11 , 5/8 elbow, 12 and 5/8 x 23" hose 13 onto the engine vent fitting.

Refer to Figure I for steps 16-18
Step 16: Reinstall engine cover.
Step 17: Place hump coupler and (2) #064 clamps onto filter adaptor 14 .
Step 18: Place throttle body soft adaptor onto throttle body inlet 15 .

Refer to Figure J for steps 19-20
Step 19: Install intake tube with (1) #056 clamp at throttle body end and tighten all clamps.
Step 20: Connect vent hose by reaching under engine cover and pushing onto tube vent 16 .

Refer to Figure K for step 21
Step 21: Reconnect temperature sensor harness 17 .

Note: Retighten all connections after approximately 100-200 miles.
