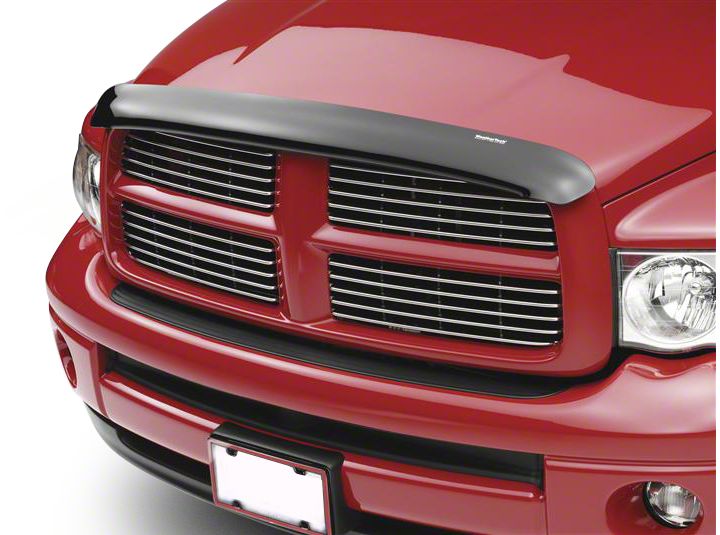

How to Install Weathertech Stone & Bug Deflector - Dark Smoke on your Dodge Ram

Tools Required
  • Car Wash Supplies
  • Clean Towel
  • Phillips screwdriver
American Muscle
Shop Parts in this Guide

Important Safety Information

• CAUTION - Before driving, ensure that the hood shield is properly secured to vehicle.
• Do not use automatic “brush-style” car washes.
• Do not use cleaning solvents of any kind.
• Periodically check all components for tightness.

Preparation Before Painting / Installation

• A trial fit is recommended to ensure proper positioning and fit.
• Check fit of parts before painting as we will not accept the return of modified or painted parts.
• Wash and dry your vehicle to remove any debris and/or dirt from the installation area.

Installation Steps

NOTE: Actual application may vary slightly from illustrations.

1. Locate (4) circular holes on the underside of the front grill. Remove any dust or debris,


2. Align the predrilled holes in the hoodshield with the holes in the underside of grill.


3. Using a phillips screwdriver, install the fastener


Fender Protector Installation

4. Clean the fender protector mounting location with an alcohol pad.


5. Expose 2” (5 cm) of tape liner from each end of the flanges on the fender protector.


6. Align fender protector with front edge of fender. With the fender protector in final position, remove the remainder of the tape liner by pulling on loose ends. Press firmly on flanges to ensure adhesion.


7. Apply bump on as indicated.


Care and Cleaning

Wash only with mild soap & dry with a clean cloth.
