Find LED Light Bars for your Sierra 3500

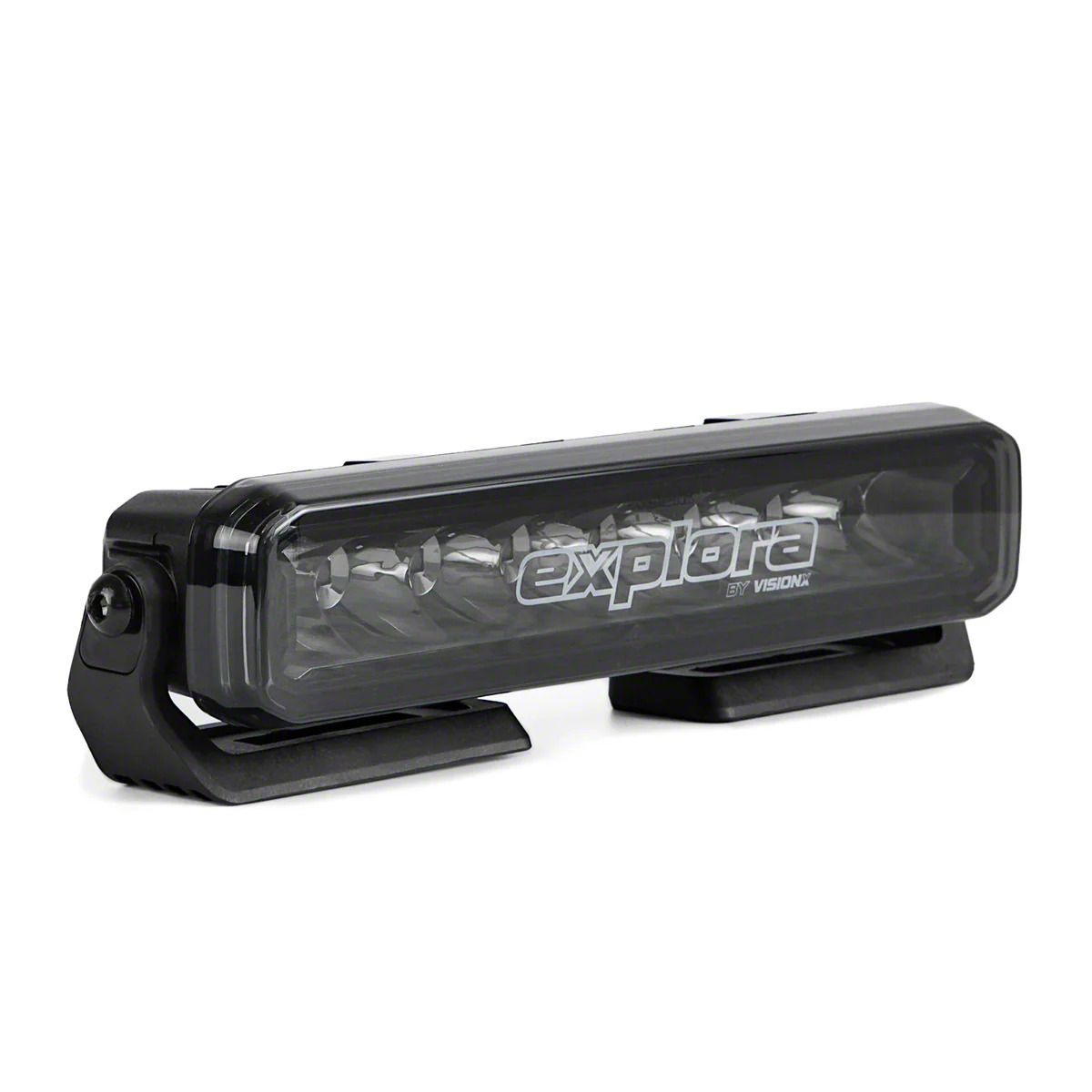

Vision X 10-Inch Explora Single Row LED Light Bar with Dual-Color DRL; Flood/Spot Combo Beam (Universal; Some Adaptation May Be Required)

Item SHG65367
Product Image
61 Reviews of Vision X
Our Price

$220.00

Military, Medical & First Responders $11.00 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features & Specs

        _x000D_
      • Explora Series Lights were purpose-built to deliver modern styling in a completely customizable platform, giving everyday drivers unprecedented versatility at an affordable price point.
        • _x000D_
      • Switchback dual-color DRLs, multi-color lens options, and multi-color trim rings provide unlimited customization guaranteed to match your build.
        • _x000D_
      • Add to that an impressive beam performance and internal relay system, and you can clearly see why Explora is a whole new breed.
        • _x000D_
      • Explora Series Light Bars are available in 10, 20, and 30-inch lengths in both single and double-row profiles.
        • _x000D_
      • All light bars feature a next-generation circuit design with a 2-position DRL that can be run in white, amber, or switch-back mode where the white DRL switches to amber and flashes in sync with your factory turn signal.
        • _x000D_
      • The advanced circuit design also utilizes an internal MOSFET eliminating the need for external relays, making wiring with or without plug-&-play wiring harnesses straightforward.
        • _x000D_
      • Interchange snap-on lens covers and silicone trim rings are available for all light sizes to enable more customization than ever before.
        • _x000D_
      • Lenses are available in yellow, clear, smoke, or black-out, and trim rings are available in red, orange, yellow, green, blue, and pink.
        • _x000D_
      • X-Drive LEDs produce 2,700 lumens with an ultra-reflective honeycomb-style optic backed by eight high-output LEDs to deliver a powerful driving beam.
        • _x000D_
      • Dual-color DRL features a unique two-edge DRL that can be switched between a crisp white output or amber to match your vehicle's OEM marker light.
        • _x000D_
      • Switch-back technology allows the amber DRL to take priority when both white and amber DRLs are powered and can flash in sync with turn signals.
        • _x000D_
      • Swappable lens system comes with a smoked lens by default that can be swapped to clear or selective yellow for dust protection.
        • _x000D_
      • Custom trim colors with colored rubber trim rings completely surround the outer portion of the lens.
        • _x000D_
      • Internal relay with modular switching eliminates the need for an external relay, and a modular wiring harness allows switching via a trigger wire or universal switch.
        • _x000D_
      • LEDs use CREE XTE (5W each) technology.
        • _x000D_
      • Power consumption is 40 watts with an amp draw of 3.33A.
        • _x000D_
      • Light bars output 2,700 raw lumens.
        • _x000D_
      • Beam distance is 932 feet (284 m).
        • _x000D_
      • Beam width is 112 feet (34 m).
        • _x000D_
      • Connector is 3-pin DT.
        • _x000D_
      • Color temperature is 6000K.
        • _x000D_
      • Operating voltage range from 9 to 32 VDC.
        • _x000D_
      • Pod size measures 10.53 inches round by 2.52 inches deep.
        • _x000D_
      • Pod weight is 1.2 pounds.
        • _x000D_
      • Ingress protection rating IP68 & 69K waterproof, submersible, and high-pressure spray resistant.
        • _x000D_
      • EMC certified to CISPR 25, CE, UKCA standards.
        • _x000D_
      • Limited lifetime warranty included.
        • _x000D_
      • Fits universal; some adaptation may be required.
        • _x000D_

      Description

      Performance Lighting. The Vision X 10-Inch Explora Single Row LED Light Bar with Dual-Color DRL; Flood/Spot Combo Beam is designed to provide versatile and customizable lighting options for a variety of automotive applications. This high-performance light bar enhances visibility with a powerful LED beam pattern, making it ideal for off-road driving, utility work, or styling upgrades where reliable illumination is crucial.

      _x000D__x000D_

      Construction and Appearance. Crafted from durable materials, the light bar features a robust housing with a swappable lens system and silicone trim rings for personalization. It includes a smoked lens by default, with options for clear or yellow lenses and multiple trim ring colors to match vehicle aesthetics. It is IP68 and IP69K rated for waterproofing, ensuring submersion capability and resistance to high-pressure sprays.

      _x000D__x000D_

      Installation. Installation is straightforward with included mounting hardware and a modular wiring harness that eliminates the need for external relays, simplifying the wiring process. Depending on the mounting surface and vehicle configuration, drilling may or may not be required.

      _x000D__x000D_

      Warranty. This product is backed by a limited lifetime warranty, providing long-term reliability assurance.

      _x000D__x000D_

      Application. Designed as a universal fit product, the Explora light bar can be adapted to a wide range of vehicles, though some modifications or vehicle-specific fit kits may be required to ensure proper installation.

      Vision X EX-LB8S
