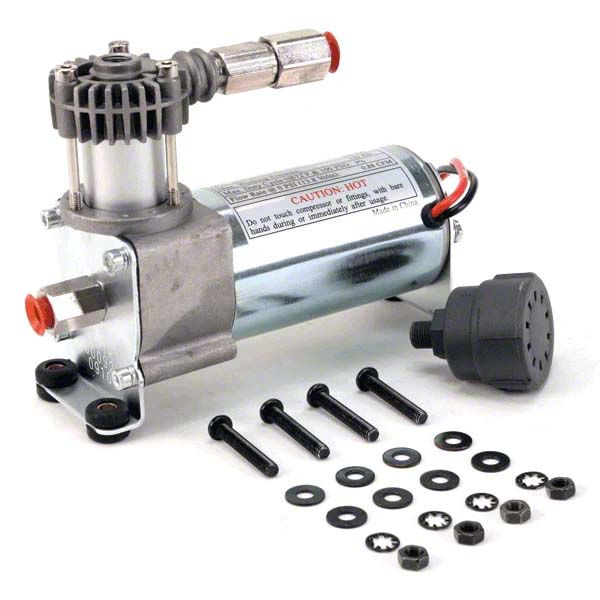

Viair 92C Air Compressor; 120 PSI / 1.03 CFM (Universal; Some Adaptation May Be Required)
Item SHG41575
Our Price
$115.95
Military, Medical & First Responders
$6.38 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- Light Duty Air Compressor Designed for Smaller Pneumatic Requirements _x000D_
- Ideal for Filling Tanks No Larger Than 1 Gallon _x000D_
- Removable Air Filter for Easy Maintenance _x000D_
- Equipped with Check Valve to Prevent Backflow _x000D_
- Includes Mounting Hardware for Secure Installation _x000D_
- Meets ISO 9001 Quality Standard _x000D_
- 12V & 24V Oil-less Permanent Magnetic Direct-Drive Motor _x000D_
- Duty Cycle of 9% at 100 PSI for Efficient Operation _x000D_
- Maximum Working Pressure of 120 PSI _x000D_
- Maximum Amp Draw of 10 Amps _x000D_
- Ingress Protection Rating of IP54 for Dust and Water Resistance _x000D_
- Operates Within Ambient Temperature Range from -40°F to 158°F _x000D_
- Compact Dimensions: 7.6" Length x 2.0" Width x 4.6" Height _x000D_
- Lightweight at 2.45 Pounds _x000D_
- Inrush Current of 27.6 Amps at 0 PSI _x000D_
- Sound Level of 62.1 Decibels at 0 PSI for Quiet Operation _x000D_
- Vibration Isolators to Reduce Noise and Improve Stability _x000D_
- Direct Mount Air Filter Assembly Included _x000D_
- Installation Instructions Included for Easy Setup _x000D_
- Use Thread Sealant for Proper Installation; Thread Tape is Not Recommended _x000D_
- Recommended Torque: 10-11 ft-lbs for 1/8 Inch Threads _x000D_
- Recommended Torque: 16-18 ft-lbs for 1/4 and 3/8 Inch Threads _x000D_
- Universal Fit; Some Adaptation May Be Required _x000D_
Description
Performance Air Compressor. The Viair 92C Air Compressor, rated at 120 PSI / 1.03 CFM, is engineered to deliver lightweight and efficient air compression for smaller pneumatic systems, ideally suited for filling tanks up to one gallon. Its compact design and quiet operation make it suitable for applications where space and noise are important considerations. This compressor ensures precise air delivery to effectively meet light-duty pneumatic requirements.
_x000D__x000D_Construction and Appearance. Featuring a durable permanent magnetic motor with an oil-less direct-drive design, this compressor enhances reliability and minimizes maintenance needs. It is equipped with vibration isolators and a direct mount air filter assembly to maintain clean airflow and prolong operational life. The unit’s compact dimensions of 7.6 inches by 2.0 inches by 4.6 inches and a lightweight of 2.45 pounds, combined with an IP54 ingress protection rating, provide resistance against dust and water intrusion.
_x000D__x000D_Installation. Installation is simple and user-friendly, requiring no specialized technical skills. The supplied mounting hardware facilitates secure attachment, and the included instructions guide you through a straightforward setup without the need for drilling in most cases.
_x000D__x000D_Warranty. This product includes standard warranty coverage; please contact the supplier for detailed terms. Application. Designed for universal fit; some adaptation may be necessary.
Viair 00092
