Timbren Rear Axle SES Suspension Enhancement System (09-18 RAM 1500 Crew Cab, Quad Cab w/o Air Ride)

Item R100924
Call a Ram Enthusiast at 1-888-706-1096
M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Market Price $220.99 You Save 12% ($25.80)
Our Price

$195.19 (kit)

FREE Shipping

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
In Stock

Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

      Review & Installation Video

      Hey, guys. Adam here with americantrucks.com. Today, we're taking a closer look at and installing the Timbren Rear Axle SES Suspension Enhancement System available for the '09 to '18 Ram 1500. If you find yourself using your Ram to its fullest potential, towing a very heavy trailer, or just carrying around an extremely heavy cargo bed with a ton of cargo in it, this is the product for you.You know what I'm talking about if this is you. If you use your Ram 1500 for all of those uses, you know that it can sag a whole bunch which ultimately affects your ride comfort, your steering control, obviously, your trailer handling, your load optimization, all of that can be thrown out of whack when there's such a heavy load at the rear end. Using the Timbren System here will absolutely make your life a lot easier when you're towing and hauling such a heavy load or carrying a heavy trailer at the rear end. Basically, what these do, these just replace your factory jounce stops, otherwise known as bump stops, above your rear axle. Now, those factory stops are just probably about half the size of these and their job is to make sure that it maintains stability with a heavy load by cushioning that response on top of the rear axle. This Timbren SES Suspension Enhancement System replaces those jounce stops, gives you a larger bump stop with AEON heavy rubber spring. These are hollow springs that are meant to carry that heavy load, to support your suspension, maintain stability, optimize your load handling, reduce all that trailer sway, and reduce your body roll and body sway when carrying such a heavy load at that rear.These bolt right up into that factory location, that factory jounce stop pocket and they'll rest up against the top of your rear axle when the heavy load puts that pressure on it. When you're not towing anything, they absolutely have no impact on your ride quality. They won't do anything. It's not something you have to worry about taking off. It will sit just above your rear axle with a solid gap and then once that load comes in contact with it, it'll lower down and prevent that sag by supporting that weight. They'll keep that truck leveled and one of the smaller things that you might not realize is a problem, is with that sag, your headlights aren't even pointed in the right direction. It's gonna pull your truck down so you're pointing upward a little bit which can compromise your safety on the road. Overall, these have a ton of pros and in my opinion, absolutely no cons. There's no reason you shouldn't pick this up if you're using your truck for those uses. Using it to its full functionality, these will get your money's worth no problem. This stuff comes in right around 215 bucks for both replacements for those factory jounce stops. Those rubber hollow springs here, super durable. As you can see, an inch maybe even a little more thick. So, they're a lot more durable than the factory jounce stops which can wear out over time. They also come with these spacers on the top, steel spacers on the inside with a bolt, as well as the nub on the inside. So, all the hardware needed for the kit is included and there's no cutting, no drilling, none of that nonsense. It bolts right up to that factory spot. I wanna show you guys how that gets installed which, by the way, is going to get two out of three wrenches on our difficulty meter. The only thing you have to worry about is getting your rear end up enough to let the rear axle sag. You need to let that rear axle sag and have it up in the air enough to get a ratchet and a socket or an impact gun in to unbolt your factory jounce stops. That's the only thing you really need to worry about. As you can see, we've got our Ram set up on the left behind me. We're gonna put it up in the air and unbolt those factory ones. Overall, it'll take about two hours from start to finish and maybe even a little bit less if you're quick to get it up in the air. Simple hand tools will get the job done. So, let's get to it. Step number one is to get your factory jounce stops out of the way. Now, these yellow things here are your factory ones, right above the plate on the axle. This is exactly where it's going to be, but we gotta get these out of the way. But they're not exactly bolted in. They're just kind of wedged into this pocket here, so you're gonna need to pop these out. It's really simple. These little indents sit on those indents and they hold it into place. So, you just pop these out and we'll be ready to install our Timbren. Now, just repeat on the other side. So, we got our factory jounce stop out of our 2014 Ram 1500. As you can see, it's pretty significantly different than our Timbren Suspension System. It's almost double the size of the factory one, and the quality is something you can just clearly see the difference in. If you look at the straight bottom, there is a complete difference between the way this looks and the thickness of this rubber spring and the Timbren System. You can just see how much more of this can handle as far as load capacity.This one wouldn't even come in contact with the spring under certain loads. If you have a super heavy load that you're towing or if you're putting in your truck bed, this will definitely come in contact with the axle before this one ever would, which means you get more support with less load than this would require. So, you can see that just by looking at it without even testing it. So, that is something I would like to point out here. This one, you can almost compress by hand and squeeze. This one, not even a chance. There's no way you're moving this thing by hand so you can really feel the quality. That's how much I wanted to show you guys between the two. Number one the size and number two the material. So, those AEON rubber springs from the Timbren System, a lot different than the factory option and it's just quality you can feel. Now, I'm excited to get this installed and show you guys where it sits and how much the size difference can look once it's on the truck. The big thing here is it just pops in by hand. Timbren recommends using soapy water to kind of lubricate the top end to get it the stick into the factory jounce stop cup holder, that's exactly where it's going to go.There's no bolting necessary. It's already pre-assembled out of the box. If you get yours and for whatever reason, you disassemble it, you'll just be able to pop the spacer up on the top using the metal spacers in between, the steel spacers and the bolts go right through. It just bolts right up to itself and then this pops into the cup. We're gonna use a little bit of lubricant to get this installed. Soapy water is what they recommend, we have, you know, PB B'laster, other things like that. The only thing about using PB B'laster is it doesn't dry up like soap and water would, so it can stay lubricated for a longer amount of time. Whatever you're using to get this to pop up, you don't want to stay in there. You want it to dry up so that it just sticks into place. So, I wanna show you guys how this gets done. Let's get to it. Now, the trick to getting this installed, we're starting on our driver side is to twist and push upward at the same time. Got it a little bit wet. Soap and water is doing the trick. You'll feel it kind of click into the seat. PB B'laster definitely helped here. Don't use too, too much if that's the route you're gonna go. Just lubricate it enough to pop into place. As you can see, it's totally secure. What you'll notice is there's about a four to five-inch gap between the bottom of the Timbren System and the top of the axle. Now, keep in mind, there is no load on our rear axle right now. We're fully drooped. Once this is on the ground, this will close to about two to three inches, which is exactly what you want. Repeat for the other side. Now you're good to go. Well, guys, that's gonna wrap up my review and install of the Timbren Rear Axle SES Suspension Enhancement System available for the '09 to '18 Ram 1500. You can get this kit right here at americantrucks.com.

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features

      • Suspension Enhancement System
      • Prevents Rear End from Squatting & Sagging
      • Effectively Decreases Road Shocks
      • Improves Handling
      • Comes with Lifetime Warranty
      • Fits Dodge RAM 1500 2009-2018 Crew Cab and Quad Cab without Air Ride Models

      Description

      Engineered for Heavy Loads. Every Dodge Ram 1500 Crew Cab has been engineered and built for extreme toughness. And it’s made even tougher with equipment like the Timbren SES Suspension Enhancement System.

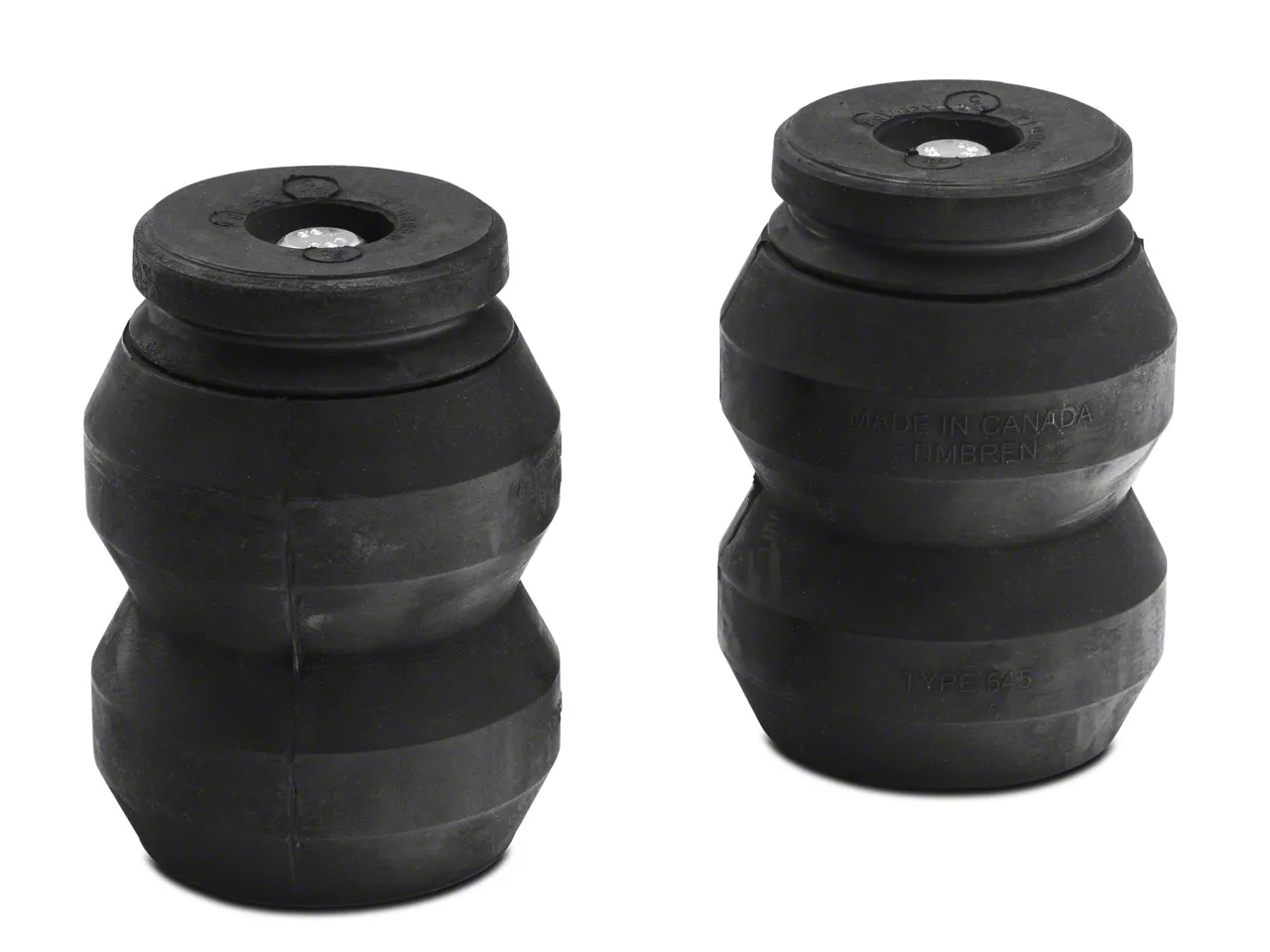

      Rubber Springs. This suspension system comes with hollow rubber springs that have been designed with a progressive spring rate. This means that the heavier the load your truck carries or pulls, the harder the springs work to keep the rear end of the truck from squatting. The hollow rubber springs adjust automatically to maintain the truck’s level and stability when carrying heavy loads in its bed or when pulling a heavy trailer.

      Built for Comfort. Timbren SES Suspensions are engineered to make your RAM 1500 truck ride more comfortably and handle better even in extreme road conditions. Whether you’re driving in the city or on the trail, this suspension upgrade delivers superior quality ride, even when the truck isn’t carrying or pulling heavy loads.

      Application. This Timbren SES Suspension Enhancement System fits all Dodge RAM 1500 2009-2018 Crew Cab and Quad Cab without Air Ride models. It’s not compatible with models equipped with factory air ride suspensions.

      Fitment: 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 Details

      MPN# DR1500DQ

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      4.8

      Customer Reviews (4)

      Write a Review

      Ratings Summary

      4.8 out of 5 overall rating from 4 customers

      Installation Time: Less than 1 Hour





      • June 21, 2019

        Review shared from Timbren Rear Axle SES Suspension Enhancement System (09-18 RAM 1500 Crew Cab, Quad Cab w/o Air Ride)

        5 2016 Big Horn - DustinK Installation Time: Less than 1 Hour

        Recomended

        Good quality product. I suggest using break cleaner as lubricant went right on easy about 1 min install time. And I did not have to jack my truck up to let axle suspend.. very good product

        Helpful (0)
      • May 26, 2019

        Review shared from Timbren Rear Axle SES Suspension Enhancement System (09-18 RAM 1500 Crew Cab, Quad Cab w/o Air Ride)

        4 2011 Sport - Nj Installation Time: Less than 1 Hour

        No squat

        Product installed very easily once you get enough lube on them. Installed in minutes. Virtually eliminated rear end sag while towing. Only complaint is that when you hit a large bump when empty it can jar you pretty good. But overall very satisfied.

        Helpful (0)
      • March 11, 2019

        Review shared from Timbren Rear Axle SES Suspension Enhancement System (09-18 RAM 1500 Crew Cab, Quad Cab w/o Air Ride)

        5 2015 Lone Star - TimV Installation Time: Less than 1 Hour

        Easy install

        Once I got the right amount of lube and followed directions it was an easy install

        Helpful (0)
      • December 24, 2018

        Review shared from Timbren Rear Axle SES Suspension Enhancement System (09-18 RAM 1500 Crew Cab, Quad Cab w/o Air Ride)

        5 2014 Big Horn - SK Installation Time: Less than 1 Hour

        Good upgrade for towing

        Greatly increased load stability and beefed up the rear end to support a full bed load and heavy trailer. The install takes less than 5 minutes and reduced all rear end sag and cornering sway.

        Helpful (8)

      Questions & Answers (1 answers)

      1 Top Rated Question

      Does this system replace the existing rear springs or is it installed in addition to the existing rear springs?

      • These are hallow rubber springs and will replace your existing setup.

      Helpful (0)
      Post Your Question

      Installation & What's in the Box

      Installation Info

      What's in the Box

      • (2) Nyloc Locknut M10 x 1.5 GR 8.0 Z
      • (2) HCS M10 x 50 x 1.5 F/T GR 8.8 Z
      • (2) Hollow Rubber Spring
      • (2) AEON LOCATER 3.15 OD X 1" THK
      • (1) Small Rear Box - 9.5 x 7 x 5.5
      • (1) 8" x 12" Bubble for Kits
      • (1) Barcode Label for Kit

      Will It Fit My Ram 1500

      • 3.0L V6 EcoDiesel - 14, 15, 16, 17, 18
      • 3.6L V6 - 13, 14, 15, 16, 17, 18
      • 3.7L V6 - 09, 10, 12
      • 4.7L V8 - 09, 10, 11, 12, 13
      • 5.7L V8 - 09, 10, 11, 12, 13, 14, 15, 16, 17, 18

      Not compatible on vehicles equipped with factory air ride suspension.
