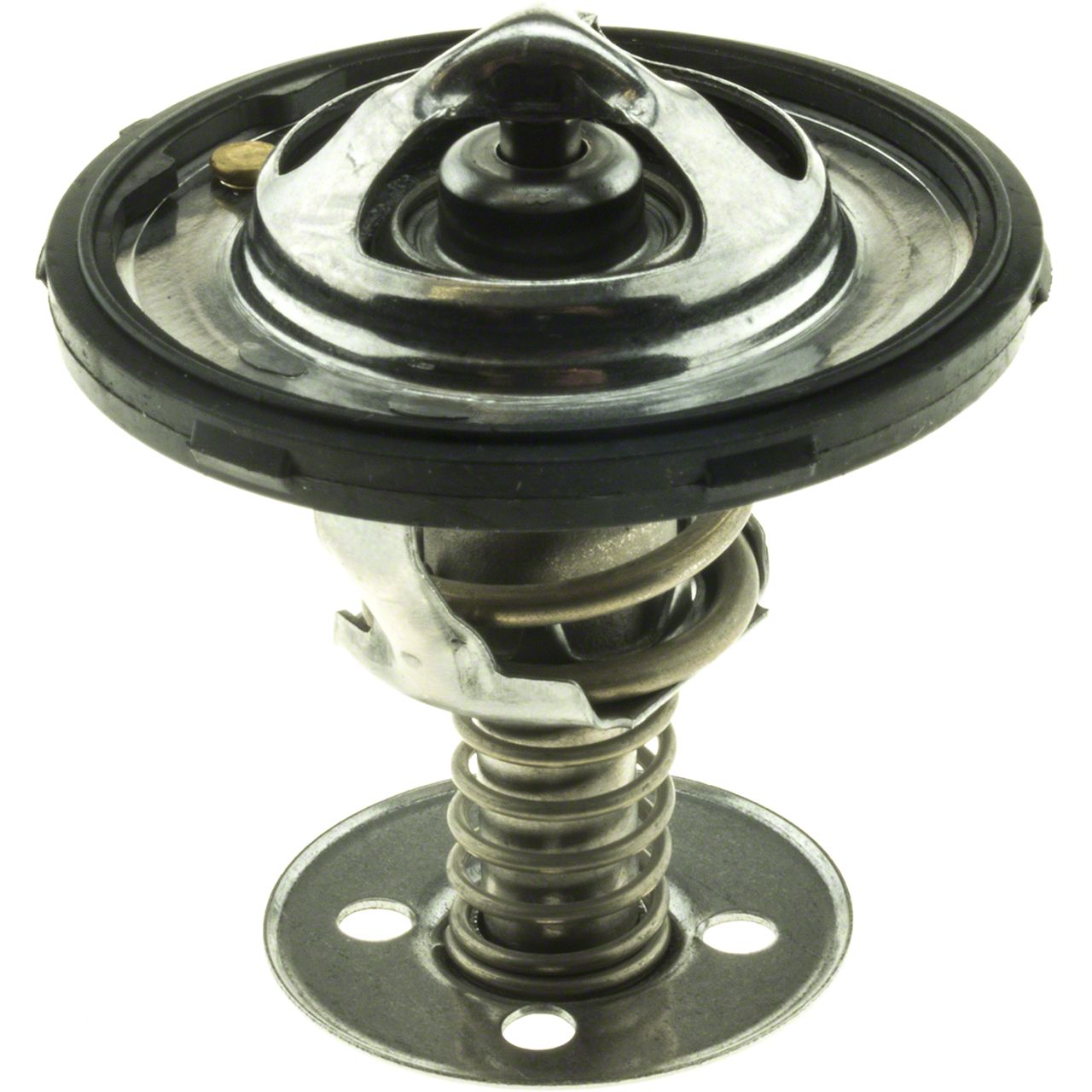

UltraStat Thermostat with Seal; 187-Degree (01-03 6.0L Sierra 3500 HD)Find parts that fit my vehicle

Item SHG53208
1 Reviews
Our Price

$18.99

Military, Medical & First Responders $0.95 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Reviews, Q&A

      Features

        _x000D_
      • Components of high-grade stainless steel offer enhanced reliability and long-lasting durability
        • _x000D_
      • Exclusive BLVT™ valve technology minimizes thermal shock to cooling system components
        • _x000D_
      • Stainless steel thermal element provides unrivaled corrosion resistance with revolutionary REAX™ wax blend for faster reaction time
        • _x000D_
      • AccuSpring™ design ensures stable temperature control and improved cabin comfort
        • _x000D_
      • Internal outlet diameter measures 30.73 mm
        • _x000D_
      • External outlet diameter measures 36.32 mm
        • _x000D_
      • Valve external diameter is 34.29 mm
        • _x000D_
      • No screw holes present
        • _x000D_
      • Bypass flange diameter is 1.46 inches
        • _x000D_
      • Bypass flange length is 1.84 inches
        • _x000D_
      • Depth measures 1.73 inches
        • _x000D_
      • OEM design specifications
        • _x000D_
      • Not electrically operated
        • _x000D_
      • Quantity of engine coolant thermostats is 1
        • _x000D_
      • Flange height is 0.24 inches
        • _x000D_
      • Flange thickness is 0.05 inches
        • _x000D_
      • Seal or gasket included
        • _x000D_
      • Seal or gasket material is rubber
        • _x000D_
      • Seal or gasket pre-installed
        • _x000D_
      • Seal or gasket required
        • _x000D_
      • Seal quantity is 1
        • _x000D_
      • Seal type is O-ring
        • _x000D_
      • Seal flange outer diameter is 2.13 inches
        • _x000D_
      • Opening temperature begins at 187.0 degrees Fahrenheit
        • _x000D_
      • Includes one jiggle pin check valve
        • _x000D_
      • Oscillating pin check valve quantity is 1
        • _x000D_
      • Jiggle pin drain hole present
        • _x000D_
      • Not MAP controlled
        • _x000D_
      • Material is stainless steel
        • _x000D_
      • Fits 01-03 6.0L Sierra 3500 HD
        • _x000D_

      Description

      Durable Cooling Solution. The UltraStat Thermostat with Seal; 187-Degree precisely regulates engine temperature for optimal performance and efficiency. This thermostat opens at 187°F to ensure your engine reaches and maintains ideal operating temperature, preventing overheating or underheating. It is essential for maintaining proper coolant flow and protecting engine components from thermal stress.

      _x000D__x000D_

      Construction and Appearance. Crafted entirely from high-quality stainless steel, this thermostat offers superior corrosion resistance and long-lasting durability. It features a thermal element utilizing a unique REAX™ wax compound for fast response times. The product has a silver finish and comes pre-installed with a rubber O-ring seal to ensure a tight, leak-proof fit.

      _x000D__x000D_

      Installation. Installation is straightforward and requires no drilling or special modifications. It is designed to match OEM specifications, allowing for a direct replacement in compatible vehicles.

      _x000D__x000D_

      Application. Specifically made to fit 01-03 6.0L Sierra 3500 HD models without exceptions noted.
