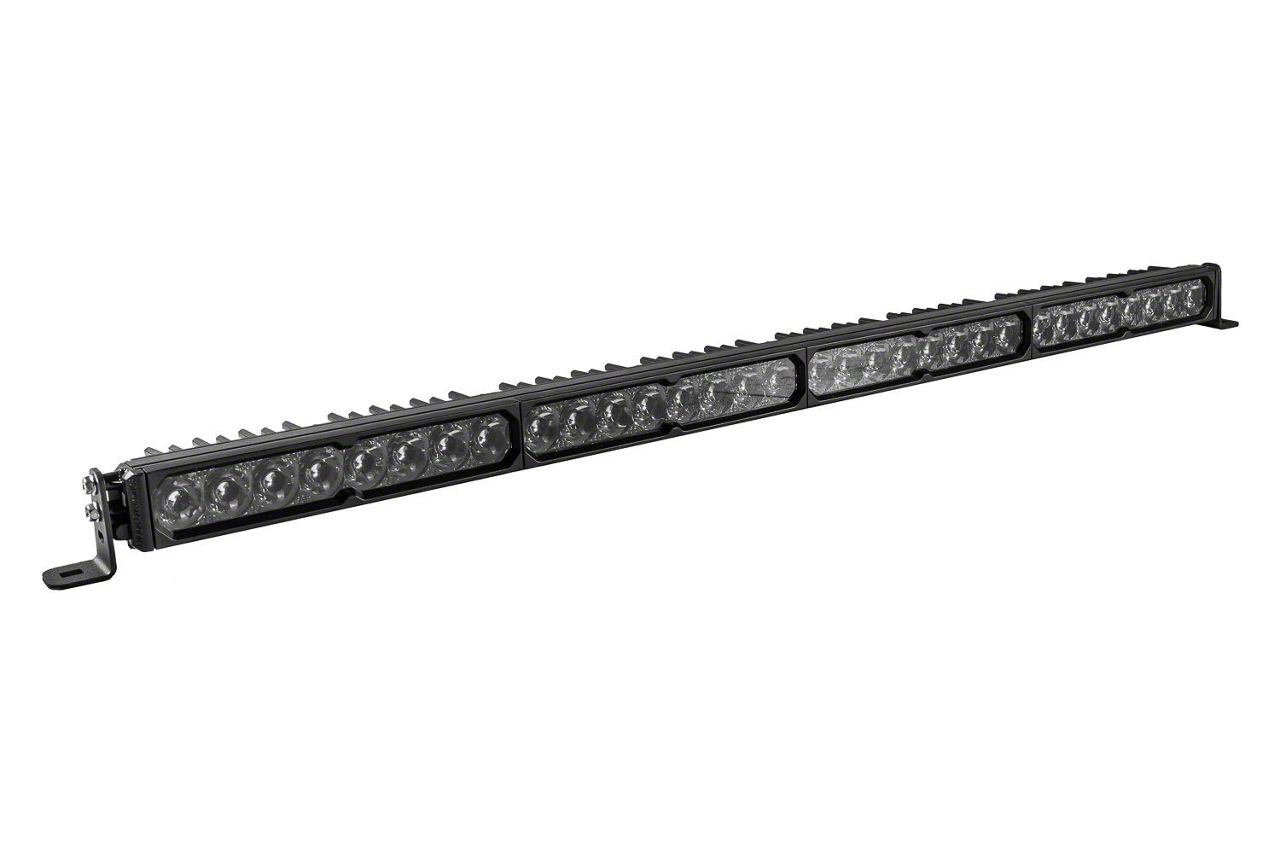

Diode Dynamics SS40 Pro Single Row LED Light Bar with SmartSelect Backlight; White Spot (Universal; Some Adaptation May Be Required)

Item SHG68564
Product Image
Our Price

$1,124.95

Military, Medical & First Responders $56.25 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features & Specs

        _x000D_
      • Patented TIR Optics For Maximum Efficiency And Output.
        • _x000D_
      • Upgraded Beam Patterns Engineered For Real-World Performance.
        • _x000D_
      • Modern Welcome Sequence And Selectable Backlight Color With SmartSelect Technology.
        • _x000D_
      • Available In Sport And Pro Power Levels.
        • _x000D_
      • Durable Aluminum Housing With ASTM-Standard Powdercoat Finish.
        • _x000D_
      • Built For Extreme Conditions With IP69K Waterproof Rating.
        • _x000D_
      • Limited Lifetime Warranty Included.
        • _x000D_
      • Made In USA Using Globally Sourced Materials.
        • _x000D_
      • Multiple Beam Patterns Available: Combo/Driving, SAE Driving, Flood, Spot.
        • _x000D_
      • SmartSelect Technology Provides Dual-Function Main Beam And Multicolor Backlight.
        • _x000D_
      • Internal Copper Circuit Boards And Heatsink Optimize Thermal Management.
        • _x000D_
      • LED Emitters Include Osram Ostar Projection Compact And Lumileds Automotive Grade LED.
        • _x000D_
      • Operating Voltage Range: 9-30V, Current At 12.8V: Sport 12.90A, Pro 17.58A.
        • _x000D_
      • Connectors Use Deutsch DT-P Input.
        • _x000D_
      • Product Dimensions: 2.01 X 41.63 X 2.46 Inches.
        • _x000D_
      • Passive Cooling Via Aluminum Heatsink.
        • _x000D_
      • Includes One LED Light Bar, One Wire Pigtail, Universal Bracket Set.
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required.
        • _x000D_

      Description

      HIGH-PERFORMANCE LED LIGHT BAR. The Diode Dynamics SS40 Pro Single Row LED Light Bar with SmartSelect Backlight; White Spot is engineered to deliver exceptional light output and precise beam control for off-road and automotive applications. Utilizing patented TIR optics and advanced thermal management, it provides intense, focused illumination to enhance visibility in diverse terrain and weather conditions. Integrated SmartSelect technology enables easy customization of beam patterns and accent lighting without additional wiring.

      _x000D__x000D_

      CONSTRUCTION AND APPEARANCE. This light bar features a rugged aluminum housing finished with a durable ASTM-standard powdercoat to resist corrosion and wear. It incorporates polycarbonate lenses, copper internal circuit boards, and an aluminum heatsink to maximize thermal efficiency and extend product longevity. Stainless steel mounting brackets ensure secure installation, and the unit is rated IP69K for waterproofing to withstand harsh environmental conditions.

      _x000D__x000D_

      INSTALLATION. Installation of the SS40 Pro light bar generally takes 30 to 60 minutes using basic hand tools. The included universal bracket set facilitates mounting with no need for additional drilling in most cases, allowing for a straightforward and secure fit.

      _x000D__x000D_

      WARRANTY. This product comes with a limited lifetime warranty, providing confidence in its durability and manufacturer support for any defects.

      _x000D__x000D_

      APPLICATION. Fits universal applications; some adaptation may be required.

      Diode Dynamics DD8404
