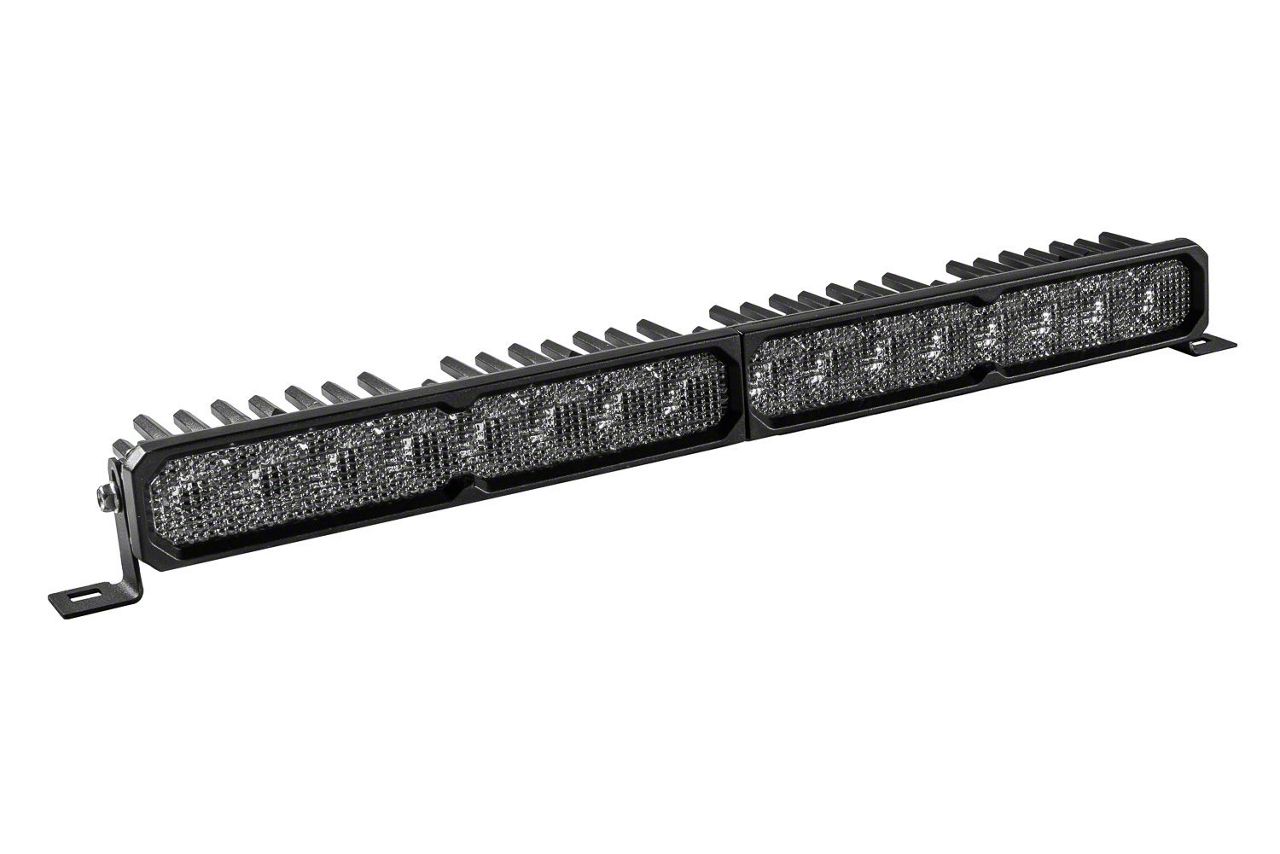

Diode Dynamics SS20 Sport Single Row LED Light Bar with Amber Backlight; White Flood (Universal; Some Adaptation May Be Required)

Item SHG68496
Our Price

$399.95

Military, Medical & First Responders $20.00 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Q&A

      Features & Specs

        _x000D_
      • Patented TIR Optics For Maximum Efficiency And Output
      • _x000D_
      • Upgraded Beam Patterns Engineered For Real-World Performance
      • _x000D_
      • Modern Welcome Sequence And Selectable Backlight With SmartSelect Technology
      • _x000D_
      • Available In Sport, Pro, And Max Power Levels
      • _x000D_
      • Durable Aluminum Housing With ASTM-Standard Powdercoat Finish
      • _x000D_
      • Built For Extreme Environments With IP69K Waterproof Rating
      • _x000D_
      • Limited Lifetime Warranty Included
      • _x000D_
      • Made In USA With Globally Sourced Materials
      • _x000D_
      • Multiple Optic Choices Including Combo/Driving, SAE Driving, Flood, And Spot
      • _x000D_
      • Backlight Fully Illuminates TIR Optic For Unique Accent Lighting
      • _x000D_
      • SmartSelect Models Feature Eight Backlight Colors And Dynamic Startup Sequence
      • _x000D_
      • Swappable Optics And Colors With Toggle Switch For Lens Color Configuration
      • _x000D_
      • Snap-On Lens Covers Available For Further Customization
      • _x000D_
      • Compatible With CrossLink Mounting Solutions For Custom Configurations
      • _x000D_
      • Operating Voltage From 9 To 30V With Polarity Specific Connector
      • _x000D_
      • Passive Cooling With Optimized Heatsinks For Thermal Management
      • _x000D_
      • Connector Type Deutsch DT Input
      • _x000D_
      • Operating Temperature Range From -40°C To 85°C (-40°F To 185°F)
      • _x000D_
      • LED Emitters Are Osram Ostar Projection Compact And Lumileds Automotive Grade
      • _x000D_
      • Dimensions Are Approximately 2.01x20.24x2.37 Inches
      • _x000D_
      • Beam Angles Vary By Optic: Combo 60°x30°, SAE Driving 20°x12°, Flood 100°x80°, Spot 8°x8°
      • _x000D_
      • Power Levels: Sport 76.5 Watts, Pro 105 Watts
      • _x000D_
      • Current Draw (Amps At 12.8V): Sport 5.98, Pro 8.20
      • _x000D_
      • Includes One LED Light Bar, Wire Pigtail, And Universal Bracket Set
      • _x000D_
      • Fits Universal; Some Adaptation May Be Required
      • _x000D_

      Description

      Advanced Lighting Solution. The Diode Dynamics SS20 Sport Single Row LED Light Bar with Amber Backlight and White Flood is a high-performance automotive lighting accessory designed to provide intense, focused illumination for off-road and auxiliary driving applications. It enhances visibility and safety by utilizing patented TIR optics for precise light dispersion, making it a vital upgrade for enthusiasts who demand superior lighting in real-world conditions.

      _x000D__x000D_

      Construction and Appearance. Constructed with a durable aluminum housing finished with an ASTM-standard powdercoat, this light bar features a polycarbonate lens and stainless steel brackets. The design incorporates passive cooling via optimized heatsinks and high-quality Osram and Lumileds LED emitters, ensuring longevity and reliability. The powdercoat finish provides a rugged texture and resistance against harsh elements.

      _x000D__x000D_

      Installation. Installation is straightforward and typically requires only basic hand tools, with no drilling necessary. The unit comes with universal mounting brackets and a wire pigtail, allowing for easy integration with existing vehicle wiring systems.

      _x000D__x000D_

      Warranty. This product includes a limited lifetime warranty, protecting against defects and ensuring long-term performance.

      _x000D__x000D_

      Application. Fits universal; some adaptation may be required.

      Diode Dynamics DD8222
