Find Air, Oil, & Fuel Filters for your Sierra 3500

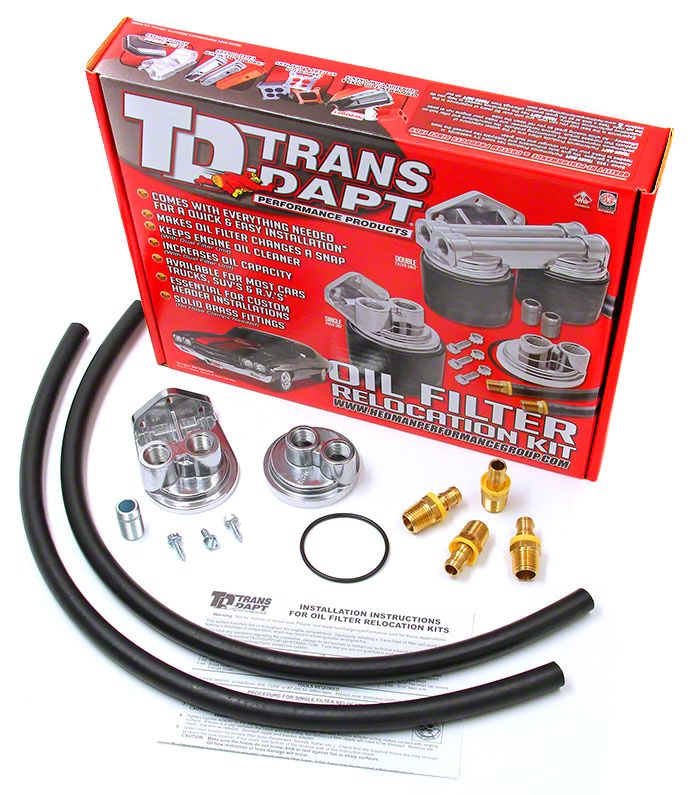

Single Oil Filter Relocation Kit; 13/16-Inch x -16 Threads (01-19 6.6L Duramax Sierra 3500 HD)Find parts that fit my vehicle

Item SHG52829
Our Price

$174.99

Military, Medical & First Responders $8.75 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

        _x000D_
      • Single Oil Filter Relocation System
        • _x000D_
      • 3-3/16 In. I.D. And 3-7/16 In. O.D. Bypass Flange
        • _x000D_
      • 13/16 In.-16 Threads
        • _x000D_
      • Oil Filter Bypass Adapter
        • _x000D_
      • Remote Single Oil Filter Base
        • _x000D_
      • Two 30 In. Pre-Assembled Hoses With Fittings
        • _x000D_
      • Mounting Hardware And Instructions Included
        • _x000D_
      • Filter Bypass Style Standard Port Filter Bypass
        • _x000D_
      • Filter Nipple Thread Size 13/16 In.-16
        • _x000D_
      • Filter Compatibility Fram PH8A Or Equivalent
        • _x000D_
      • Port Size 1/2 In. NPT
        • _x000D_
      • Cast Aluminum Materials
        • _x000D_
      • Vertical Port Style
        • _x000D_
      • Hose Length 30 In. With 3/4 In. OD
        • _x000D_
      • Hose Material Flame Resistant Nitrile/Rubber
        • _x000D_
      • Hose Temperature Range -40 F To +212 F
        • _x000D_
      • Hose Type Reinforced One Fiber Band
        • _x000D_
      • Hose Connection Type Push Lock
        • _x000D_
      • Fitting Material Brass
        • _x000D_
      • Fitting Type Hose Barb
        • _x000D_
      • Four Fittings Included
        • _x000D_
      • Hose Bust Pressure 1200 Psi
        • _x000D_
      • Mount Material Cast Aluminum
        • _x000D_
      • Bolt Hole Quantity Three
        • _x000D_
      • Performance Yes
        • _x000D_
      • Race Only No
        • _x000D_
      • Single Filter Kit Type
        • _x000D_
      • O. E. Replacement No
        • _x000D_
      • Fits 01-19 6.6L Duramax Sierra 3500 HD
        • _x000D_

      Description

      Premium Oil Filtration. The Single Oil Filter Relocation Kit with 13/16-Inch x 16 Threads relocates the oil filter to a more accessible location, facilitating easier oil changes and maintenance while helping to keep the engine bay cleaner and cooler. Designed for engines that accept a 13/16 in.-16 thread oil filter, this kit efficiently redirects oil flow with durability and reliability, making it an essential addition for improved serviceability, especially in tight engine compartments.

      _x000D__x000D_

      Construction and Appearance. Crafted from cast aluminum for strength and corrosion resistance, the relocation system features a polished finish that combines functionality with durability. It includes flame-resistant nitrile/rubber hoses reinforced with a fiber band for enhanced strength and longevity under high pressure and temperature conditions. Brass hose barb fittings provide secure, leak-proof connections to optimize oil flow.

      _x000D__x000D_

      Installation. Installation is straightforward and requires only basic mechanical skills. The kit mounts using existing bolt holes without the need for drilling, allowing a hassle-free upgrade to your vehicle’s oil filtration system.

      _x000D__x000D_

      Application. Designed to fit 2001-2019 6.6L Duramax Sierra 3500 HD models, ensuring perfect compatibility and performance without modification.

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Sierra 3500

      • 6.6L V8 Duramax - 01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19
