Find Towing & Hitches for your Sierra 3500

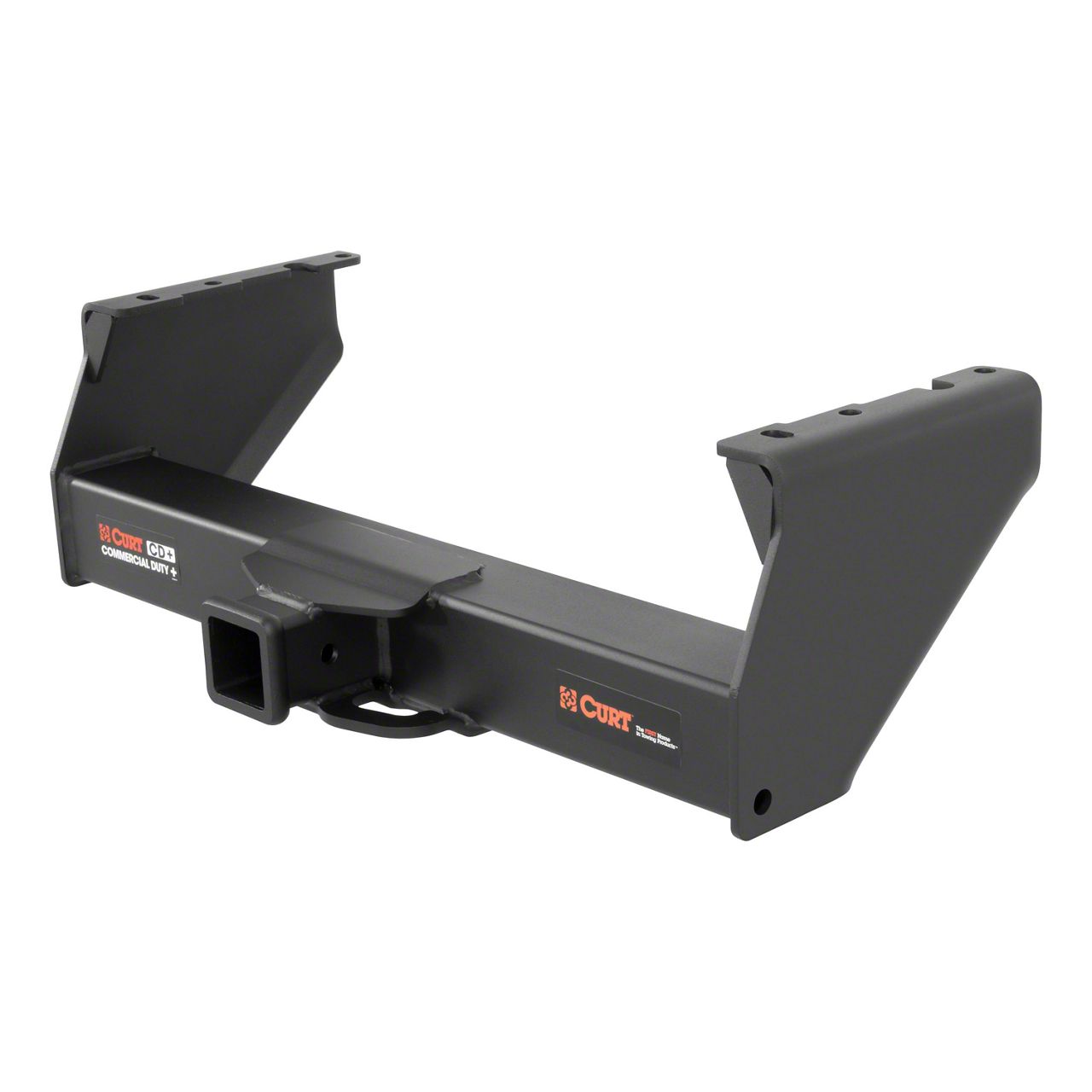

Commercial Duty Class V Trailer Hitch (01-26 Sierra 3500 HD Cab & Chassis)Find parts that fit my vehicle

Item SHG52832
115 Reviews of similar
Our Price

$446.95

Military, Medical & First Responders $22.35 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

        _x000D_
      • Rated To 20,000 Lbs. Gross Trailer Weight And 2,700 Lbs. Tongue Weight
        • _x000D_
      • Compatible With Weight Distribution Hitch (20,000 Lbs. WD / 2,700 Lbs. WDTW)
        • _x000D_
      • Engineered With A Vehicle-Specific Design For A Custom Fit
        • _x000D_
      • Tested For Safety In Accordance With SAE J684
        • _x000D_
      • Precisely Welded For Superior Strength And Fit
        • _x000D_
      • Constructed With A Large, Powerful Main Body
        • _x000D_
      • Protected By A Highly Durable Carbide Powder Coat Finish
        • _x000D_
      • Co-Cured In A Rust-Resistant Liquid A-Coat, Inside And Out
        • _x000D_
      • Features Wide Safety Chain Openings For Heavy-Duty Hooks
        • _x000D_
      • Equipped With An Open-Back Receiver For Easy Cleaning
        • _x000D_
      • Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
        • _x000D_
      • Made In USA (May Include Imported Hardware)
        • _x000D_
      • Drilling Required
        • _x000D_
      • Installation Difficulty Novice
        • _x000D_
      • Main Body Shape Square
        • _x000D_
      • Material Carbon Steel
        • _x000D_
      • Product Weight 66.4 Lbs.
        • _x000D_
      • Receiver Tube Size 2-1/2 Inches
        • _x000D_
      • Tongue Weight 2,700 Lbs.
        • _x000D_
      • Weight Carrying Capacity 20,000 Lbs.
        • _x000D_
      • Weight Distribution 20,000 Lbs.
        • _x000D_
      • Weight Distribution Tongue Weight 2,700 Lbs.
        • _x000D_
      • Includes Strong Grade-8 Installation Hardware
        • _x000D_
      • Fits 01-26 Sierra 3500 HD Cab & Chassis
        • _x000D_

      Description

      In the world of commercial towing, more is expected. A job cannot be completed if the equipment cannot handle the workload. That is why CURT developed the Commercial Duty class 5 trailer hitch. Constructed from steel and engineered for power, these class 5 hitches are designed to complement the towing power of full-size, commercial pickup trucks, including diesels and chassis cabs. They can easily handle a variety of oversize trailers, including toy and car haulers, livestock trailers, dumper trailers, large flatbed trailers, large boat trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component). This particular class 5 hitch features a gross trailer weight capacity of 20,000 lbs. and a tongue weight capacity of 2,700 lbs. It is designed to be a custom trailer hitch for certain years of the Chevy Silverado 3500, 3500 HD or 3500 Classic, Dodge Ram 3500, 4500 or 5500, GMC Sierra 3500, 3500 HD or 3500 Classic and Ram 3500, 4500 or 5500 (to verify your vehicle compatibility, see application info). All CURT Commercial Duty class 5 hitches feature a 2-1/2 in. x 2-1/2 in. receiver tube opening to accept the strongest of ball mounts and towing accessories. They are perfect for mounting standard ball mounts, pintle mounts, tow hooks and weight distribution hitches as well as winch mounts and cargo carriers. CURT class 5 tow hitches are protected by a co-curing of liquid A-coat and carbide black powder coat finish. They also mount with grade-8 hardware, included with each hitch.

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Tech Specs

      4.8

      Reviews of similar Exterior Products (115)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Sierra 3500

      • 6.0L V8 - 01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19
      • 6.6L V8 - 20, 21, 22, 23, 24, 25, 26
      • 6.6L V8 Duramax - 01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26
      • 8.1L V8 - 01, 02, 03, 04, 05, 06
