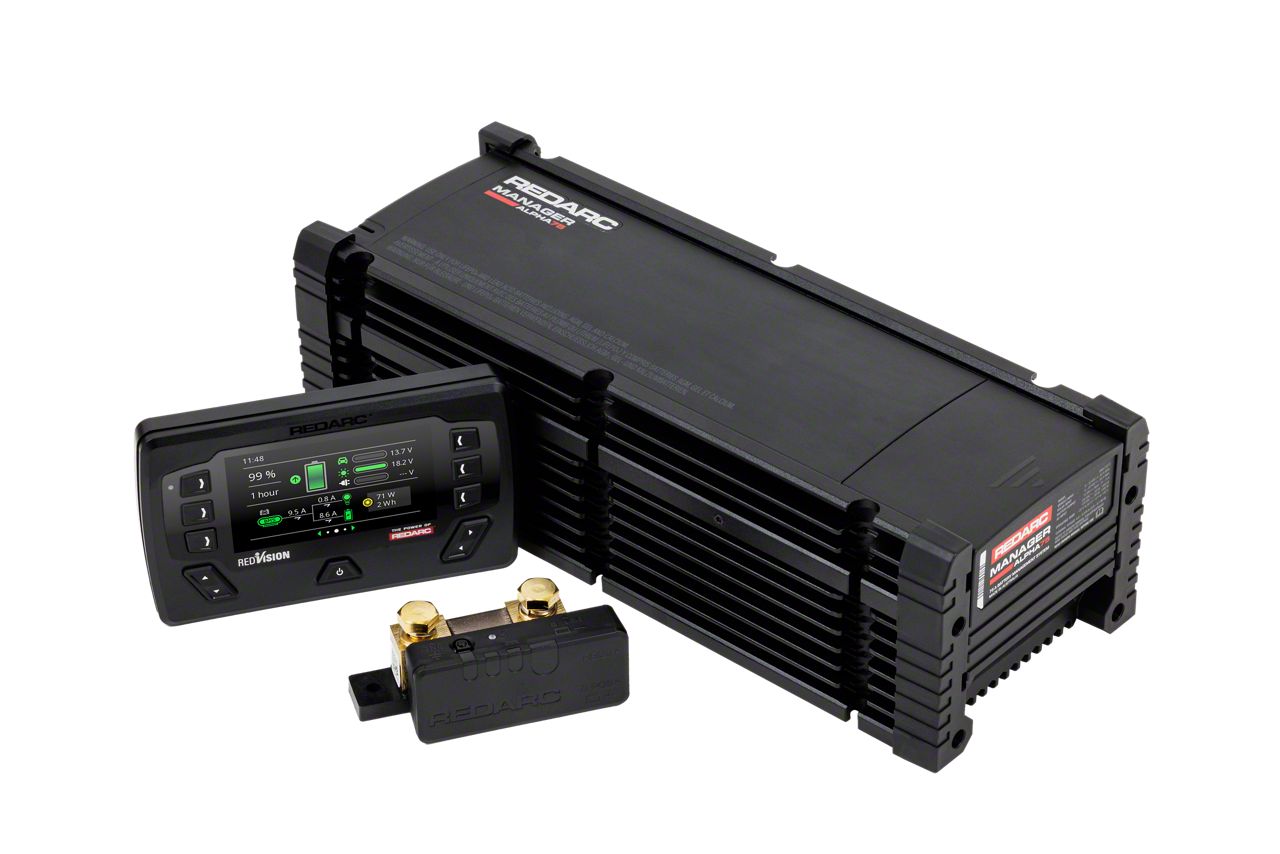

Redarc Manager Alpha75 Battery Management System with RedVision; 75A (Universal; Some Adaptation May Be Required)

Item R197618
Product Image
2 Reviews of Redarc
Our Price

$3,899.00

Military, Medical & First Responders $194.95 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

        _x000D_
      • Perfect For Charging Auxiliary Batteries Used In Trucks, Recreational Vehicles, Camper Trailers
        • _x000D_
      • Complete Battery Management System
        • _x000D_
      • Combination Of DC, AC And Solar Charging
        • _x000D_
      • 75A Charging From Vehicle (DC), Shore (AC) And Solar
        • _x000D_
      • Green Power Priorityâ„¢ To Minimise Alternator Load And Save Fuel
        • _x000D_
      • Power High Demand Appliances Including Induction Cooktops, Fridges, Air Conditioners
        • _x000D_
      • Up To 55% Smaller And 28% Lighter Than Competing Systems
        • _x000D_
      • Start Battery Charge And Recovery Modes
        • _x000D_
      • RedVision Technology And Bluetooth Compatibility For Real-Time Monitoring
        • _x000D_
      • RedVision Display Shows State Of Charge, Remaining Charge, Current Flow
        • _x000D_
      • Bluetooth 5.1 Technology With Up To 42m Range
        • _x000D_
      • Tested To Toughest Vibration Standards
        • _x000D_
      • Operates In Temperatures From –4°F To 140°F
        • _x000D_
      • Compatible With Gel, AGM, Calcium, Standard Lead Acid, Lithium Batteries
        • _x000D_
      • Nominal Voltage 12V
        • _x000D_
      • Current Measurement Range ± 500A
        • _x000D_
      • Start Battery Input Voltage Range 9-32VDC
        • _x000D_
      • Solar Input Voltage Range 9-32VDC
        • _x000D_
      • Nominal Output Voltage 12V
        • _x000D_
      • AC Input Voltage Range 95 – 264 VAC rms / 45 – 65 Hz
        • _x000D_
      • Weight 13.25lbs (6.0kg)
        • _x000D_
      • Dimensions Height 4.72” (120mm), Width 6.06” (154mm), Length 15.75” (400mm)
        • _x000D_
      • Warranty 2 Years
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      Advanced Battery Management. The Redarc Manager Alpha75 Battery Management System with RedVision; 75A is an all-in-one solution designed to efficiently charge auxiliary batteries in trucks, recreational vehicles, and camper trailers. It combines DC, AC, and solar charging sources to deliver up to 75 amps of charging power, ensuring your secondary battery is always optimally charged no matter your power source. This system is essential for powering high-demand appliances reliably on the road or off-grid.

      _x000D__x000D_

      Construction and Appearance. Constructed with high-quality materials built to withstand extreme vibrations and harsh environmental conditions, this unit is designed and manufactured in Australia. The compact device is finished with a durable, smooth textured casing optimized for heat dissipation and long-term durability in both hot and cold environments.

      _x000D__x000D_

      Installation. Installation is straightforward but may require professional assistance depending on the existing electrical system. No major drilling is typically necessary, making it suitable for a variety of vehicle setups.

      _x000D__x000D_

      Warranty. This product includes a 2-year warranty, ensuring reliable support and quality assurance.

      _x000D__x000D_

      Application. Fits universal applications where some adaptation may be required to suit specific vehicle configurations or battery setups.

      Redarc BMS12075-NA
