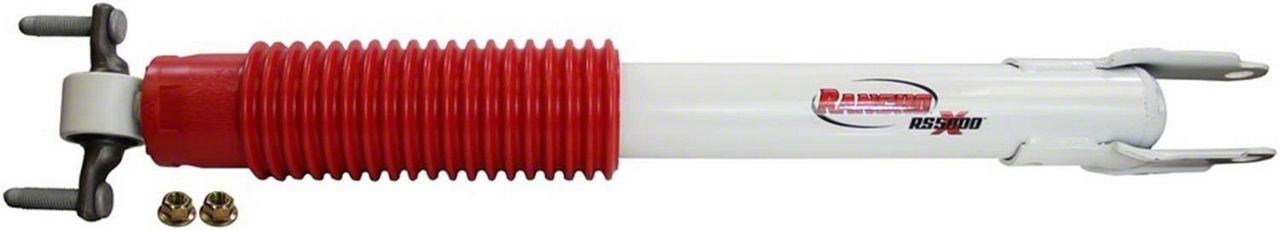

Rancho RS5000X Front Shock for 5 to 6-Inch Lift (11-26 Sierra 3500 HD)Find parts that fit my vehicle

Item SHG22947
Product Image
281 Reviews
Our Price

$70.30

Military, Medical & First Responders $3.52 Available in AT Cash Rewards.
Confirm Eligibility

Save with Open Box

From $42.18

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Featuring a Unique, Exclusive Valving System And Advanced Compression Functionality
        • _x000D_
      • Improved Overall On- And Off-Road Handling And Performance
        • _x000D_
      • Cross Tuned Technology With Exclusive Rebound Valving System
        • _x000D_
      • Progressive Engagement Valving Custom-Tuned For Each Vehicle
        • _x000D_
      • Minimizes Initial Impacts At Low Speeds To Reduce Rough Ride
        • _x000D_
      • 16mm Nitro-Carburized Piston Rod To Resist Scuffs And Corrosion
        • _x000D_
      • Double-Welded Loops At Stress Areas For Durability
        • _x000D_
      • 35mm Sintered Iron Piston For Enhanced Structural Integrity
        • _x000D_
      • Polyvinyl Protective Boot Included
        • _x000D_
      • Large Twin-Tube Body Filled With All-Weather Fluid
        • _x000D_
      • Operates Smoothly In Temperatures From -40° To 248°F
        • _x000D_
      • Polyurethane Rebound Bumper And Rubber Bushings Absorb Ride Harshness
        • _x000D_
      • Fluon-Banded Piston Enhances Responsiveness To Road Conditions
        • _x000D_
      • Nitrogen Gas Pressurized To 150 PSI To Reduce Damping Fade And Foaming
        • _x000D_
      • Compression Control Valve Custom-Tuned To Regulate Fluid Transfer
        • _x000D_
      • Low-Friction, Self-Lubricating Seal For Quicker Rebound And Smooth Compression
        • _x000D_
      • Painted Finish
        • _x000D_
      • Steel Body Material With Nitrocarburized Shaft
        • _x000D_
      • Gas Charged
        • _x000D_
      • Twin Tube Internal Construction
        • _x000D_
      • Performance Grade Type
        • _x000D_
      • Boot Included
        • _x000D_
      • Telescopic Type Shock Absorber
        • _x000D_
      • Mounting Hardware Included
        • _x000D_
      • Extended Length Of 24.58 Inches
        • _x000D_
      • Shock Stroke Of 6.28 Inches
        • _x000D_
      • Lower Mount Clevis Bracket Mount
        • _x000D_
      • Upper Mount Cross Pin Mount With Closed Ended 1/2 Inch Hole ID Both Ends
        • _x000D_
      • Shock Absorber Rod Diameter 0.622 Inches
        • _x000D_
      • Shock Absorber Bore Size 1.37795 Inches (35mm)
        • _x000D_
      • Includes Bump Stop
        • _x000D_
      • Progressive Valving Type
        • _x000D_
      • Passive Suspension
        • _x000D_
      • No Adjustable Damping
        • _x000D_
      • Body Diameter 2.019 Inches
        • _x000D_
      • Shock Absorber Rod End Measuring Point Center Of Mounting Hole
        • _x000D_
      • Shock Absorber Body End Measuring Point Center Of Cross Pin
        • _x000D_
      • Shaft Material Nitrocarburized
        • _x000D_
      • Body Color White
        • _x000D_

      Description

      Exceptional Handling Performance. The Rancho RS5000X Front Shock for 5 to 6-Inch Lift is designed to enhance vehicle handling and performance both on and off the road. It incorporates advanced valving systems that improve responsiveness and minimize rough ride impacts at low speeds, delivering a smooth driving experience.

      _x000D__x000D_

      Construction and Appearance. Built for durability, this shock absorber features a 16mm nitro-carburized piston rod to resist corrosion and scuffs, and a 35mm sintered iron piston to maintain structural integrity. Its white painted steel body is finished with a polyvinyl protective boot to guard against environmental damage. The twin-tube design filled with all-weather fluid supports optimal operation across extreme temperature ranges from -40°F to 248°F.

      _x000D__x000D_

      Installation. Installation is straightforward without requiring drilling, designed to fit direct bolt-on applications for lifted vehicles. The included mounting hardware ensures proper fitment and secure installation.

      _x000D__x000D_

      Warranty. This shock absorber comes with a limited lifetime warranty, providing long-term reliability and customer confidence.

      Rancho RS55382
