Find Shocks & Struts for your Ram 1500

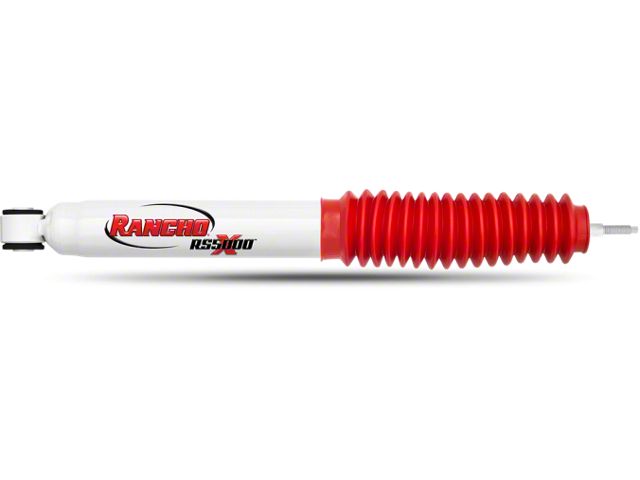

Rancho RS5000X Front Shock for 1-Inch Lift (03-05 4WD RAM 1500)Find parts that fit my vehicle

Item R148358
Product Image
280 Reviews
Our Price

$70.30

Military, Medical & First Responders $3.52 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Featuring a unique, exclusive valving system and advanced compression functionality, delivering improved overall on- and off-road handling and performance
        • _x000D_
      • Cross-Tuned technology featuring exclusive rebound valving system and advanced compression phase improves overall handling and performance on and off road
        • _x000D_
      • Exclusive progressive engagement valving custom-tuned for each vehicle to help reduce initial impacts at low speeds and minimize a rough ride
        • _x000D_
      • Features a 16mm nitro-carburized piston rod to resist scuffs and corrosion, double-welded loops at stress areas, 35mm sintered iron piston for enhanced structural integrity, and polyvinyl protective boot
        • _x000D_
      • Large twin-tube body filled with all-weather fluid allows for cooler operation, increased vehicle control, and ability to withstand internal temperatures from -40 to 248°F
        • _x000D_
      • Polyurethane rebound bumper and rubber bushings help absorb ride harshness while the fluoron-banded piston enhances responsiveness to changing road conditions for an overall smoother ride
        • _x000D_
      • Nitrogen gas pressurized to 150 PSI to minimize air-to-oil mixture to reduce damping performance fade and foaming
        • _x000D_
      • Compression control valve custom-tuned for each vehicle to regulate fluid transfer, absorb impacts without disc flutter, and help maintain shock motion control
        • _x000D_
      • Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the application-specific piston delivers heightened control of shock motion due to the expanded piston area
        • _x000D_
      • Comes with limited lifetime warranty
        • _x000D_
      • Mounting hardware included
        • _x000D_
      • Extended length 17.42 inches
        • _x000D_
      • Shock stroke 6.07 inches
        • _x000D_
      • Loop bushing and sleeve mount - 14mm sleeve ID x 1.11/16 inch sleeve OAL
        • _x000D_
      • Stem mount - 2.5/8 inch stem length x 1/2-inch-13 thread pitch
        • _x000D_
      • Boot included
        • _x000D_
      • Gas charged
        • _x000D_
      • Body diameter 2.25 inches
        • _x000D_
      • Compressed length 11.35 inches
        • _x000D_
      • Painted finish
        • _x000D_
      • Nitrocarburized shaft material
        • _x000D_
      • Steel body material
        • _x000D_
      • Rod diameter 0.622 inch
        • _x000D_
      • Steel cylinder material
        • _x000D_
      • Twin tube internal construction type
        • _x000D_
      • Performance grade type
        • _x000D_
      • Progressive valving type
        • _x000D_
      • Passive suspension
        • _x000D_
      • Dust shield included
        • _x000D_
      • Upper mount code S5
        • _x000D_
      • Lower mount code LS92
        • _x000D_
      • Shock absorber bore size 1.37795 inch
        • _x000D_
      • Includes bump stop
        • _x000D_
      • Rubber dust shield material
        • _x000D_
      • Dust shield diameter 2.99 inches
        • _x000D_
      • Fits 03-05 4WD RAM 1500; not for use with aftermarket shock spacers or relocation brackets
        • _x000D_

      Description

      Enhanced Suspension Performance. The Rancho RS5000X Front Shock for 1-Inch Lift provides superior on-road and off-road handling through its exclusive valving system and advanced compression control. It’s engineered to improve vehicle control by minimizing rough ride impacts and delivering smoother shock response across diverse driving conditions.

      _x000D__x000D_

      Construction and Appearance. Built with a 16mm nitro-carburized piston rod and a robust 35mm sintered iron piston, this shock absorber is designed for strength and durability. It features a painted white finish and incorporates a twin-tube body filled with all-weather fluid for reliable operation in extreme temperatures from -40 to 248°F.

      _x000D__x000D_

      Installation. Installation is straightforward and typically requires no drilling, using included mounting hardware compatible with front suspension setups. It is designed for easy replacement to accommodate vehicle lifts between 1 and 2 inches, ensuring perfect fitment.

      _x000D__x000D_

      Warranty. This product is backed by a limited lifetime warranty, assuring durability and workmanship quality.

      _x000D__x000D_

      Application. Designed specifically to fit the 2003 to 2005 4WD Dodge Ram 1500 front suspension with a 1 to 2-inch lift. This shock absorber is not compatible with aftermarket shock spacers or relocation brackets.

      Rancho RS55373

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      4.7

      Customer Reviews (280)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Ram 1500

      • 3.7L V6 - 03, 04, 05
      • 4.7L V8 - 03, 04, 05
      • 5.7L V8 - 03, 04, 05
      • 5.9L V8 - 03
