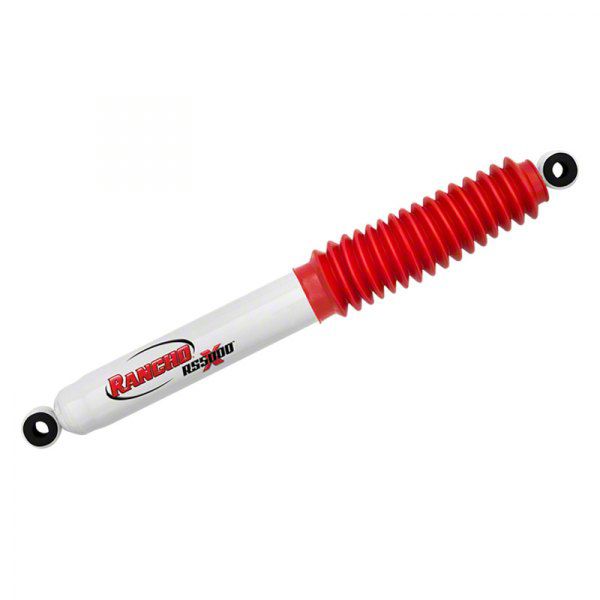

Rancho RS5000X Rear Shock for 3-Inch Lift (97-04 4WD Dakota)Find parts that fit my vehicle

Item DD2420
Product Image
275 Reviews
Our Price

$66.32

Military, Medical & First Responders $3.32 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

      • Packed With Innovative Features Deliver Improved Overall On- And Off-Road Handling And Performance
      • Exclusive Cross Tuned Technology Featuring Unique Rebound Valving System And Advanced Compression Phase
      • Minimizes Rough Ride With Progressive Engagement Valving Custom-Tuned For Each Vehicle
      • Strong And Durable 16mm Nitro-Carburized Piston Rod Resists Scuffs And Corrosion
      • Double-Welded Loops At Stress Areas For Enhanced Structural Integrity
      • 35mm Sintered Iron Piston For Improved Strength
      • Polyvinyl Protective Boot Included
      • Large Twin-Tube Body Filled With All-Weather Fluid For Cooler Operation
      • Capable Of Withstanding Internal Temperatures From -40 To 248 Degrees Fahrenheit
      • Polyurethane Rebound Bumper And Rubber Bushings Absorb Ride Harshness
      • Fluon-Banded Piston Enhances Responsiveness To Changing Road Conditions
      • Nitrogen Gas Pressurized To 150 PSI To Reduce Damping Performance Fade And Foaming
      • Custom-Tuned Compression Control Valve Regulates Fluid Transfer To Maintain Shock Motion Control
      • Low-Friction, Self-Lubricating Seal Retains Gas And Oil For Quicker Rebound And Smoother Compression
      • Application-Specific Piston Delivers Heightened Control Of Shock Motion
      • Includes Loop Bushing And Sleeve Mount With 12mm Sleeve Inner Diameter And 1 Inch Outer Length
      • Boot Included
      • Gas Charged Design
      • Painted Finish
      • Steel Body And Nitro-Carburized Steel Shaft
      • Twin Tube Internal Construction
      • Progressive Valving Type
      • Performance Grade
      • No Coil Over Springs Included
      • No Adjustable Damping Or Rebound
      • No Remote Reservoir Or Air Adjustable Features
      • No Bearing Plate Or Hydraulic Lockout
      • Includes Dust Shield Made Of Rubber
      • Shock Stroke 10.88 Inches (276.4 Mm), Extended Length 26.89 Inches (683 Mm)
      • Compressed Length 16.01 Inches (406.7 Mm), Travel Length 10.88 Inches (276.4 Mm)
      • Rod Diameter 0.622 Inches (15.8 Mm), Body Diameter 2.25 Inches (57.2 Mm)
      • Fits 97-04 4WD Dakota

      Description

      Advanced Suspension Performance. The Rancho RS5000X Rear Shock for 3-Inch Lift is engineered to enhance vehicle handling and ride quality both on and off road. Designed with proprietary Cross Tuned technology, this shock absorber provides a balance of comfort and control by reducing rough ride impacts and adapting to varied terrain conditions, making it essential for lifted 4WD trucks requiring reliable suspension performance.

      Construction and Appearance. Constructed with a robust steel twin-tube body featuring a nitro-carburized steel piston rod and a 35mm sintered iron piston, this shock is built for durability and resistance to corrosion. It includes a polyvinyl protective boot and is finished with a high-quality painted coat to withstand harsh environmental conditions while maintaining a clean appearance.

      Installation. Installation is straightforward, designed for direct replacement without the need for drilling or complex modifications. Experienced enthusiasts and professionals alike will find this shock fits seamlessly into the suspension system of compatible vehicles.

      Warranty. The shock absorber comes backed by a limited lifetime warranty, offering assurance of long-term reliability and quality.

      Application. Specifically designed for 1997 through 2004 Dodge 4WD Dakota models with a 3-inch rear lift, ensuring precise compatibility and performance tailored to this vehicle configuration.

      Rancho RS55010

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      4.7

      Customer Reviews (275)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Dakota

      • 2.5L I4 - 97, 98, 99, 00, 01, 02
      • 3.7L V6 - 04
      • 3.9L V6 - 97, 98, 99, 00, 01, 02, 03
      • 4.7L V8 - 00, 01, 02, 03, 04
      • 5.2L V8 - 97, 98, 99
      • 5.9L V8 - 00, 01, 02, 03
