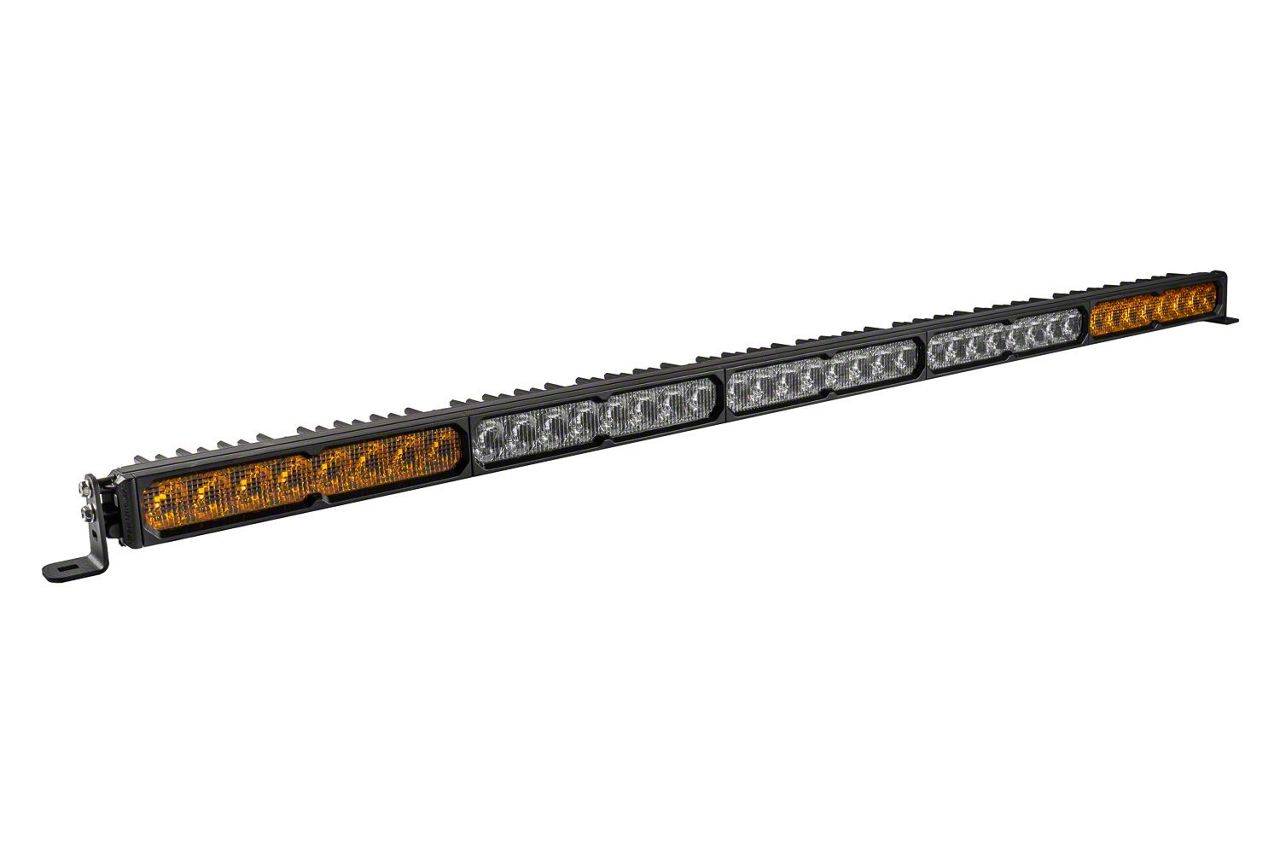

Diode Dynamics SS50 Sport Single Row LED Light Bar with SmartSelect Backlight; Dual-Color Combo (Universal; Some Adaptation May Be Required)
Item R213194
Our Price
$1,099.95
Military, Medical & First Responders
$55.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features & Specs
- _x000D_
- Patented TIR Optics For Maximum Efficiency And Output _x000D_
- Dual-Function Main Beam With SmartSelect Technology Without Extra Switches _x000D_
- Modern Welcome Sequence And Selectable Backlight Color With 8 Options Using SmartSelect Technology _x000D_
- Available In Sport And Pro Power Levels _x000D_
- Durable Aluminum Housing With ASTM-Standard Powdercoat Finish _x000D_
- Built For Extreme Conditions With IP69K Waterproof Rating And High Pressure Resistance _x000D_
- Limited Lifetime Warranty _x000D_
- Made In USA With Global Materials _x000D_
- Raw Lumens: Sport 18,440 Lm, Pro 62,720 Lm _x000D_
- Color Temperature Options: 3000K, 6000K _x000D_
- Beam Patterns Include Combo/Driving 60°x30°, SAE Driving 20°x12°, Flood 100°x80°, Spot 8°x8° _x000D_
- Power Consumption: Sport 212 Watts, Pro 295 Watts _x000D_
- Operating Voltage Ranges From 9 To 30 Volts _x000D_
- Current Draw At 12.8V: Sport 16.56 Amps, Pro 23.05 Amps _x000D_
- Polarity Specific _x000D_
- Operating Temperature -40°C To 85°C (-40°F To 185°F) _x000D_
- LED Emitters: Osram Ostar Projection Compact, Lumileds Automotive Grade LED _x000D_
- Connectors: Deutsch DT-P Input _x000D_
- Materials: Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets _x000D_
- Cooling Method: Passive Heatsink _x000D_
- Intrusion Rating: IP69K Waterproof With High Pressure Resistance _x000D_
- Product Dimensions: 2.01 X 51.63 X 2.46 Inches _x000D_
- Includes One LED Light Bar, One Wire Pigtail, And Universal Bracket Set _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Light Bar Width | 50 Inch and Up |
Description
Advanced Dual-Color Lighting. The Diode Dynamics SS50 Sport Single Row LED Light Bar with SmartSelect Backlight and Dual-Color Combo is engineered to deliver maximum visibility and superior control. Designed for off-road and performance vehicles, it offers configurable lighting segments that easily adapt to varying driving environments and conditions, providing precise, glare-free illumination exactly where it’s needed.
_x000D__x000D_Construction and Appearance. Built with a durable aluminum housing coated with an ASTM-standard powder coat finish, this light bar withstands harsh conditions. Its lens is made of premium polycarbonate, and high-quality automotive-grade LEDs from Osram and Lumileds ensure outstanding brightness and efficiency. It carries an IP69K waterproof rating, protecting against water and dust intrusion for reliable use in extreme environments.
_x000D__x000D_Installation. Installation requires basic tools and typically takes 30 to 60 minutes. The included universal bracket set allows for adaptable mounting; some adjustment may be necessary to fit certain vehicle configurations, but drilling is generally not required.
_x000D__x000D_Warranty. This product features a limited lifetime warranty, providing long-term reliability and support.
_x000D__x000D_Application. The SS50 Sport Dual-Color LED Light Bar is designed for universal fitment, with some adaptations potentially needed based on individual vehicle mounting points and setups.
Diode Dynamics DD8413
