Find LED Light Bars for your Ram 1500

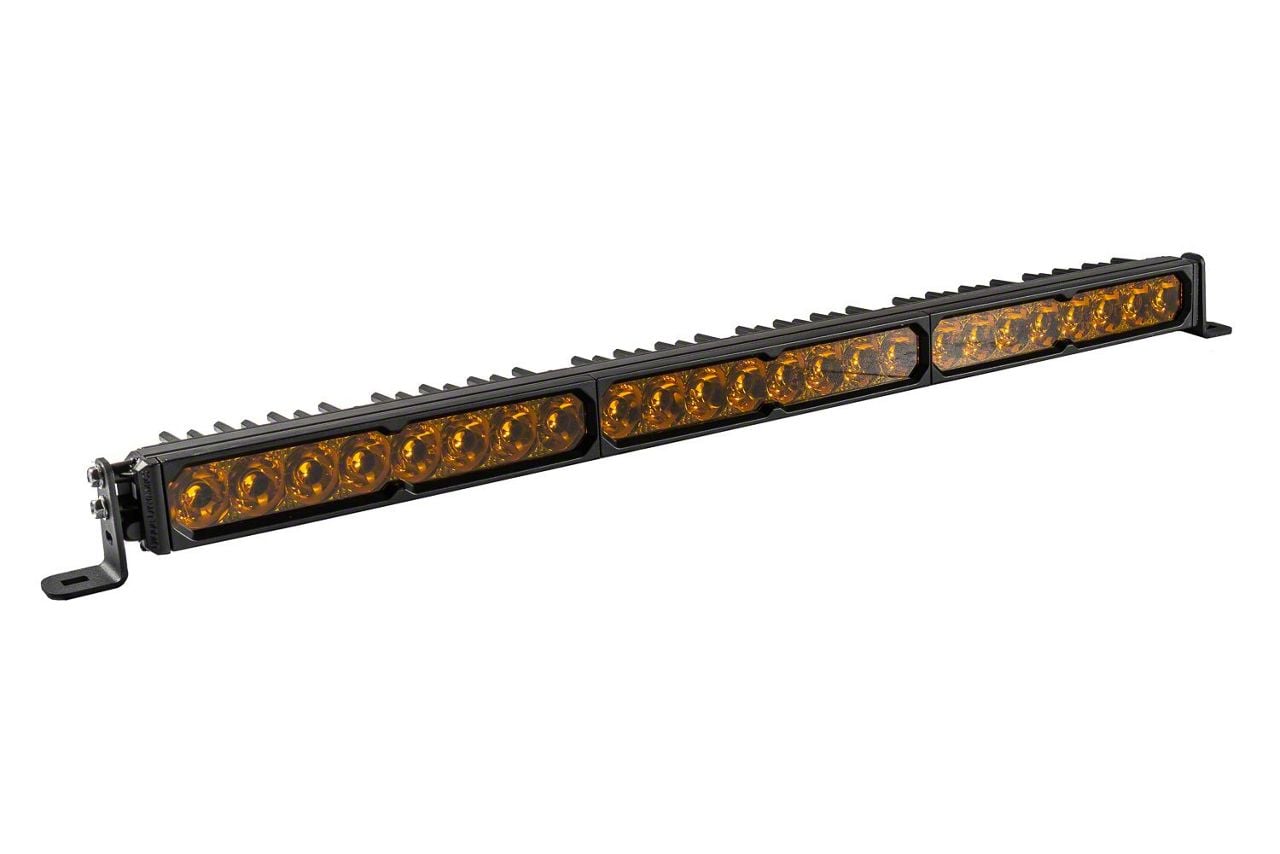

Diode Dynamics SS30 Sport Single Row LED Light Bar with Amber Backlight; Yellow Spot (Universal; Some Adaptation May Be Required)
Item R213147
Our Price
$599.95
Military, Medical & First Responders
$30.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features & Specs
- _x000D_
- Patented TIR Optics for Maximum Efficiency and Output. _x000D_
- Upgraded Beam Patterns Engineered for Real-World Performance. _x000D_
- True Amber Backlight Provides Unique Accent Lighting. _x000D_
- Available in Sport and Pro Power Levels. _x000D_
- Durable Aluminum Housing with ASTM-Standard Powdercoat Finish. _x000D_
- Built for the Extreme with IP69K Waterproof Rating. _x000D_
- Limited Lifetime Warranty. _x000D_
- Made in USA with Global Materials. _x000D_
- Peak Beam Intensity Ranges from 181,000 cd to 471,000 cd Depending on Optic and Power Level. _x000D_
- Illuminance Ranges from 57 Lux to 4,710 Lux at 10m. _x000D_
- Raw Output of 11,064 Lumens for Sport Models and 37,632 Lumens for Pro Models. _x000D_
- Output Color is 3000K Yellow. _x000D_
- Beam Angles Include Combo/Driving 60°x30°, SAE Driving 20°x12°, Flood 100°x80°, and Spot 8°x8°. _x000D_
- Power Consumption is 120 Watts for Sport Models and 165 Watts for Pro Models. _x000D_
- Operating Voltage Between 9 and 30 Volts. _x000D_
- Current Draw of 9.38 Amps @ 12.8V for Sport and 12.9 Amps for Pro Models. _x000D_
- Uses Automotive Grade OSRAM Ostar Projection Compact and Lumileds LED Emitters. _x000D_
- Deutsch DT-P Input Connector. _x000D_
- Construction Includes Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, and Stainless Steel Brackets. _x000D_
- Passive Cooling with Heatsink. _x000D_
- Operating Temperature from -40°C to 85°C (-40°F to 185°F). _x000D_
- Product Dimensions are 2.01 x 31.63 x 2.46 Inches. _x000D_
- Fits Universal Applications; Some Adaptation May Be Required. _x000D_
| Brand | Diode Dynamics |
| Light Bar Width | 30 to 39 Inch |
Description
High-Performance Lighting. The Diode Dynamics SS30 Sport Single Row LED Light Bar with Amber Backlight and Yellow Spot provides exceptional illumination using advanced TIR optics combined with high-intensity OSRAM and Lumileds LEDs. Its powerful, focused yellow light is optimized for adverse weather conditions, enhancing visibility and safety in fog, rain, or snow.
_x000D_Construction and Appearance. Built from durable materials including aluminum PCBs, polycarbonate lenses, and aluminum heatsinks, the light bar features an ASTM-standard powder coat finish for corrosion resistance. The rugged design includes stainless steel brackets and a fully encapsulated housing with an IP69K waterproof rating, ensuring extreme durability and reliability.
_x000D_Installation. Installation typically requires 30 to 60 minutes and depends on a basic toolset. The light bar comes with universal mounting brackets, though minor adaptation may be necessary depending on the vehicle application.
_x000D_Warranty. This light bar is backed by a limited lifetime warranty, guaranteeing long-term performance and support.
_x000D_Application. Designed to fit universal applications; some adaptation may be required. It is engineered for broad compatibility with off-road vehicles and automotive lighting setups.
Diode Dynamics DD8263
