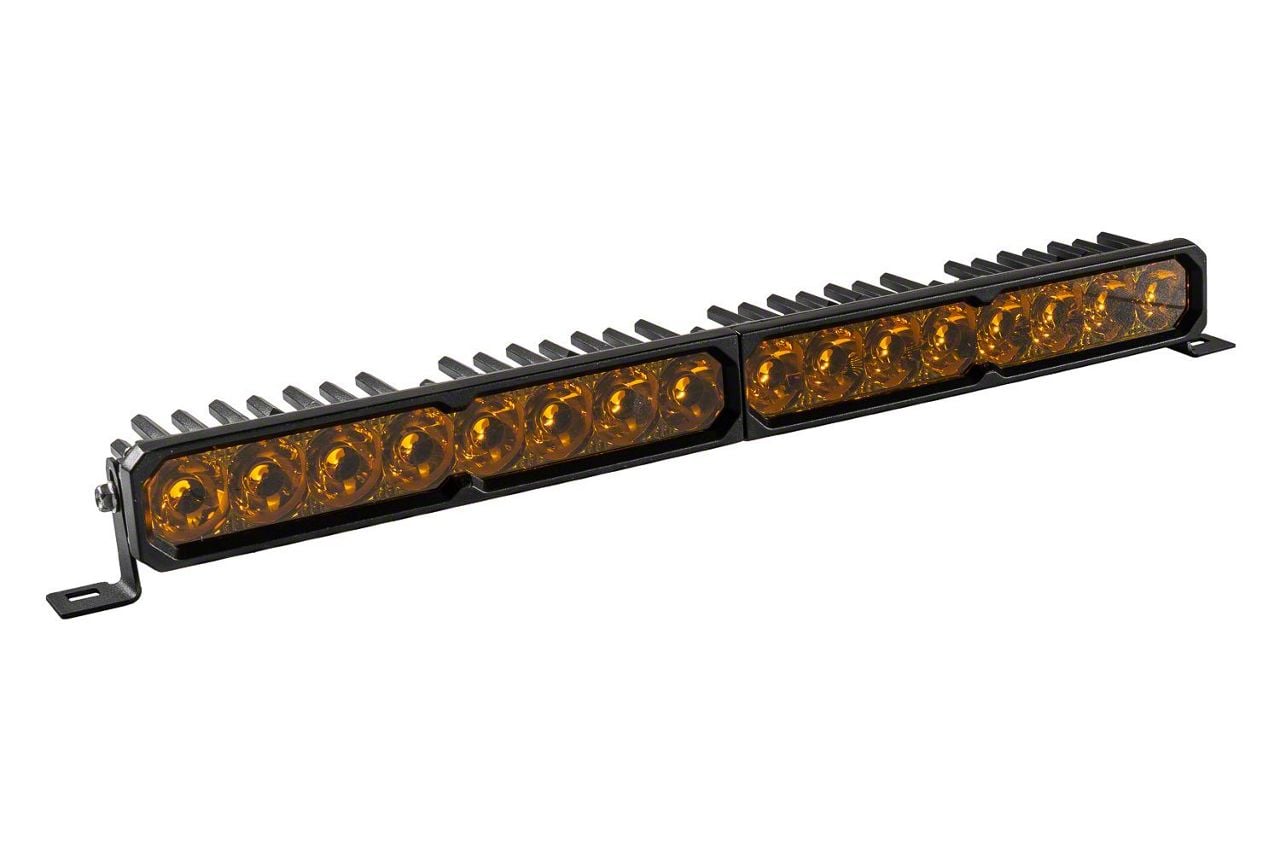

Diode Dynamics SS20 Sport Single Row LED Light Bar with Amber Backlight; Yellow Spot (Universal; Some Adaptation May Be Required)

Item R213123
Product Image
Our Price

$399.95

Military, Medical & First Responders $20.00 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A

      Features & Specs

        _x000D_
      • Patented TIR optics for maximum efficiency and output, eliminating glare and wasted light.
        • _x000D_
      • Upgraded beam patterns engineered for real-world performance, including Combo/Driving (60°x30°), SAE Driving (20°x12°), Flood (100°x80°), and Spot (8°x8°) angles.
        • _x000D_
      • True amber backlight provides unique accent lighting, enhancing visibility in fog, rain, and snow.
        • _x000D_
      • Available in Sport and Pro power levels with peak beam intensities ranging from 128,000 to 336,000 candela depending on model.
        • _x000D_
      • Durable aluminum housing with ASTM-standard powdercoat finish for long-lasting corrosion resistance.
        • _x000D_
      • Built for extreme conditions with an IP69K waterproof rating for protection against high-pressure water and dust.
        • _x000D_
      • Limited lifetime warranty for durable performance and customer satisfaction.
        • _x000D_
      • Made in the USA with global materials.
        • _x000D_
      • Illuminance ranges from 40 lux to 3,360 lux at 10 meters.
        • _x000D_
      • Raw output between 7,376 and 25,088 lumens depending on model.
        • _x000D_
      • Power consumption: Sport models 76.5 watts, Pro models 105 watts.
        • _x000D_
      • Operating voltage range from 9 to 30 volts.
        • _x000D_
      • Operating temperature range from -40°C to 85°C (-40°F to 185°F).
        • _x000D_
      • High-quality LED emitters including Osram Ostar Projection Compact and Lumileds automotive-grade LEDs.
        • _x000D_
      • Features passive cooling with an aluminum heatsink for efficient heat dissipation.
        • _x000D_
      • Connector type: Deutsch DT input.
        • _x000D_
      • Includes one wire pigtail and universal bracket set.
        • _x000D_
      • Fits universal; some adaptation may be required for specific vehicle applications.
        • _x000D_

      Description

      HIGH-PERFORMANCE LIGHTING. The Diode Dynamics SS20 Sport Single Row LED Light Bar with Amber Backlight; Yellow Spot delivers intense, focused illumination optimized for off-road and extreme conditions. It produces a powerful amber-yellow beam designed to improve visibility and safety in fog, rain, and snow. This compact, single-row light bar is ideal for enthusiasts seeking superior performance and reliability.

      _x000D__x000D_

      CONSTRUCTION AND APPEARANCE. Built with a durable aluminum housing featuring an ASTM-standard powdercoat finish, this light bar offers long-lasting protection against corrosion and environmental damage. It incorporates patented Total Internal Reflection optics to maximize light output efficiency and includes a fully illuminated amber backlight for distinctive accent lighting. The unit utilizes high-quality Osram and Lumileds automotive-grade LEDs, covered by a polycarbonate lens, and cooled passively via an aluminum heatsink.

      _x000D__x000D_

      INSTALLATION. Installation typically takes between 30 to 60 minutes using standard hand tools. The included universal mounting hardware is designed for adaptability, generally requiring no drilling unless specified by vehicle-specific installation needs.

      _x000D__x000D_

      WARRANTY. This product comes with a limited lifetime warranty, ensuring reliable performance and customer satisfaction over time.

      _x000D__x000D_

      APPLICATION. Fits universal; some adaptation may be required for specific vehicle configurations.

      Diode Dynamics DD8227

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Questions & Answers

      No questions about this product yet. Ask the First Question
