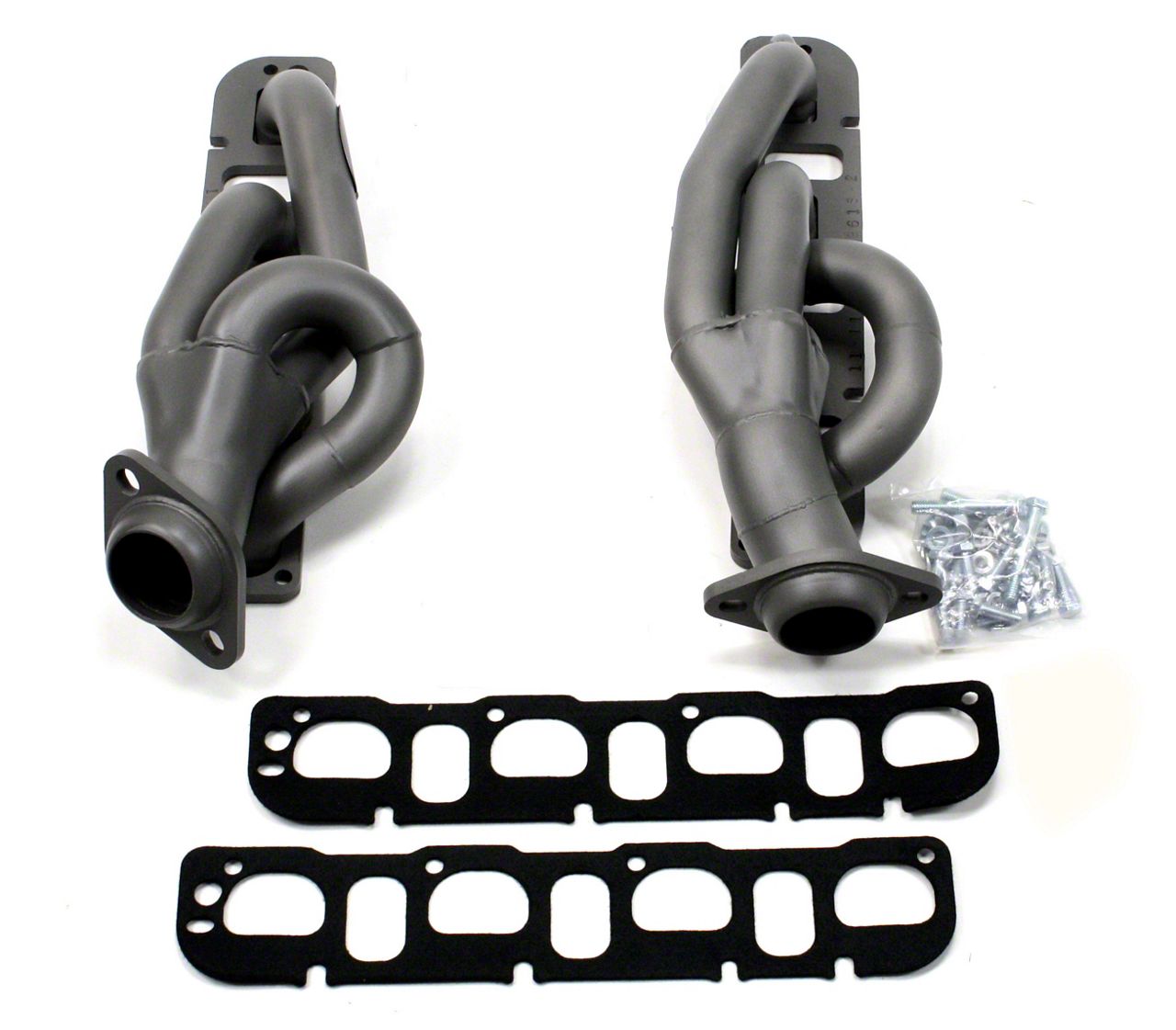

JBA 1-5/8-Inch Shorty Headers; Titanium Ceramic (09-18 5.7L RAM 1500)

Item R111554
Verify parts fit and get product recommendations.
Ram 1500 Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Our Price

$957.45 (kit)

FREE Shipping Market Price $1,101.99 You Save 13% ($144.54) Up to 10% off for Military & First Responders! See Details

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

      Product Videos

      The 1-5/8-inch shorty headers that we have here today will be a great choice for all 2009 to 2018 5.7 RAM owners who might be looking to pick up a little bit more power and sound, but without having to commit to a much more difficult to install, much more expensive set of long tube headers. Now, this particular set of shorties will feature a very cool-looking titanium-ceramic coating around that stainless steel build for the ultimate in corrosion resistance that's currently hovering in that high $800 range. Install, my friends, is going to get a knuckle-busting two out of three wrenches on the old difficulty meter here and take you a few hours to complete from start to finish.So shorty headers have long since been a popular alternative to long tube headers for a couple of big reasons. They're a little bit more affordable, they're typically emissions-friendly as you're not touching any of the cats, hence the CARB certification here. And then finally they're much easier to install. Now, will long tube headers ultimately deliver bigger gains, absolutely. But again, if you're looking to make small improvements to both power and sound, the shorties that we have here today will certainly help get you there.So getting to the actual shorties that we're talking about here today, and the first thing I do want to mention is the 1-5/8-inch primary diameter, which by the way, is one of the most popular available for the 5.7 Hemi. Now I will say typically primary size is gonna have a little bit more of an impact on a long tube application, but it's always a good thing to know. Now you're also gonna be looking at CNC laser-cut flanges at the head side here, along with the two-bolt flange, there they are, for your 2.5-inch collector to connect to your factory cat pipes. Now this particular kit does also kick in brand new hardware and gaskets to get everything installed properly. Materials, again, you're looking at that full stainless steel build here throughout, and in this case, it's been taken a step further and given a very unique looking titanium-ceramic coating to protect that stainless from corrosion, but ultimately will deliver some thermal benefits as well. Now that's gonna help keep the engine bay temps down slightly compared to maybe what a raw stainless header or a chrome option might deliver. Now, speaking of which we do have a few different finish options currently available here on the site for this particular generation RAM, so be sure to check those out before pulling the trigger.Now as far as your installation is concerned, well, this is obviously gonna be a bit more challenging overall, so figure a very strong two out of three wrenches on the old difficulty meter, and I would say at least a couple of hours to complete from start to finish, maybe a little bit more if this is your first time tackling this job. But at the end of the day, if you're looking to gain a little bit more power and a little bit more sound out of that 5.7 be sure to check out some of our shorty header options right here at americantrucks.com.

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

      • Improves Horsepower, Torque, and Throttle Response
      • Produces a High-Performance Sound
      • Short Tube Header Style
      • Without Catalytic Converters
      • Mid-Pipe Required
      • With 1.625-Inch Primary Tube Outside Diameter
      • Has a Collector Diameter of 2.50 Inches
      • Stainless Steel Construction
      • Titanium Ceramic Coated Header Finish
      • Can Be Used in Most Driving Applications
      • CARB EO Number - D-57-35
      • Made to Fit 2009-2018 5.7L RAM 1500 Models

      Description

      Enhances Engine Performance. Adding these Titanium Ceramic JBA 1-5/8-Inch Shorty Headers will let you experience an improved engine performance. These shorty headers are equipped with 1.625-inch primary tubes that help increase airflow to your engine. As a result, your truck is able to achieve higher horsepower and torque, as well as better throttle response.

      High-Performance Sound. Installing these shorty headers will let your RAM produce a high-performance sound. With their mandrel-bent primary tubes, these shorty headers serve as great replacements for your restrictive stock manifolds.

      Stainless Steel Construction. For long-lasting durability, these shorty headers are made of stainless steel. This material allows them to resist warping even when exposed to extreme temperatures. Each header is also completed with a titanium ceramic coating for increased protection against rust and corrosion.

      CARB-Certified. These shorty headers are CARB-certified at D-57-35. This means that these products are safe and legal to use within California.

      Application. These Titanium Ceramic 1-5/8-Inch Shorty Headers are made to fit all 2009-2018 5.7L RAM 1500 models.

      Fitment:

      Details

      JBA 1961S-2JT

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      What's in the Box

      • (1) Driver Side Header
      • (1) Passenger Side Header
      • (2) Head Flange Gaskets
      • (21) Bolts
      • (21) Lock Washers
      • (8) Flat Washers
      • (4) Nuts
      • (1) CARB EO Sticker
      3.9

      Customer Reviews (23)

        Questions & Answers

        10 More Questions

        Will It Fit My Ram 1500

        • 5.7L V8 - 09, 10, 11, 12, 13, 14, 15, 16, 17, 18
