Find LED Light Bars for your Ram 1500

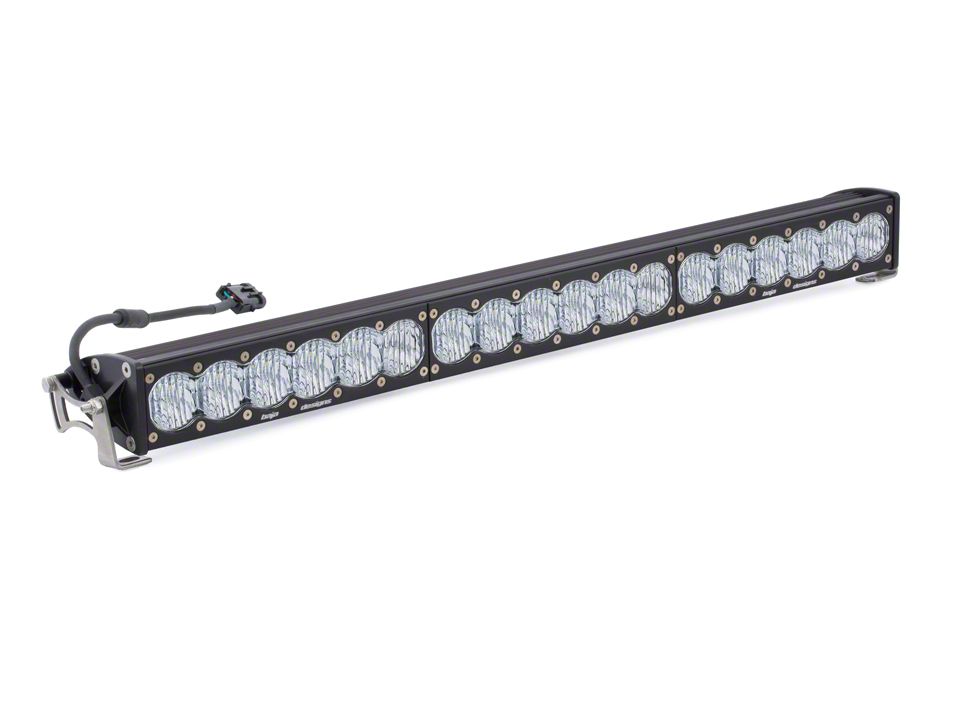

Baja Designs 30-Inch OnX6 LED Light Bar; Wide Driving Beam (Universal; Some Adaptation May Be Required)

Item R104182
Product Image
162 Reviews of Baja Designs
Our Price

$1,132.95 each

Military, Medical & First Responders $56.65 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

      • Depth 4.29 Inches
      • Height 2.69 Inches
      • Length 30 Inches
      • Weight 11.45 Pounds
      • Amperage Rating 21.7 Amps High, 17.1 Amps Low
      • Average Rated Life 49,930 Hours
      • Beam Pattern Wide Cornering
      • Bezel Material Billet Machined Aluminum
      • Brightness 31,910 Lumens High, 25,450 Lumens Low
      • Description Straight Wide Cornering Clear
      • Housing Color Black
      • Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
      • Lens Color Clear
      • Lens Material Hardcoated Polycarbonate
      • Light Quantity 1
      • Lighting Modes High Beam, Low Beam
      • Lighting Quantity 18
      • Lighting Technology LED
      • Lighting Type Forward Projecting
      • Mounting Hardware Description Mounting Brackets
      • Mounting Hardware Included Yes
      • Mounting Hardware Material Stainless Steel
      • Overvoltage Protection Built-In
      • Product Type OnX6 Plus 30 Inch LED Light Bar
      • Wattage 281 Watts High, 225 Watts Low
      • Wiring Harness Description Hi-Low Dongle
      • Wiring Harness Included No
      • Standards Compliance Exceeds MIL-STD810G Mil-Spec Testing
      • Standards Compliance IK10 Compliant Mechanical Impact Testing
      • Standards Compliance IP69K Waterproof Up To 9 Feet Pressure Washable
      • Fits Universal, Some Adaptation May Be Required

      Description

      High-Performance Lighting. The Baja Designs 30-Inch OnX6 LED Light Bar with Wide Cornering Beam provides exceptional illumination using advanced LED technology and a forward projecting beam pattern. Designed for both off-road and on-road applications, it significantly enhances visibility and safety in various driving conditions.

      Construction and Appearance. Built with aircraft grade aluminum and finished with mil-spec hard anodizing, the housing ensures long-lasting durability and resistance to harsh environments. The light bar features a billet machined aluminum bezel and a clear hardcoated polycarbonate lens that protects the LEDs while allowing optimal light transmission.

      Installation. Installation is straightforward with the included stainless steel mounting brackets. In most cases, no drilling is required, allowing for easy mounting on a wide range of vehicles.

      Warranty. This product comes with a limited lifetime warranty, offering long-term assurance of its quality and performance.

      Application. Fits universal applications, although some adaptation may be necessary to accommodate specific vehicle models.

      Baja Designs 453004

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 1 Hour

      Difficulty Level:

      Simple installation for anyone.

      Installation Guides

      What's in the Box

      • (1) LED Light Bar
      • (1) Hardware Kit
      4.7

      Reviews of Baja Designs Lights Products (162)

      Questions & Answers

      No questions about this product yet. Ask the First Question
