Find LED Light Bars for your Ram 1500

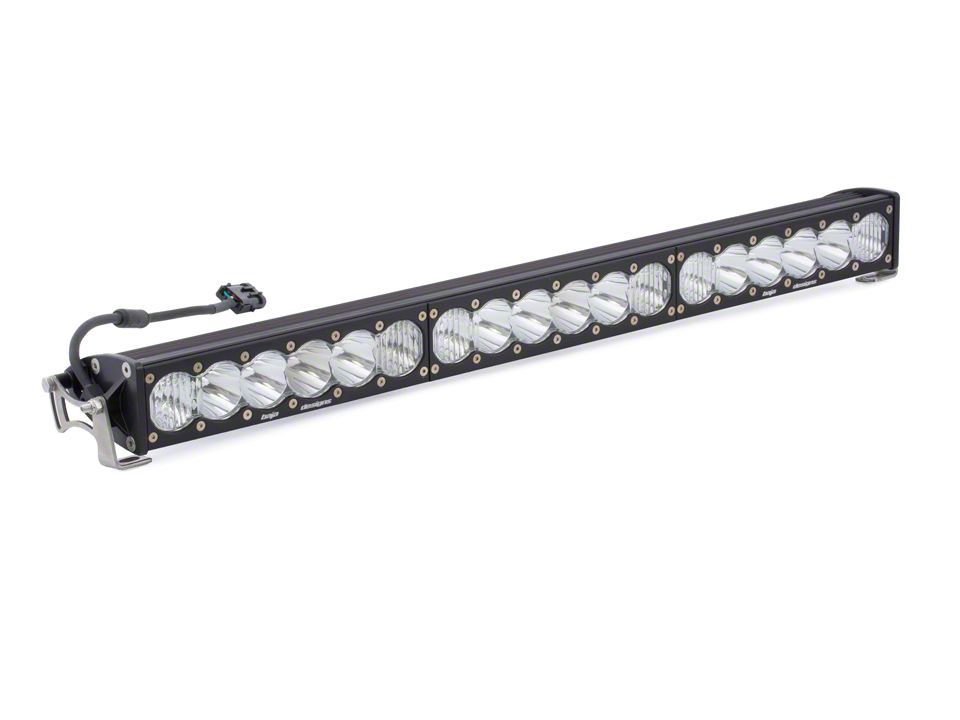

Baja Designs 30-Inch OnX6 LED Light Bar; Driving/Combo Beam (Universal; Some Adaptation May Be Required)

Item R104181
Product Image
161 Reviews of Baja Designs
Our Price

$1,132.95 each

Military, Medical & First Responders $56.65 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Depth 4.29 Inches
        • _x000D_
      • Height 2.69 Inches
        • _x000D_
      • Length 30 Inches
        • _x000D_
      • Weight 11.45 Pounds
        • _x000D_
      • Amperage Rating 21.7 Amps High, 17.1 Amps Low
        • _x000D_
      • Average Rated Life 49,930 Hours
        • _x000D_
      • Beam Pattern Driving/Combo
        • _x000D_
      • Bezel Material Billet Machined Aluminum
        • _x000D_
      • Brightness 31,910 Lumens High, 25,450 Lumens Low
        • _x000D_
      • Description Straight; Driving/Combo; Clear Lens
        • _x000D_
      • Housing Color Black
        • _x000D_
      • Housing Material Aircraft Grade Aluminum With Mil-Spec Hard Anodize
        • _x000D_
      • Lens Color Clear
        • _x000D_
      • Lens Material Hardcoated Polycarbonate
        • _x000D_
      • Light Quantity 1
        • _x000D_
      • Lighting Modes High Beam/Low Beam
        • _x000D_
      • Lighting Quantity 18 LEDs
        • _x000D_
      • Lighting Technology LED
        • _x000D_
      • Lighting Type Forward Projecting
        • _x000D_
      • Mounting Hardware Description Mounting Brackets
        • _x000D_
      • Mounting Hardware Included Yes
        • _x000D_
      • Mounting Hardware Material Stainless Steel
        • _x000D_
      • Overvoltage Protection Built-In
        • _x000D_
      • Product Type OnX6 Plus 30 Inch LED Light Bar
        • _x000D_
      • Wattage 281 Watts High, 225 Watts Low
        • _x000D_
      • Wiring Harness Included No
        • _x000D_
      • Standards Compliance Exceeds MIL-STD810G, IK10 Compliant, IP69K Waterproof Up To 9 Feet Pressure Washable
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      High-Performance Off-Road Lighting. The Baja Designs 30-Inch OnX6 LED Light Bar with a Driving/Combo Beam delivers exceptional illumination for diverse off-road and utility applications. Designed to provide superior brightness and clarity, this light bar enhances visibility and safety by combining focused spot beams with wide driving patterns for versatile trail and road use.

      _x000D__x000D_

      Construction and Appearance. Constructed from aircraft-grade aluminum with a durable mil-spec hard anodize finish, the housing provides rugged toughness and corrosion resistance. The clear hardcoated polycarbonate lens protects against impacts and environmental elements while maintaining optical clarity. The billet machined aluminum bezel offers both structural integrity and a refined aesthetic.

      _x000D__x000D_

      Installation. Installation is straightforward with included stainless steel mounting brackets, designed to fit a broad range of applications. Basic mounting typically requires no drilling, simplifying the fitting process for most universal installations.

      _x000D__x000D_

      Warranty. This product is backed by a limited lifetime warranty, providing long-lasting purchase protection.

      _x000D__x000D_

      Application. Fits universal applications; some adaptation may be required to ensure optimal fit and function.

      Baja Designs 453003

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 1 Hour

      Difficulty Level:

      Simple installation for anyone.

      Installation Guides

      What's in the Box

      • (1) OnX6 30” LED Light Bar
      • (1) Set of Mounting Brackets
      • (1) Rock Guard
      • (1) Installation Instructions
