Find LED Light Bars for your Ram 1500

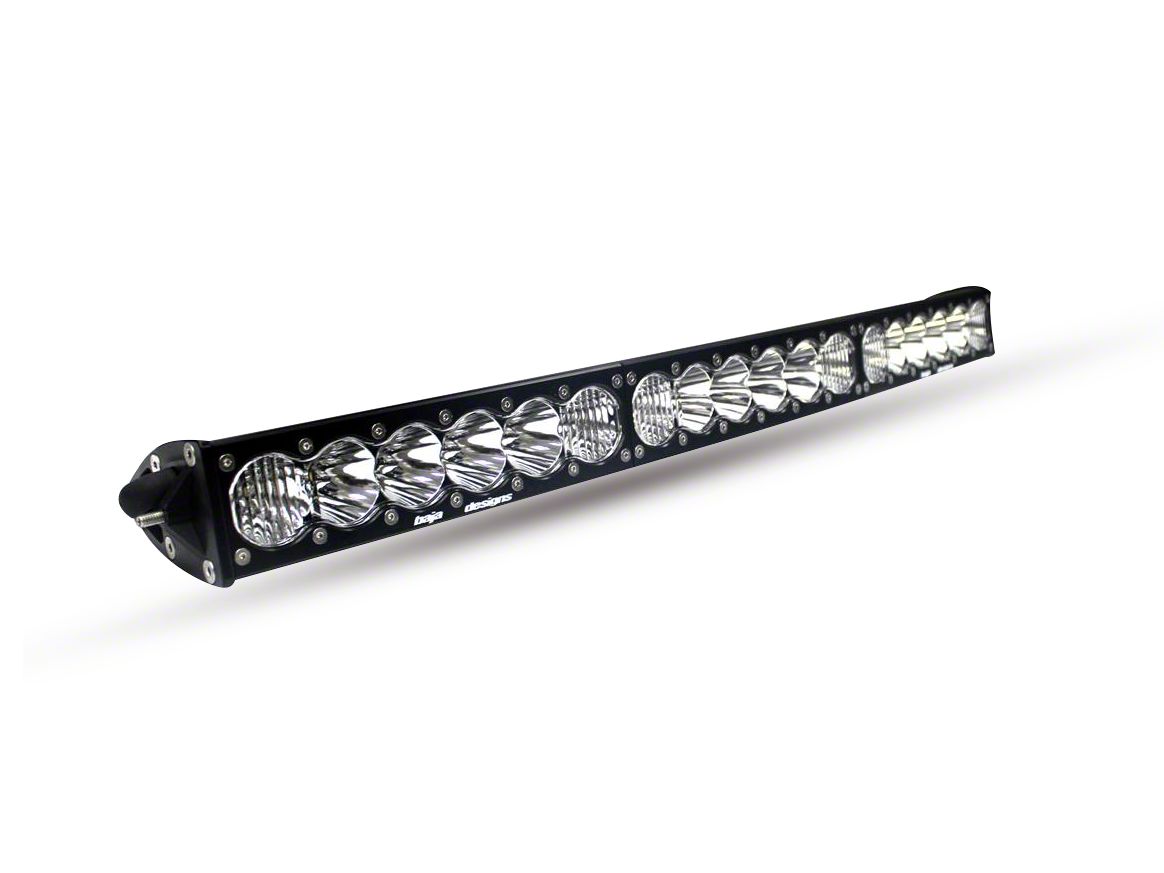

Baja Designs 30-Inch OnX6 Arc LED Light Bar; Driving/Combo Beam (Universal; Some Adaptation May Be Required)

Item R104206
Product Image
161 Reviews of Baja Designs
Our Price

$1,338.95 pair

Military, Medical & First Responders $66.95 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Depth 4.29 Inches
        • _x000D_
      • Height 2.69 Inches
        • _x000D_
      • Length 30 Inches
        • _x000D_
      • Weight 11.45 Pounds
        • _x000D_
      • Amperage Rating 21.7 Amps High 17.1 Amps Low
        • _x000D_
      • Average Rated Life 49,930 Hours
        • _x000D_
      • Beam Pattern Driving Combo
        • _x000D_
      • Bezel Material Billet Machined Aluminum
        • _x000D_
      • Brightness 32,070 Lumens High 25,610 Lumens Low
        • _x000D_
      • Description Arc Driving Combo Clear
        • _x000D_
      • Housing Color Black
        • _x000D_
      • Housing Material Aircraft Grade Aluminum With Mil-Spec Hard Anodize
        • _x000D_
      • Lens Color Clear
        • _x000D_
      • Lens Material Hardcoated Polycarbonate
        • _x000D_
      • Light Quantity 1
        • _x000D_
      • Lighting Modes High Beam Low Beam
        • _x000D_
      • Lighting Quantity 18
        • _x000D_
      • Lighting Technology LED
        • _x000D_
      • Lighting Type Forward Projecting
        • _x000D_
      • Mounting Hardware Description Mounting Brackets
        • _x000D_
      • Mounting Hardware Included Yes
        • _x000D_
      • Mounting Hardware Material Stainless Steel
        • _x000D_
      • Overvoltage Protection Built-In
        • _x000D_
      • Product Type OnX6+ 30 Inch Arc LED Light Bar
        • _x000D_
      • Wattage 278 Watts High 222 Watts Low
        • _x000D_
      • Wiring Harness Description Hi-Low Dongle Compatible
        • _x000D_
      • Wiring Harness Included No
        • _x000D_
      • Standards Compliance Durability Exceeds MIL-STD810G Mil-Spec Testing
        • _x000D_
      • Standards Compliance Impact Resistance IK10 Compliant Mechanical Impact Testing
        • _x000D_
      • Standards Compliance Water Resistance IP69K Waterproof Up To 9ft Pressure Washable
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      Leading Performance Lighting. The Baja Designs 30-Inch OnX6 Arc LED Light Bar with Driving/Combo Beam offers elite off-road illumination featuring a high-speed spot reflector and next-generation LEDs. It delivers superior brightness and long-range visibility, enhancing safety and reducing eye fatigue under various trail conditions.

      _x000D_

      Construction and Appearance. This light bar is built with a rugged housing crafted from aircraft-grade aluminum with a Mil-Spec hard anodized finish for exceptional durability and corrosion resistance. It features a clear, hardcoated polycarbonate lens and a billet machined aluminum bezel finished in black, providing a sleek and professional appearance.

      _x000D_

      Installation. Installation is straightforward with included stainless steel mounting brackets; drilling is generally not required, making this light bar suitable for retrofit installations on a variety of vehicles.

      _x000D_

      Warranty. The product is backed by a limited lifetime warranty for comprehensive purchase protection.

      _x000D_

      Application. Designed for universal fitment, some adaptation to vehicle-specific mounting points and wiring may be necessary. The wiring harness is sold separately and is compatible with a Hi-Low dongle.

      Baja Designs 523003

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 1 Hour

      Difficulty Level:

      Light to Moderate mechanical skill required.

      Installation Guides

      What's in the Box

      • (1) LED Light Bar
      • (1) Instruction Manual
      • (1) Mounting Hardware
