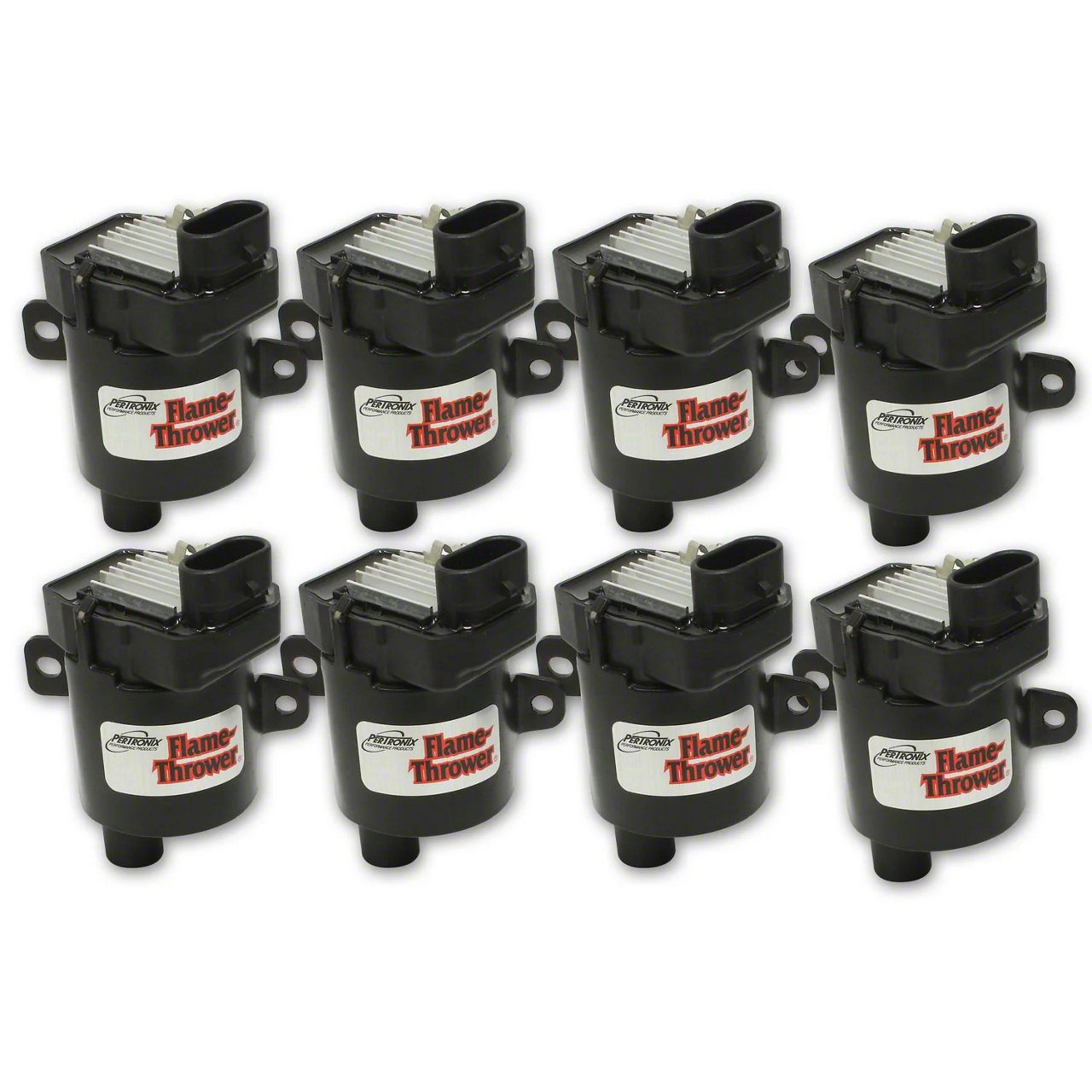

PerTronix Flame-Thrower Coils (01-19 6.0L Sierra 3500 HD)Find parts that fit my vehicle

Item SHG51007
Product Image
4 Reviews of PerTronix
Our Price

$432.63

Military, Medical & First Responders $21.63 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

        _x000D_
      • Coils Feature Advanced Bobbin Technology With Highly Specialized Silicone Magnetic Steel Cores
        • _x000D_
      • Optimized Coil Design Yields At Least 10-15 Per Cent More Energy Available For The Spark Than The Most Common OEM Coils
        • _x000D_
      • Specialized High Temperature Epoxy Resists Shock And Vibration While Increasing Thermal Conductivity
        • _x000D_
      • Coils Offer A Direct Performance Bolt On Upgrade
        • _x000D_
      • Direct OEM Replacement Form Factor And Connections Means Simple Installation
        • _x000D_
      • Available Individually Or In Sets Of 8
        • _x000D_
      • Late Model Coil-On-Plug/Coil Near Plug Series Are Optimized To Improve The Spark Capabilities Of Late Model Ignition Systems
        • _x000D_
      • Coils Are Epoxy Molded To Prevent Premature Failure From Moisture Or Winding Fatigue
        • _x000D_
      • Superchargers, Turbo Chargers, And Nitrous All Increase The Demand On The Ignition System
        • _x000D_
      • Whether It's A Performance Application With Add-Ons Or An Increase In Power For The Stock Ignition, Flame Thrower Coils Won't Disappoint
        • _x000D_
      • Maximum Voltage: 35000
        • _x000D_
      • Primary Resistance: 1 Ohms
        • _x000D_
      • Voltage: 12
        • _x000D_
      • Coil Type: Coil Pack
        • _x000D_
      • Color: Black
        • _x000D_
      • Finish: Matte
        • _x000D_
      • Ignition Type: Computer Controlled
        • _x000D_
      • Coil Shape: Round
        • _x000D_
      • Mounting Position: Factory
        • _x000D_
      • Mounting Bracket Included: Integrated
        • _x000D_
      • Mounting Hardware Included: No
        • _x000D_
      • Ballast Resistor Included: No
        • _x000D_
      • Coil Wire Attachment: Female/Socket
        • _x000D_
      • Coil Wire Included: No
        • _x000D_
      • Mount Type: Factory
        • _x000D_
      • Requires External Resistor: No
        • _x000D_
      • Coil Internal Construction: Epoxy
        • _x000D_
      • Primary Inductance: 4.5
        • _x000D_
      • Secondary Resistance: 11600 Ohms
        • _x000D_
      • Turns Ratio: 73:1
        • _x000D_
      • Grade Type: Stock Replacement
        • _x000D_
      • Fits 01-19 6.0L Sierra 3500 HD
        • _x000D_

      Description

      High-Performance Ignition Coils. The PerTronix Flame-Thrower Coils deliver increased spark energy with advanced bobbin technology and specialized magnetic steel cores. These coils improve ignition system performance for enhanced engine efficiency and power, especially under demanding conditions.

      _x000D__x000D_

      Durable Construction And Finish. Manufactured with a high-temperature epoxy molding process, these coils resist shock, vibration, and moisture intrusion. They feature a matte black finish with integrated mounting brackets for a direct OEM replacement fit and professional appearance.

      _x000D__x000D_

      Technical Specifications. Designed with precise electrical properties including a primary resistance of 1 Ohm, primary inductance of 4.5, secondary resistance of 11,600 Ohms, and a turns ratio of 73:1. Maximum voltage rating is 35,000 volts, ensuring reliable ignition performance.

      _x000D__x000D_

      Simple Installation. Constructed as direct bolt-on replacements with OEM form and connector compatibility, these coils require no modifications or drilling, ensuring straightforward installation for professionals and enthusiasts alike.

      _x000D__x000D_

      Warranty Coverage. This product includes a limited one-year warranty covering defects in materials and workmanship, providing assurance of quality and reliability.

      _x000D__x000D_

      Application. Specifically fits 2001 to 2019 6.0L Sierra 3500 HD engines equipped with coil-on-plug ignition systems, delivering reliable performance across this range.

      PerTronix 30848

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      4.3

      Reviews of PerTronix Engine Products (4)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Sierra 3500

      • 6.0L V8 - 01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19
